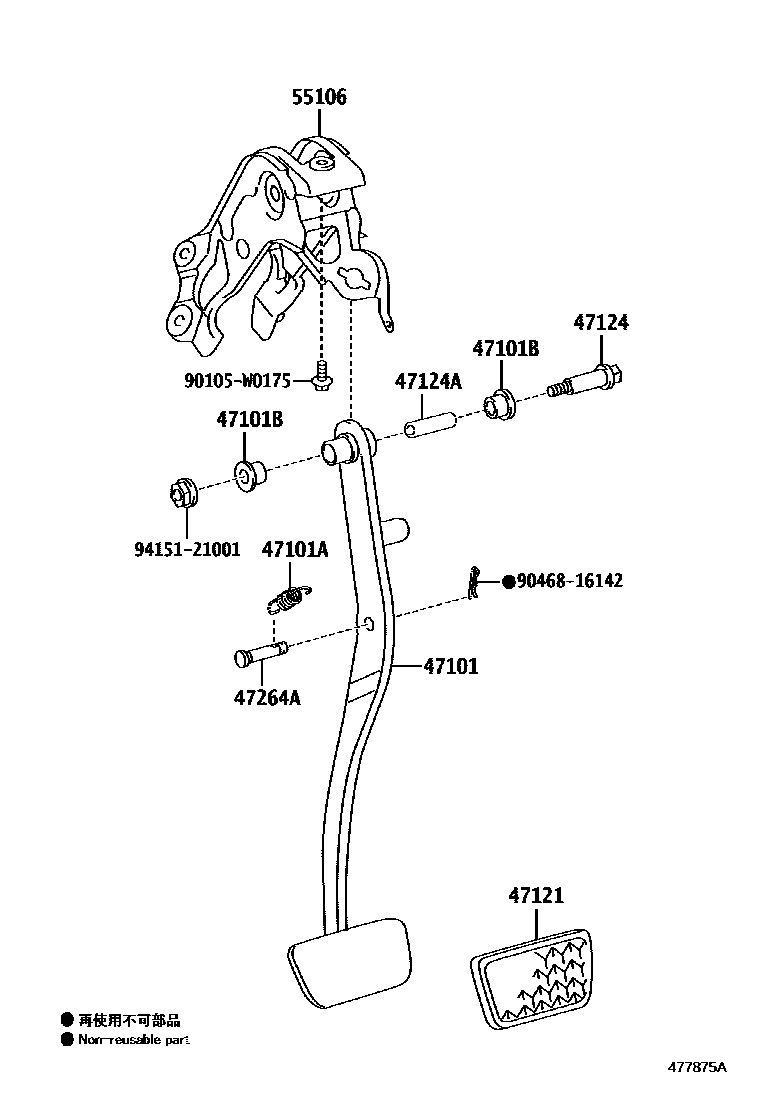

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0D100iKSP130,NLP130,NSP130..RHD..MTM201107-201407

main47101-0D110iNSP130..RHD..CVFC201107-201407

main47101-0D230iKSP130,NLP130,NSP130..LHD..(5F,6F)201107-201407

main47101-0D240iNLP130,NSP130..LHD..(6FS,CVFC)201107-201407

main47101-0D280iNHP130..LHD201204-201407

main47101-52330iNHP130..RHD201204-201407

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iKSP130,NHP130,NLP130,NSP130201107-201303

main90506-14088iKSP130,NHP130,NLP130,NSP130201304

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKSP130,NHP130,NLP130,NSP130201107

47121PAD, BRAKE PEDAL

main31321-0D030iKSP130,NLP130,NSP130..LHD..(5F,6F)201107-201407

main31321-52010iKSP130,NLP130,NSP130..RHD..MTM201107-201407

main47121-0D040iNLP130,NSP130..LHD..(6FS,CVFC)201107-201407

main47121-52010iNHP130;NSP130..RHD..CVFC201107-201407

47124SHAFT, BRAKE PEDAL

main90101-10039iNHP130..RHD201204

main90105-10444iKSP130,NLP130,NSP130201107

main90105-10538iNHP130..LHD201204

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNHP130..RHD;KSP130,NLP130,NSP130201107

main90387-10105iNHP130..LHD201204

47264APIN(FOR PUSH ROD)

main90249-08051iNHP130;KSP130,NLP130,NSP130..RHD201107

main90249-08308iKSP130,NLP130,NSP130..LHD201107

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D100iKSP130,NLP130,NSP130..LHD201107

main55106-0D110iKSP130,NLP130,NSP130..RHD201107

main55106-0D150iNHP130..LHD201204

main55106-52180iNHP130..RHD201204

90105W0175

main90105-W0175

9046816142

main90468-16142

9415121001

main94151-21001

11 parts on this diagram · 4 diagrams in section
