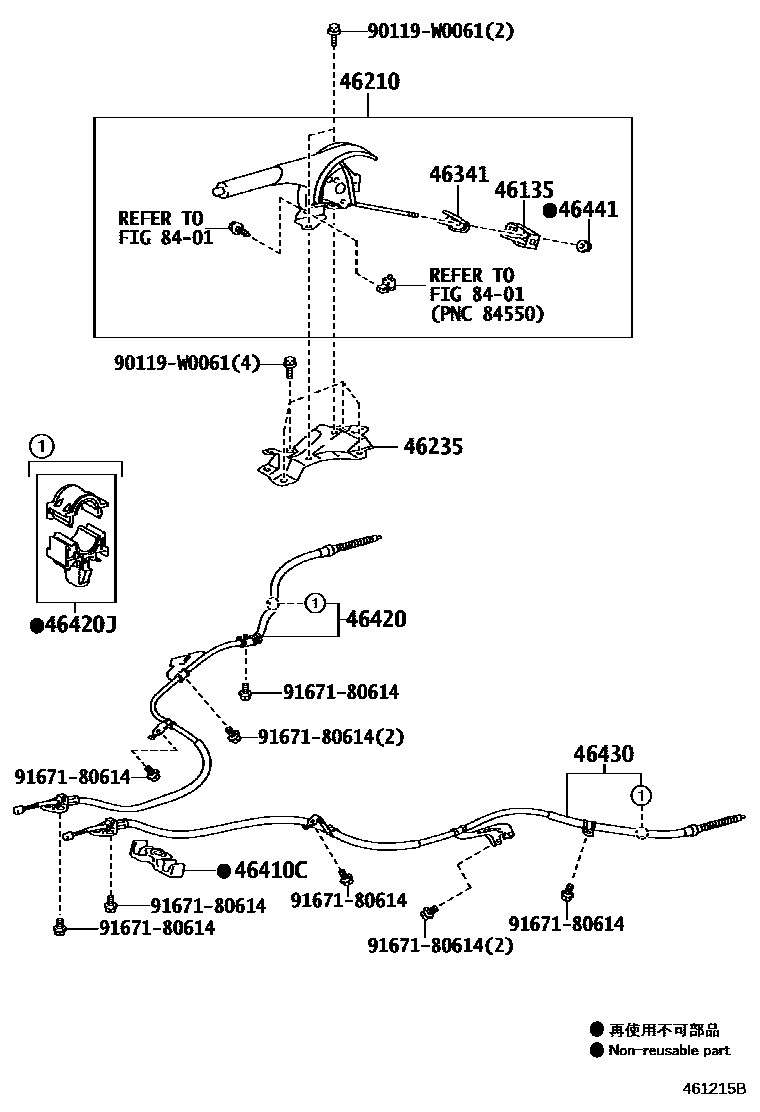

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D020iKSP130,NHP130,NLP130,NSP130201107

46210LEVER ASSY, PARKING BRAKE

main46210-0D210-C0iKSP130,NLP130,NSP130..STD201107-201407

BLACK,TRIM1#

sub46210-0D211

main46210-0D210-C0iKSP130,NLP130,NSP130..STD201107-201407

ENTRY GRADE,BLACK,TRIM1#

sub46210-0D211

main46210-0D210-C0iNHP130..ACTIV201204-201407

HV ENTRY PACKAGE,BLACK,TRIM1#

sub46210-0D211

main46210-0D210-C0iNHP130..ACTIV201204-201407

HV SIMPLE PACKAGE,BLACK,TRIM1#

sub46210-0D211

main46210-0D230-C0iKSP130,NLP130,NSP130..ACTIV201107-201407

BLACK,TRIM1#

sub46210-0D231

main46210-0D250-C0iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201303-201407

MODEL YEAR'13 GRADE,BLACK,TRIM11

sub46210-0D251

main46210-0D250-C0iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

TREND PACKAGE,BLACK,TRIM11

sub46210-0D251

main46210-0D250-C0iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM11

sub46210-0D251

main46210-0D250-C0iNLP130..5D..6FS..ACTIV;KSP130,NLP130,NSP130..3D..ACTIV201303-201307

MODEL YEAR'13 GRADE,BLACK,TRIM1#

sub46210-0D251

main46210-0D250-C0iKSP130,NLP130,NSP130..LOUNG201107-201407

BLACK,TRIM1#

sub46210-0D251

main46210-0D250-C0iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

INTERIOR PACKAGE,BLACK,TRIM11

sub46210-0D251

main46210-0D250-C1iNHP130201204-201407

BLACK & BLUE,TRIM1#

sub46210-0D251

main46210-0D250-C2iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

TREND PACKAGE,BLACK/YELLOW,TRIM13,14,15

sub46210-0D251

main46210-0D250-C2iKSP130,NLP130,NSP130..LHD..5D..(5F,6F,CVFC)..ACTIV201301-201407

TREND PACKAGE (WITHOUT DECO LINE),BLACK/YELLOW,TRIM13,14,15

sub46210-0D251

main46210-0D250-C2iKSP130,NLP130,NSP130..LHD..5D..(5F,6F,CVFC)..ACTIV201303-201407

MODEL YEAR'13 GRADE,BLACK/YELLOW,TRIM13,14,15

sub46210-0D251

main46210-0D250-C2iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

INTERIOR PACKAGE,BLACK/YELLOW,TRIM13,14,15

sub46210-0D251

main46210-0D250-C3iNLP130,NSP130..STYLE201307-201407

BLACK/ORANGE,TRIM1#

sub46210-0D251

main46210-0D270-C0iNLP130,NSP130..STYLE201107-201307

BLACK,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D060iKSP130,NHP130,NLP130,NSP130201107

46341EQUALIZER, PARKING BRAKE

main46341-0D060iKSP130,NHP130,NLP130,NSP130201107

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D010iKSP130,NHP130,NLP130,NSP130201107

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D200iKSP130,NLP130,NSP130201107

main46420-0D210iKSP130,NLP130,NSP130201107

REAR WHEEL BRAKE-DISK(BUILT-IN)

main46420-0D220iNHP130201204

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iKSP130,NHP130,NLP130,NSP130201107

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D200iKSP130,NLP130,NSP130201107

main46430-0D210iKSP130,NLP130,NSP130201107

REAR WHEEL BRAKE-DISK(BUILT-IN)

main46430-0D220iNHP130201204

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D060iKSP130,NHP130,NLP130,NSP130201107

8401

90119W0061

main90119-W0061

9167180614

main91671-80614

12 parts on this diagram · 2 diagrams in section
