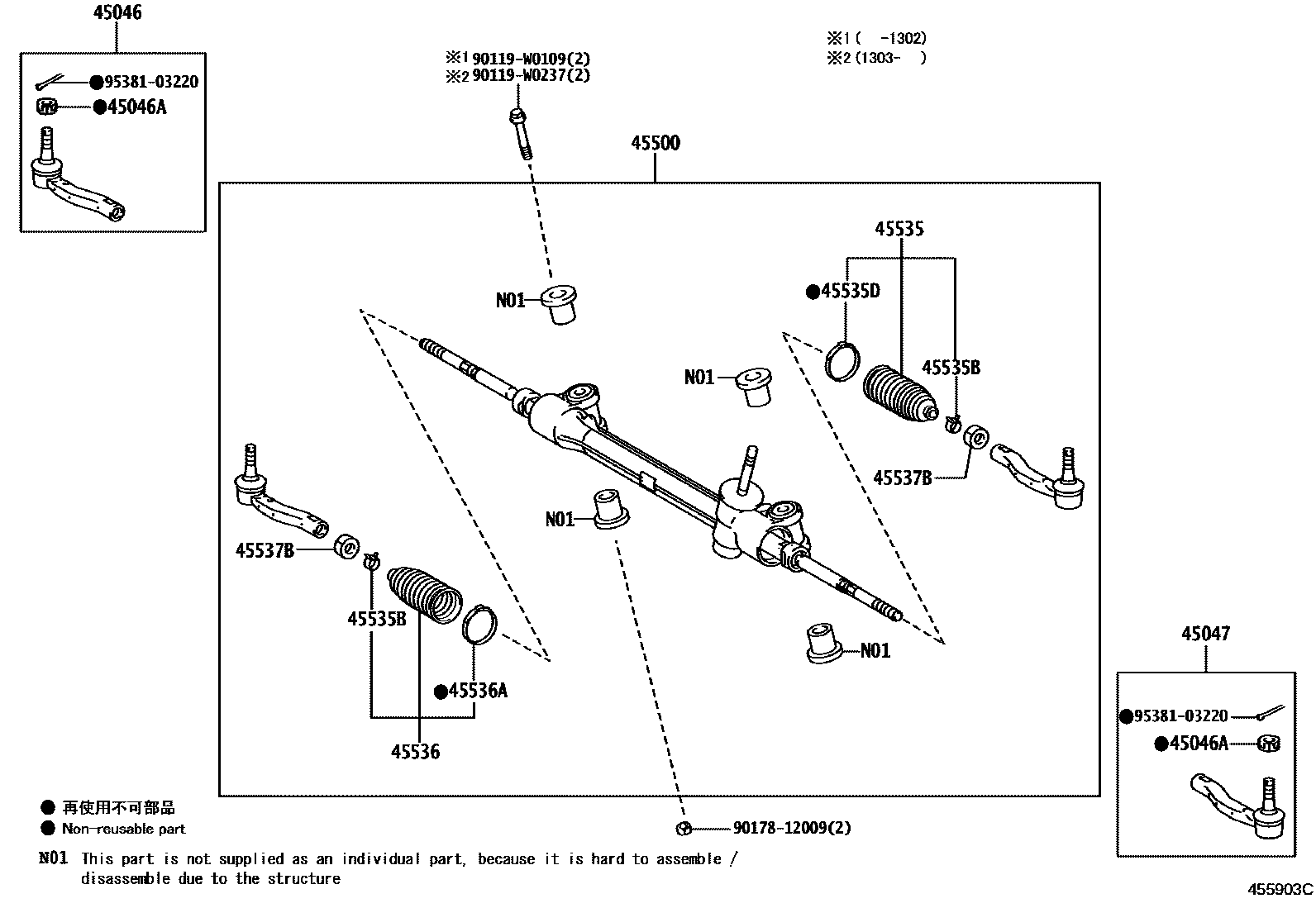

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09480iNHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD201107

TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM

main45046-09700iNHP130..LOUNG;NLP130,NSP130..STYLE201107

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM

sub45046-09860

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKSP130,NHP130,NLP130,NSP130201107

45047END SUB-ASSY, TIE ROD, LH

main45046-09700iNHP130..LOUNG;NLP130,NSP130..STYLE201107

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM

sub45046-09860

main45047-09220iNHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD201107

TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM

45500LINK ASSY, STEERING

main45500-0D270iNHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STD)201107

sub45510-52360

sub45046-59255

sub45047-59165

sub90179-14019

main45500-0D280iNHP130..LHD..LOUNG;NLP130,NSP130..LHD..STYLE201107

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM

main45500-0D300iNHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STD)201107

sub45510-52310

sub45046-59255

sub45047-59165

sub90179-14019

main45500-0D310iNHP130..RHD..LOUNG;NLP130,NSP130..RHD..STYLE201107

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM

45535BOOT, STEERING RACK, NO.1

main45535-09240iKSP130,NHP130,NLP130,NSP130201107

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D050iKSP130,NHP130,NLP130,NSP130201107

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iKSP130,NHP130,NLP130,NSP130201107

45536BOOT, STEERING RACK, NO.2

main45535-09240iKSP130,NHP130,NLP130,NSP130201107

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iKSP130,NHP130,NLP130,NSP130201107

45537BNUT, RACK END LOCK

main90178-15003iNHP130..LOUNG;NLP130,NSP130..STYLE201107

TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM

main90179-14019iNHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STD201107

TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM

90119W0109

main90119-W0109

90119W0237

main90119-W0237

9017812009

main90178-12009

9538103220

main95381-03220

14 parts on this diagram · 2 diagrams in section
