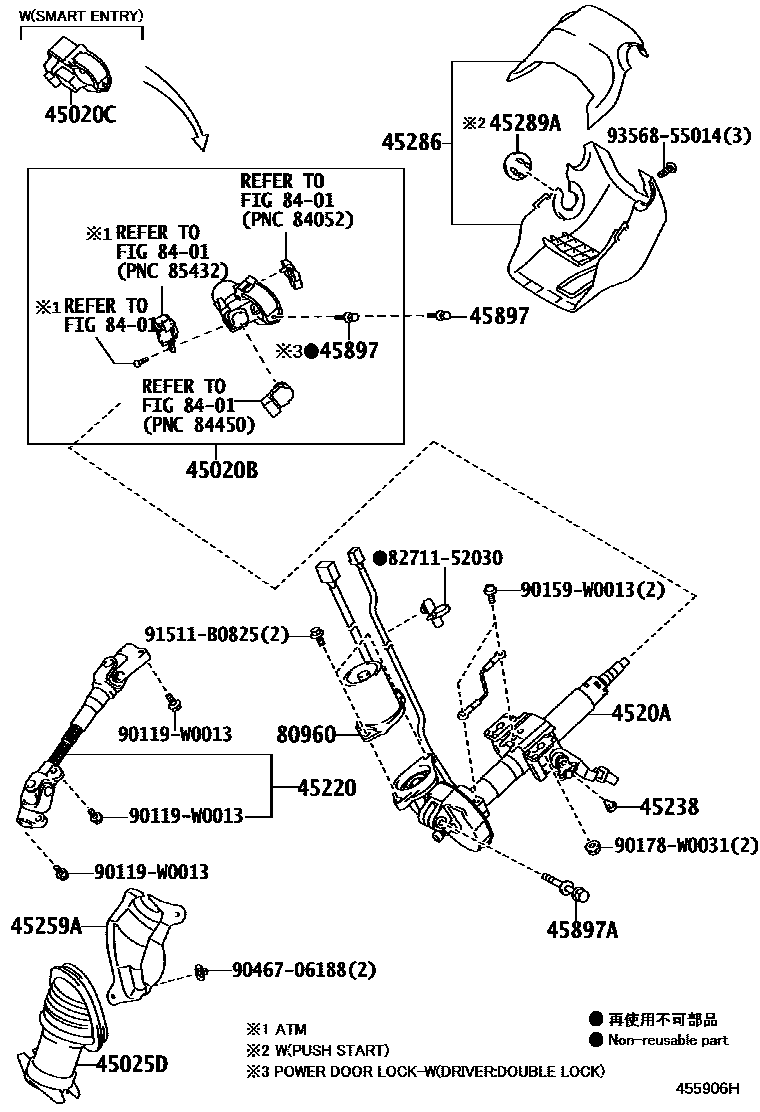

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45020-0D080iNLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..MTM..(ACTIV,LOUNG,STYLE)201107-201402

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

sub45020-0D081

main45020-0D081iKSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE)201403-201407

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

sub45020-0D101

main45020-0D090iNHP130..ACTIV;NSP130..LHD..CVFC201107-201402

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

sub45020-0D091

main45020-0D091iNSP130..RHD..CVFC201403-201407

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

sub45020-0D111

main45020-0D100iKSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE)201107-201402

POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)

sub45020-0D101

main45020-0D101iKSP130,NLP130,NSP130..RHD..STD201403-201407

POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)

main45020-0D110iNSP130..RHD..CVFC201107-201402

sub45020-0D111

main45020-0D111iNSP130..RHD..CVFC201403-201407

UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iNHP130..LOUNG201204-201407

WIRELESS DOOR LOCK-WITH(PUSH START)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D061iKSP130,NLP130,NSP130201107-201111

sub45025-0D062

main45025-0D062iKSP130,NHP130,NLP130,NSP130201111

sub45025-0D061

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D050iNHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD201107

sub4520A-0D051

main4520A-0D060iNHP130..LHD..LOUNG201204

WIRELESS DOOR LOCK-WITH(PUSH START)

sub4520A-0D061

main4520A-0D070iNHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD201107

sub4520A-0D071

main4520A-0D080iNHP130..RHD..LOUNG201204

WIRELESS DOOR LOCK-WITH(PUSH START)

sub4520A-0D081

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D010iKSP130,NHP130,NLP130,NSP130..LHD201107

main45220-0D020iKSP130,NHP130,NLP130,NSP130..RHD201107

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iKSP130,NHP130,NLP130,NSP130201107-201407

45259ASHEET, COLUMN HOLE COVER SILENCER

main45255-0D100iKSP130,NHP130,NLP130,NSP130..LHD201107

main45255-0D110iKSP130,NSP130..RHD201107

main45255-0D120iNLP130..RHD201107

main45255-0D160iNHP130..RHD201204

45286COVER, STEERING COLUMN

main45286-0D915-C0iKSP130,NHP130,NLP130,NSP130201107-201407

BLACK,TRIM1#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D050-C0iNHP130..LOUNG201204-201407

BLACK,TRIM1#

main45289-0D050-C0iNHP130..LOUNG201204-201407

WIRELESS DOOR LOCK-WITH(PUSH START),BLACK,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iNHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main45897-12020iNHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

main45897-12050iKSP130,NLP130,NSP130..RHD..STD201107

POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iKSP130,NHP130,NLP130,NSP130201107-201310

main90119-10980iKSP130,NHP130,NLP130,NSP130201311

80960MOTOR ASSY, POWER STEERING

main80960-52070iKSP130,NHP130,NLP130,NSP130..RHD201308-201311

sub80960-52110

main80960-52080iKSP130,NHP130,NLP130,NSP130..RHD201107-201307

sub80960-52070

main80960-52090iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

main80960-52110iKSP130,NHP130,NLP130,NSP130..RHD201312-201406

8401

8271152030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52030

90119W0013

main90119-W0013

90159W0013

main90159-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

91511B0825

main91511-B0825

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
