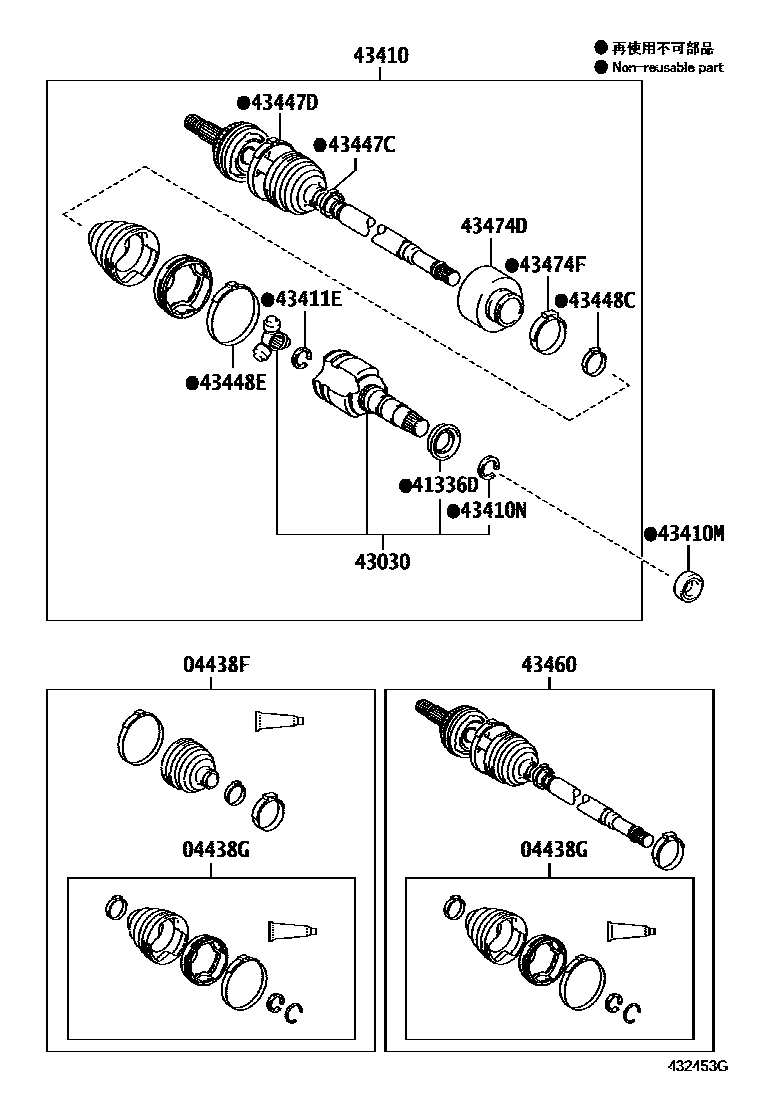

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D300iNHP130,NLP130¥17,800201107

main04427-0D310iKSP130201107

main04427-0D320iNSP130..6F201107-201308

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D050iKSP130,NSP130201107

main04437-0D220iNHP130,NLP130¥5,500201107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05140iNHP130,NLP130¥380201107

main41336-0H010iKSP130,NSP130201107

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0D020iNLP130¥22,000201107

main43403-0D061iKSP130,NSP130201107

main43403-0D170iNHP130201204

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D292iNSP130..6F201107-201407

main43410-0D331iNLP130¥66,600201107-201407

main43410-0D341iKSP130201107-201407

main43410-0D401iNHP130201204-201407

main43410-0D480iNSP130..6F201308-201407

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34038iNSP130..CVFC¥350201107-201406

sub90311-34047¥350

main90311-34041iNSP130..6F¥350201107-201407

*202,*206

sub90311-34054¥350

main90311-35065iNLP130..6F¥270201107-201407

*202,*206

main90311-W0003iKSP130201107-201110

*362

sub90311-W0015¥350

main90311-W0015iKSP130¥350201110-201407

*362

sub90311-W0025

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52055iNHP130,NLP130¥90201107

main90080-52056iKSP130,NSP130¥100201107

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D090iKSP130,NSP130201107

main90080-52093iNHP130,NLP130¥120201107

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D260iNSP130..6F¥330201107-201308

main42345-0D440iKSP130201107

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D250iNSP130..6F¥570201107-201308

main42345-0D430iKSP130201107

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNHP130,NLP130¥260201107

main42345-0D210iKSP130201107

main42345-0D720iNSP130..6F201107-201308

main42345-0D830iNSP130..6F201308

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D200iKSP130201107

main42345-0D210iNSP130201107

main42345-0D850iNHP130,NLP130¥360201107

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09U60iKSP130201107

main43460-09V00iNLP130201107

main43460-09V30iNSP130..6F201107-201308

main43460-09V60iNHP130201204

main43460-09X90iNSP130..6F201308

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D160iNLP130¥6,200201107

main43474-0D170iKSP130201107

main43474-0D190iNSP130..CVFC201107-201308

main43474-0D220iNHP130201204

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0D200iNSP130201107

main42345-0D770iNHP130,NLP130¥190201107

main42345-0D830iKSP130201107

15 parts on this diagram · 2 diagrams in section
