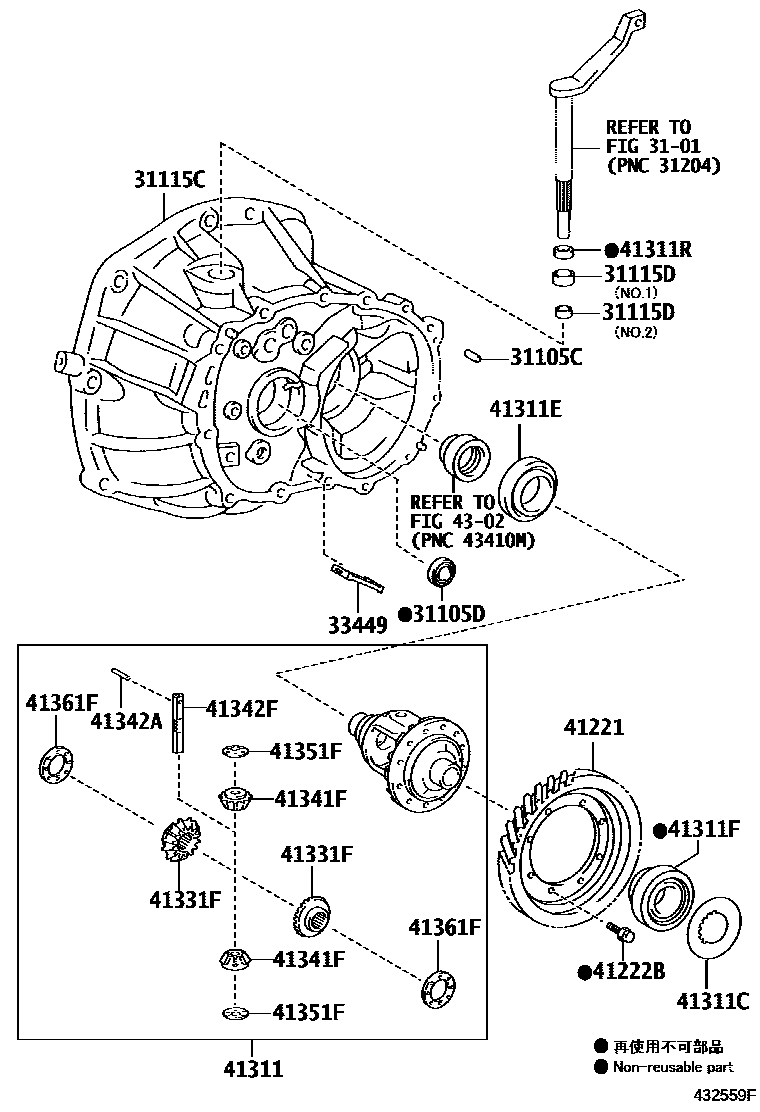

FRONT AXLE HOUSING & DIFFERENTIAL
3101
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
*202,*206
*362
31115DBUSH, BIMETAL FORMED(FOR FRONT TRANSAXLE CASE)
*362,NO.2
*362,NO.1
33449MAGNET, TRANSMISSION
*362
41221GEAR, FRONT DIFFERENTIAL RING
*362
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
*362
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.10,MARK 01,*362
T=1.15,MARK 02,*362
T=1.20,MARK 03,*362
T=1.25,MARK 04,*362
T=1.30,MARK 05,*362
T=1.35,MARK 06,*362
T=1.40,MARK 07,*362
T=1.45,MARK 08,*362
T=1.50,MARK 09,*362
T=1.55,MARK 10,*362
T=1.60,MARK 11,*362
T=1.65,MARK 12,*362
T=1.70,MARK 13,*362
T=1.75,MARK 14,*362
T=1.80,MARK 15,*362
T=1.85,MARK 16,*362
T=1.90,MARK 17,*362
T=1.95,MARK 18,*362
T=2.00,MARK 19,*362
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
*202
*206
*362
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*362
*206
*202
41311RSEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
*362
41331FGEAR, FRONT DIFFERENTIAL SIDE
*202
*202
*362
*206
*206
41341FPINION, FRONT DIFFERENTIAL
*202
*362
*206
*206
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
*202
*362
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
*362
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*362
*202
*202
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02,*202
T=1.00,MARK 02
T=1.10,MARK 03,*202
T=1.10,MARK 03
T=1.20,MARK 04,*202
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14,*202
T=0.95,MARK 14
T=1.05,MARK 15,*202
T=1.05,MARK 15
T=1.15,MARK 16,*202
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
T=0.50,*362
T=0.55,*362
T=0.60,*362
T=0.65,*362
T=0.70,*362
T=0.75,*362
T=0.80,*362
T=0.85,*362
T=0.90,*362
T=0.95,*362
4302
20 parts on this diagram · 3 diagrams in section
