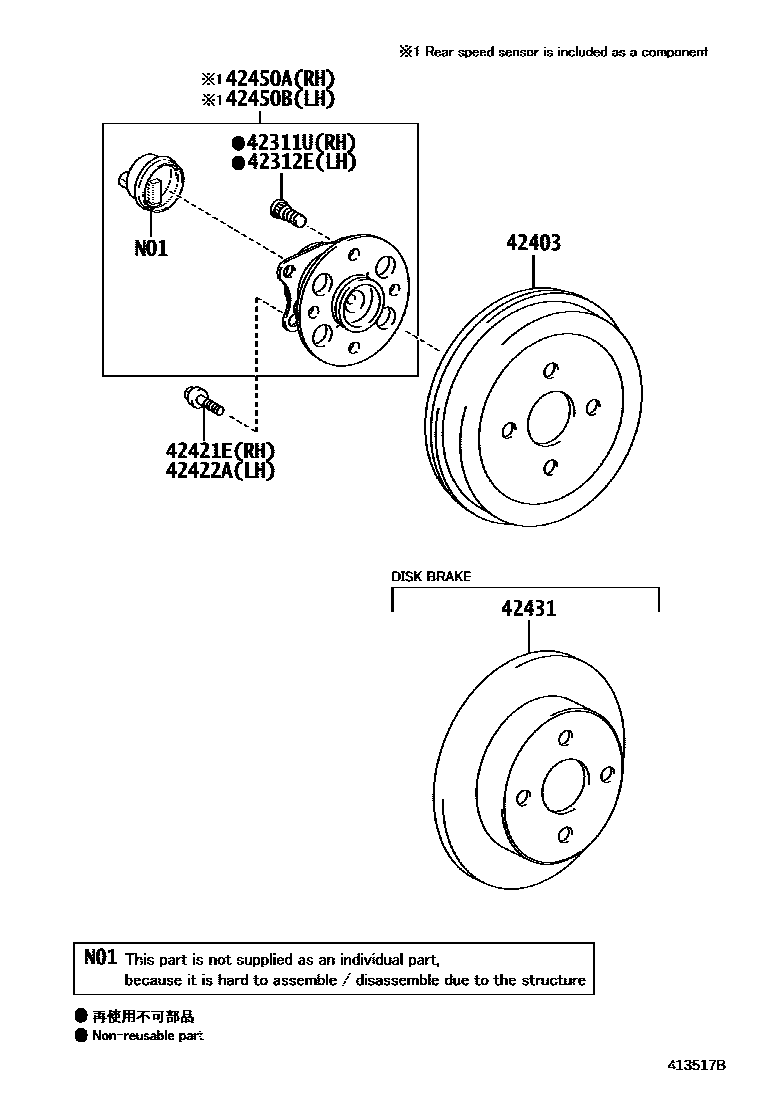

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iKSP130,NHP130,NLP130,NSP130¥240201107

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iKSP130,NHP130,NLP130,NSP130¥240201107

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D030iKSP130,NLP130,NSP130201107

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iKSP130,NHP130,NLP130,NSP130¥160201107-201404

main90105-12350iKSP130,NHP130,NLP130,NSP130¥160201404-201407

(J)

main90105-W0164iKSP130,NHP130,NLP130,NSP130201404-201407

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iKSP130,NHP130,NLP130,NSP130¥160201107-201404

main90105-12350iKSP130,NHP130,NLP130,NSP130¥160201404-201407

(J)

main90105-W0164iKSP130,NHP130,NLP130,NSP130201404-201407

(L)

42431DISC, REAR

main42431-0D060iNHP130¥16,100201204

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0D050iKSP130,NLP130,NSP130¥23,900201107-201407

sub42450-0D051¥23,900

main42450-0D110iNHP130201204-201407

sub42450-0D111

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0D050iKSP130,NLP130,NSP130¥23,900201107-201407

sub42450-0D051¥23,900

main42450-0D110iNHP130201204-201407

sub42450-0D111

8 parts on this diagram · 1 diagram in section
