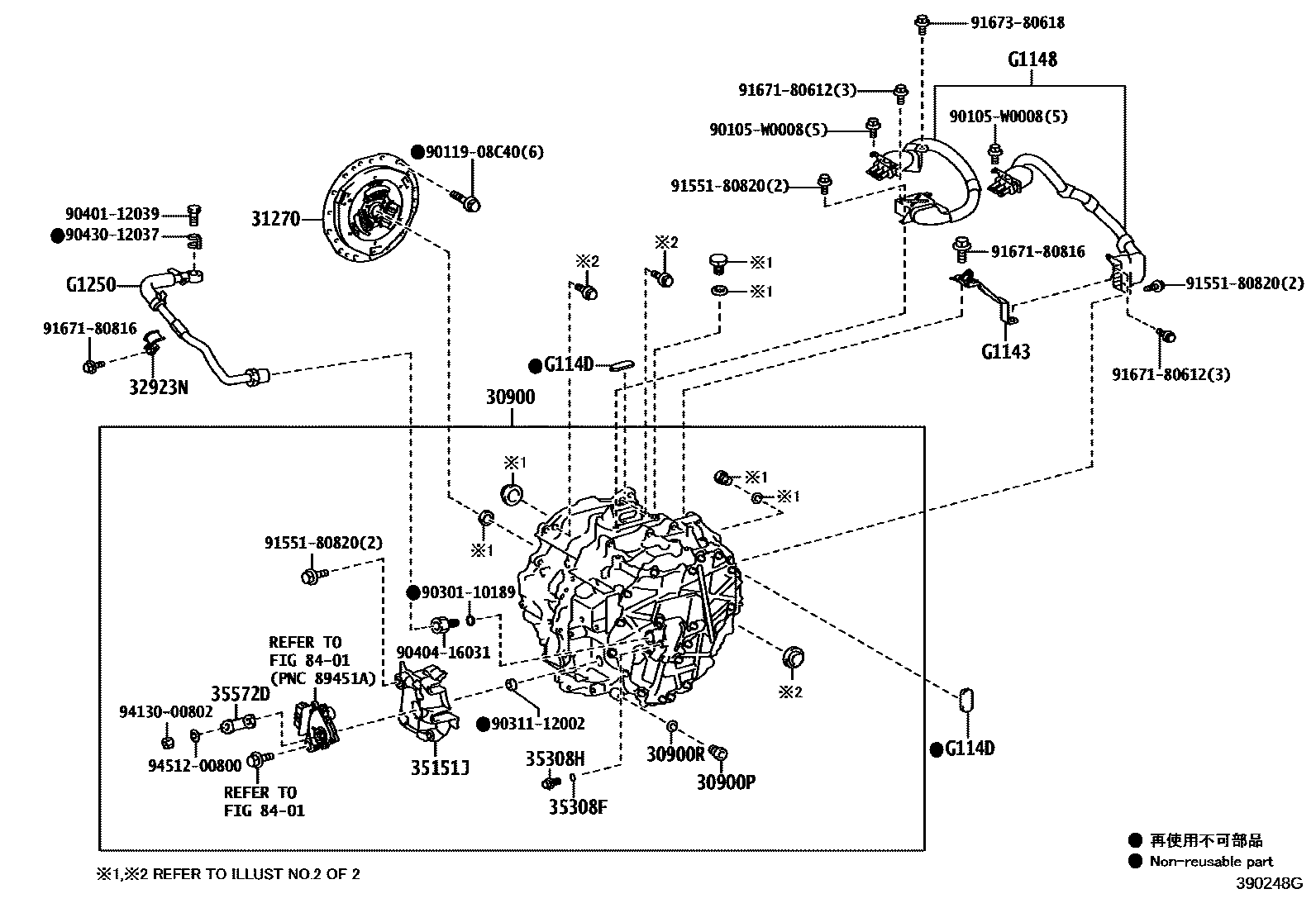

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-52010iNHP130¥232,000201204-201407

30900PPLUG, DRAIN(HEV)

main90341-18016iNHP130¥190201204-201407

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iNHP130¥110201204-201407

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-52010iNHP130¥22,100201204

32923NCLAMP, OIL COOLER TUBE

main32923-52040iNHP130¥200201204

35151JCOVER, AUTOMATIC TRANSMISSION CASE

main35151-52010iNHP130¥2,890201204

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iNHP130¥170201204-201407

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iNHP130¥120201204-201407

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-52090iNHP130¥530201204-201407

8401

G1143BRACKET, MOTOR CABLE

mainG114352030iNHP130201204

G1148CABLE, MOTOR

mainG114852010iNHP130201204-201407

G114DCAP, MOTOR CABLE TERMINAL

mainG114D47021iNHP130201204

G1250PIPE ASSY, MOTOR COOLING

mainG125052010iNHP130201204

90105W0008

main90105-W0008

9011908C40

main90119-08C40¥80

9030110189

main90301-10189¥170

9031112002

main90311-12002¥270

9040112039

main90401-12039¥390

9040416031

main90404-16031¥340

9043012037

main90430-12037¥80

9155180820

main91551-80820¥80

9167180612

main91671-80612¥60

9167180816

main91671-80816¥80

9167380618

main91673-80618¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

27 parts on this diagram · 2 diagrams in section
