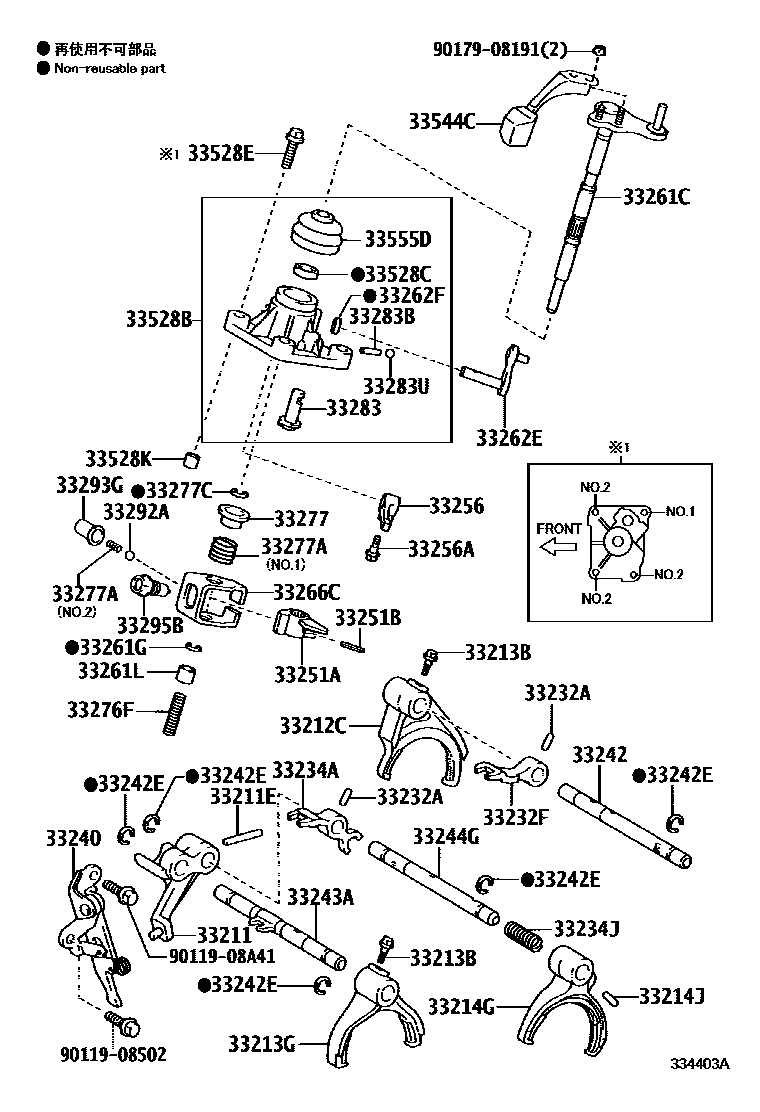

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
*202
*362
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
*362
33212CFORK, GEAR SHIFT, NO.1
*362
33213BBOLT(FOR SHIFT FORK SET)
*362
33213GFORK, GEAR SHIFT, NO.2
*362
33214GFORK, GEAR SHIFT, NO.3
*362
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
*362
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
*362
33232FHEAD, GEAR SHIFT, NO.1
*202
*362
33234AHEAD, GEAR SHIFT, NO.3
*202
*362
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
*362
33240BRACKET ASSY, REVERSE SHIFT ARM
*202
*362
33242SHAFT, GEAR SHIFT FORK, NO.1
*362
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
*362
33243ASHAFT, GEAR SHIFT FORK, NO.2
*362
33244GSHAFT, GEAR SHIFT FORK, NO.3
*362
33251ALEVER, SHIFT, INNER NO.1
*202
*206
*362
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=22
L=28.0,*202,*206
L=25.5,*362
33256LEVER, SELECT INNER
*202
*206
*362
33256ABOLT, SET (FOR SELECT INNER LEVER)
*362
*202,*206
33261CSHAFT, SHIFT & SELECT LEVER
*202
*206
*362
33261GRING, SNAP (FOR SHIFT & SELECT LEVER SHAFT)
*362
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
*206,NO.1
NO.1
*206,NO.2
NO.2
*362
*202,NO.1
*202,NO.2
33262ESHAFT, SELECT LEVER
*362
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
*362
33266CPLATE, SHIFT INTERLOCK
*362
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
*362,L=103.71
*362,L=76
33277SEAT, SELECT SPRING, NO.2
*362
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
*362,NO.1,L=64.93
*362,NO.2
*362,NO.1,L=68.4
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
*362
33283PIN, REVERSE RESTRICT, NO.1
*362
33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)
*362
33283UBALL, REVERSE RESTRICT PIN
*362
33292APIN, LOCK BALL
*202
*362
*206
33293GHOLDER, LOCK BALL
*362
33295BPIN, SHIFT GATE
*362
33528BCOVER, CONTROL SHAFT
*362
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
*362
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30,*362
*8-1.25PX35-30,*362
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
*362
33544CDAMPER, SHIFT LEVER
sub33544-52110
33555DBOOT, SHIFT LEVER
*362
9011908502
9011908A41
9017908191
45 parts on this diagram · 4 diagrams in section
