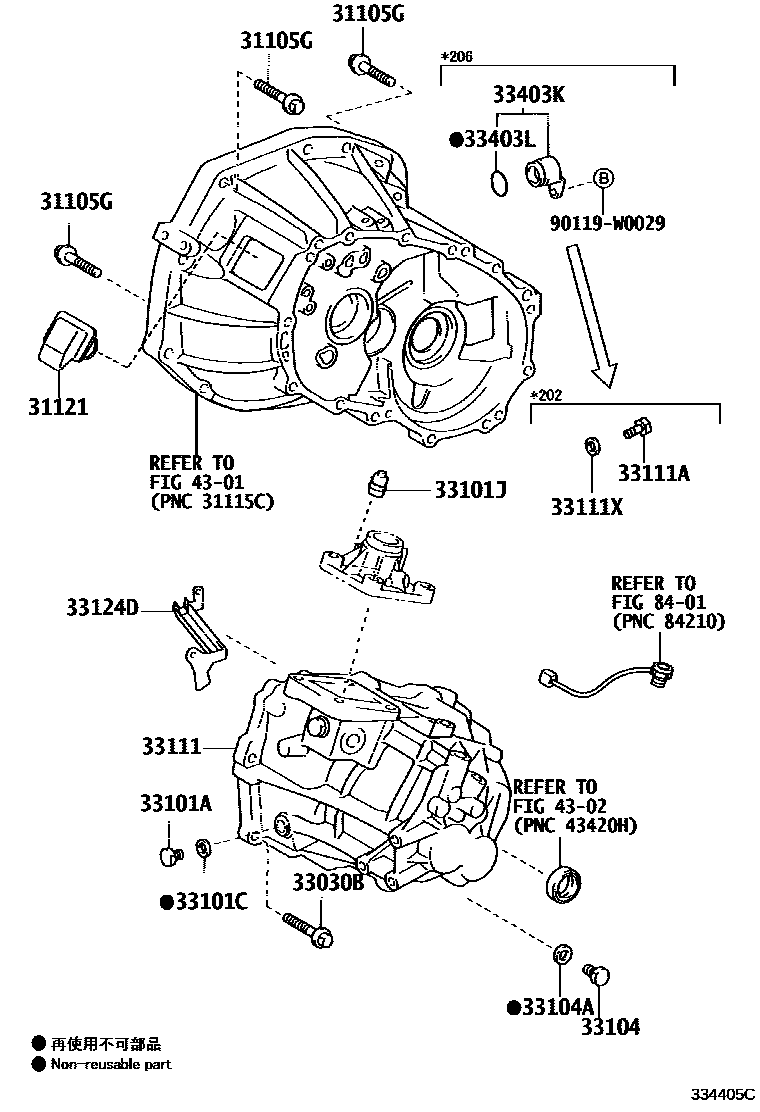

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX80-26,(L)
*12-1.25PX45-30,(L),T/P B:REF.ILLUST
*10-1.25PX35-26
*10-1.25PX45-26,TYPE B:REFER ILLUST.
*12-1.25PX80-30,(L)
*12-1.25PX45-30
*12-1.25PX45-30,TYPE A:REFER ILLUST.
*10-1.25PX45-30,(L),T/P A:REFER ILL.
*10-1.25PX40-30
*10-1.25PX45-26,(J),T/P B:REF.ILLUST
*10-1.25PX80-26
*10-1.25PX80-26,(J)
*12-1.25PX45-30,(J),TYPE B:REF ILL.
*12-1.25PX80-30
*12-1.25PX80-30,(J)
*10-1.25PX45-30,(J),T/P A:REFER ILL.
31121COVER, CLUTCH HOUSING, NO.1
*202
*362
*206
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX60-30,*362
*8-1.25PX40-22,*202,*206
*8-1.25PX40-22
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
*202,NO.1,*206,NO.1
NO.1
*362
*202,NO.2,*206,NO.2
NO.2
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
*202,NO.2,*206,NO.2
NO.2
*202,NO.1,*206,NO.1
NO.1
*206,NO.2
NO.2
*202,NO.2
*362
33101JPLUG, BREATHER
*202,*206
33104PLUG SUB-ASSY, DRAIN(MTM)
*362
33104AGASKET, DRAIN PLUG(MTM)
*362
33111APLUG, MANUAL TRANSMISSION CASE
*202
*206
WITHOUT(STOP & START SYSTEM),*206
WITHOUT(STOP & START SYSTEM),*202
33111XGASKET, TRANSMISSION CASE PLUG
*202
33124DPIPE, OIL RECEIVER, NO.2(MTM)
*362
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
*206
33403LRING, O
*206
4301
4302
8401
90119W0029
18 parts on this diagram · 3 diagrams in section
