TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

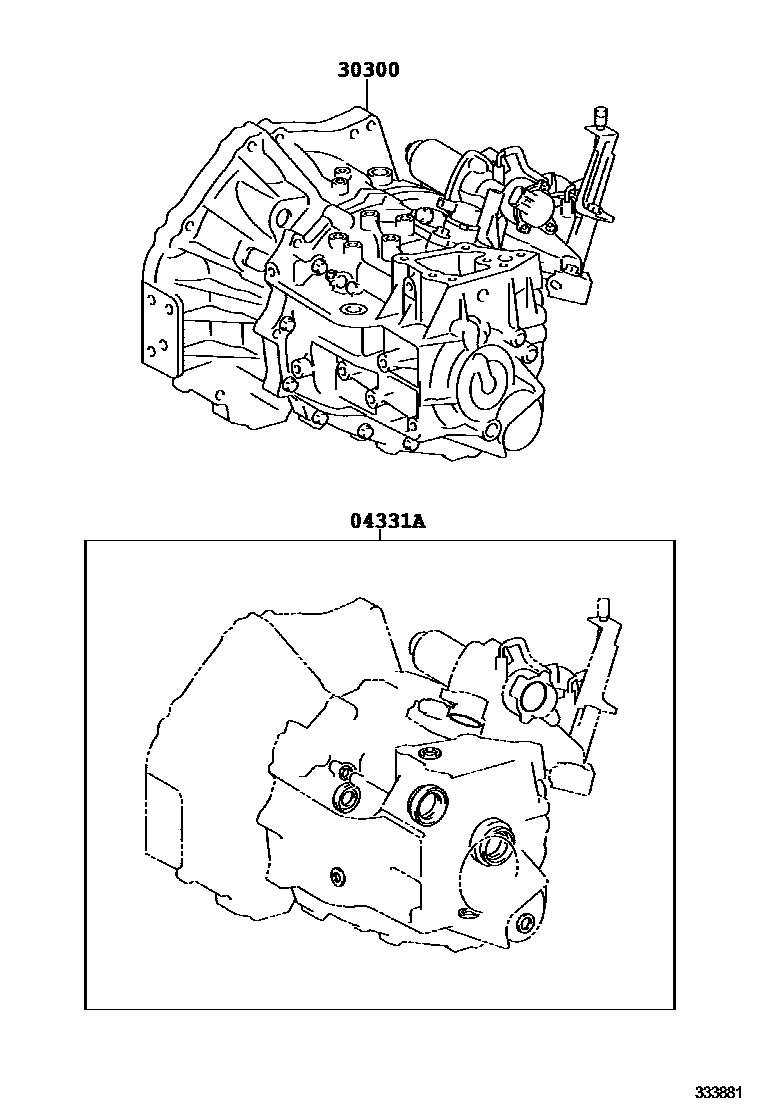

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-05210i201107-201210
*200
sub04331-05211
main04331-0D180i201107-201110
*363
sub04331-0D181
main04331-0D181i201110-201407
*363
main04331-0F010i201211-201407
*200
sub04331-0F011
main04331-20250i201107-201211
*205
sub04331-20280
main04331-20252i201211-201407
*205
sub04331-20270
main04331-52592i201211-201407
*205
sub04331-52593
main04331-52610i201107-201210
sub04331-52680
main04331-52612i201210-201407
sub04331-12830
30300TRANSAXLE ASSY, MANUAL
main30300-0D140i201107-201407
EC65,*200
sub30300-0D330
main30300-0D190i201107-201407
C551,*363
sub30300-0D410
main30300-0D210i201107-201407
EC62,*200
sub30300-0D211
sub35150-44010
main30300-52661i201107-201407
EC65,*205
main30300-52881i201107-201407
EC62,*205
main30330-52061i201107-201108
EC65A
sub30330-52062
main30330-52062i201108-201407
EC65A
sub30330-52090

2 parts on this diagram · 4 diagrams in section
