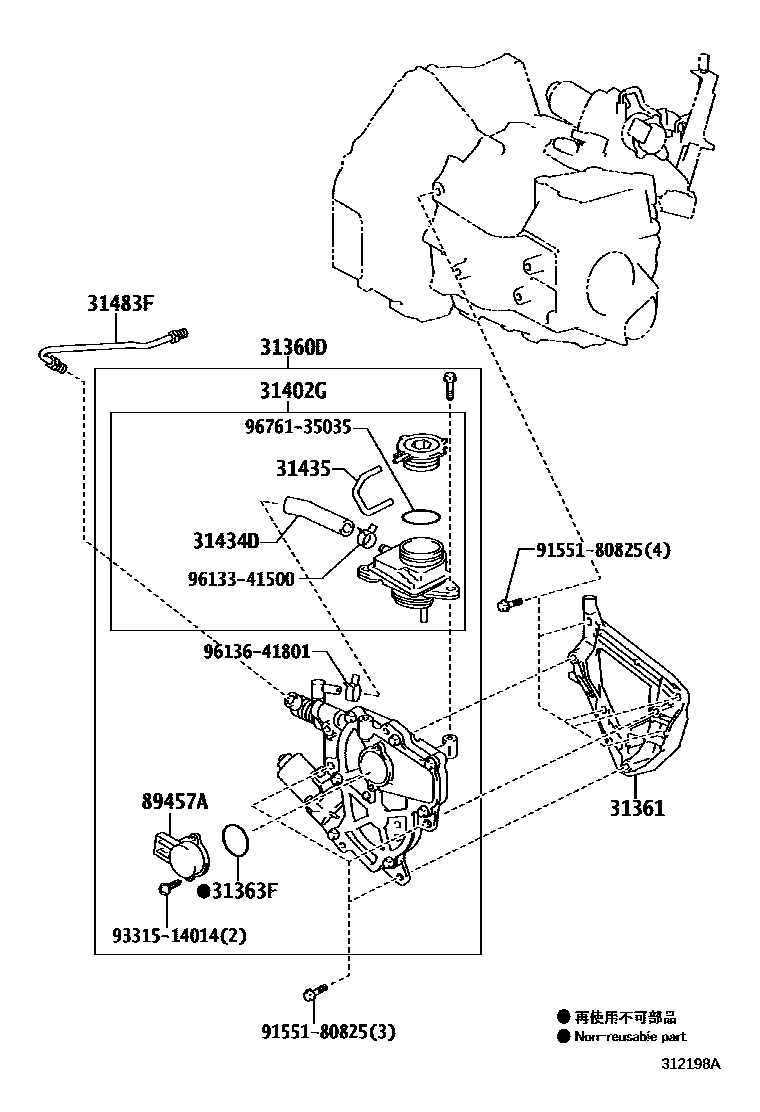

FREE TRONIC

31360DACTUATOR ASSY, CLUTCH

main31360-52043iNLP130..6FS201107-201109

sub31360-52044

main31360-52044iNLP130..6FS201110

31361BRACKET, CLUTCH ACTUATOR, NO.1

main31361-52020iNLP130..6FS201107

31363FRING, O(FOR CLUTCH ACTUATOR ACCUMULATOR)

main90301-37010iNLP130..6FS201107

31402GRESERVOIR SET, MASTER CYLINDER

main31402-52011iNLP130..6FS201107

31434DTUBE, CLUTCH RESERVOIR

main31434-52120iNLP130..6FS201107

31435TUBE, CLUTCH RESERVOIR, NO.2

main31435-52010iNLP130..6FS201107

31483FTUBE, BLEEDER CLUTCH RELEASE

main31483-52062iNLP130..6FS201107

89457ASTROKE SENSOR, CLUTCH

main89457-52020iNLP130..6FS201107-201407

9155180825

main91551-80825

9331514014

main93315-14014

9613341500

main96133-41500

9613641801

main96136-41801

9676135035

main96761-35035

13 parts on this diagram · 1 diagram in section
