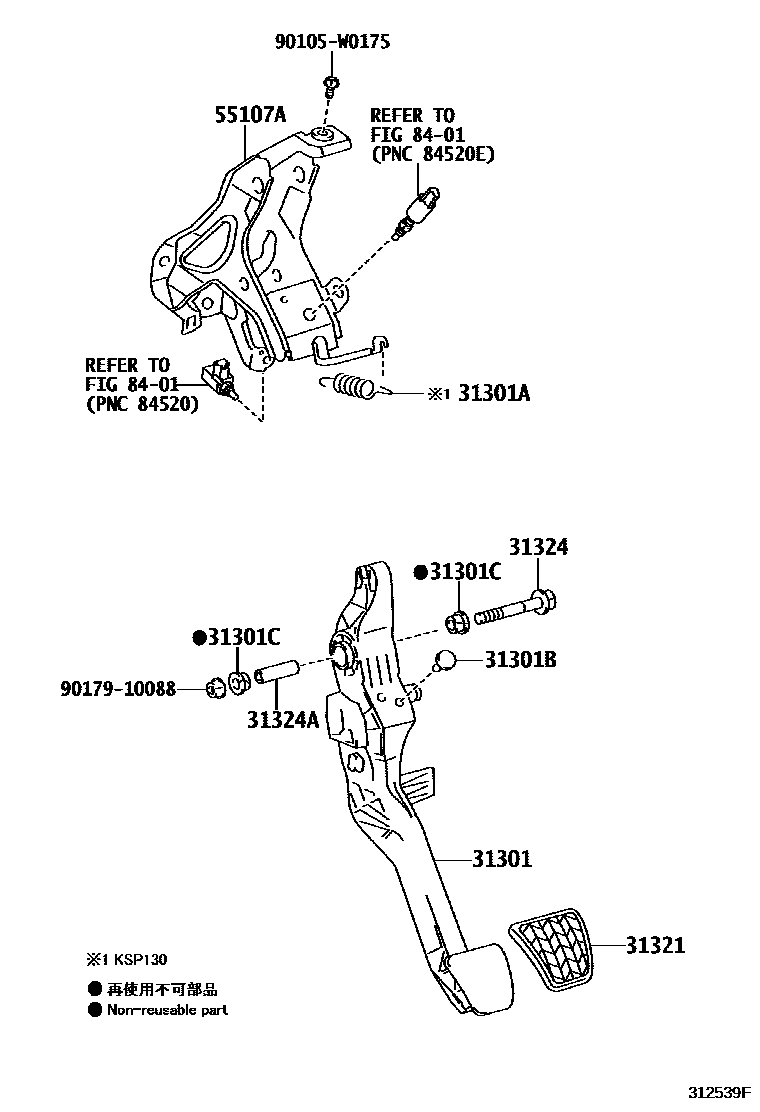

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D160iKSP130,NSP130..RHD..MTM201107

main31301-0D170iNLP130..RHD201107

main31311-0D110iKSP130,NLP130,NSP130..LHD..(5F,6F)201107

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNSP130..LHD..6F201107-201204

main90507-14055iKSP130,NSP130..RHD..MTM201107

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKSP130,NLP130,NSP130..5F,6F201107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKSP130,NLP130,NSP130..5F,6F201107

31321PAD, CLUTCH PEDAL

main31321-52010iKSP130,NLP130,NSP130..5F,6F201107

31324SHAFT, CLUTCH PEDAL

main90105-10444iKSP130,NLP130,NSP130..RHD..MTM201107

main90105-10563iKSP130,NLP130,NSP130..LHD..(5F,6F)201107

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKSP130,NLP130,NSP130..RHD..MTM201107

main90387-10004iKSP130,NLP130,NSP130..LHD..(5F,6F)201107

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D160iNLP130..LHD..6F201107

main55107-0D170iNSP130..LHD..6F201107-201204

main55107-0D220iNLP130..RHD201107

main55107-0D230iKSP130,NSP130..RHD..MTM201107

main55107-0D300iNSP130..LHD..6F201204

8401

90105W0175

main90105-W0175

9017910088

main90179-10088

11 parts on this diagram · 10 diagrams in section
