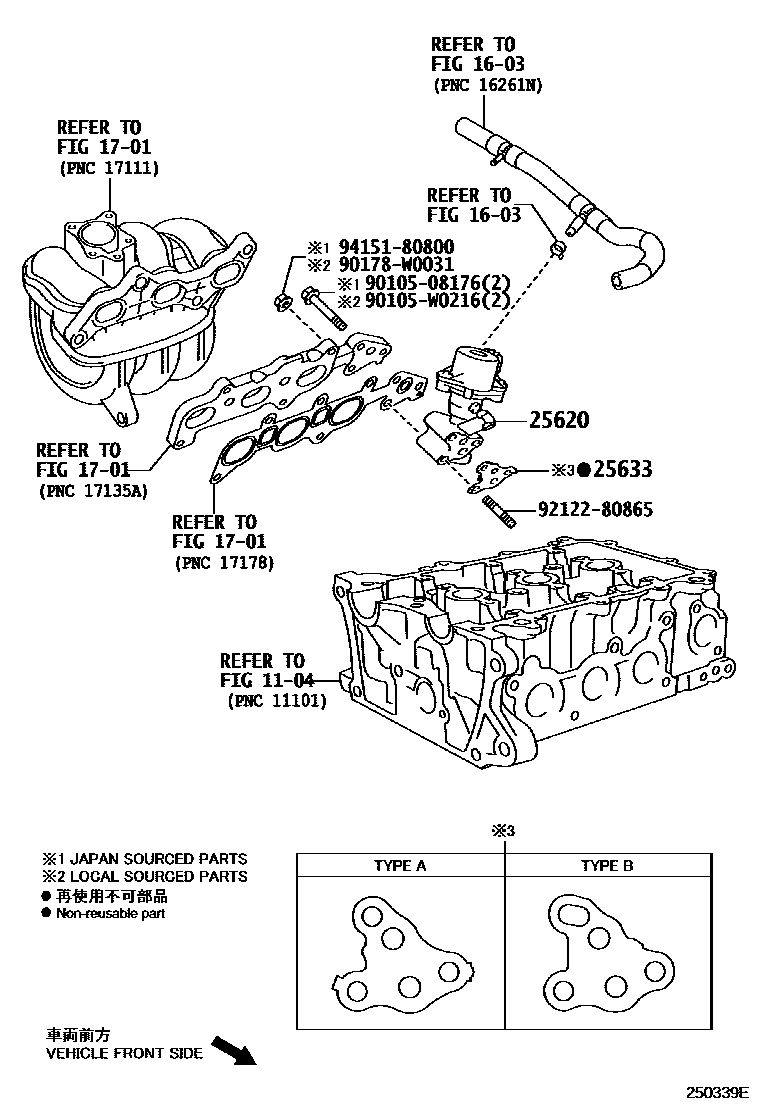

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1

1104

1603

1701

25620VALVE ASSY, EGR

main25620-21020i1NZFXE..NHP130201204

sub25620-21021

main25620-40020i1KRFE..KSP130201107-201407

main25620-47020i1NRFE..NSP130201107

25633GASKET, EGR VALVE

main25633-0Q010i1KRFE..KSP130201107-201407

(L)

main25633-21010i1NZFXE..NHP130201204

main25633-40020i1KRFE..KSP130201107-201407

(J),TYPE A

main25633-40030i1KRFE..KSP130201403-201404

(J),TYPE B

main25633-47010i1NRFE..NSP130201107

9010508176

main90105-08176

90105W0216

main90105-W0216

90178W0031

main90178-W0031

9212280865

main92122-80865

9415180800

main94151-80800

10 parts on this diagram · 4 diagrams in section
