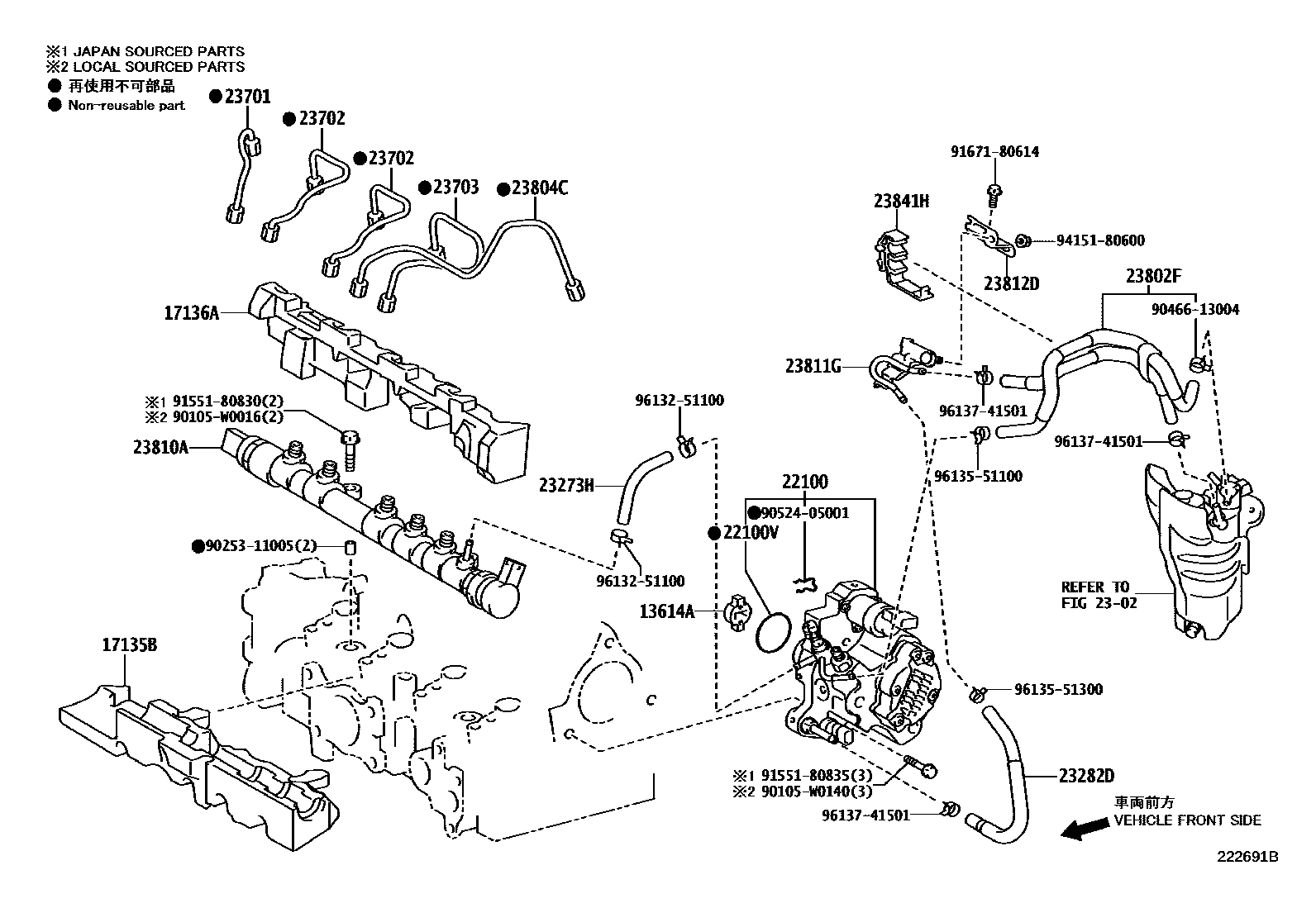

INJECTION PUMP ASSEMBLY

13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1

main13614-0N010i1NDTV..NLP130201107

(L)

main13614-33010i1NDTV..NLP130201107

(J)

17135BINSULATOR, INTAKE MANIFOLD, NO.1

main17135-0N010i1NDTV..NLP130201205

(L)

sub17135-0N011

main17135-33011i1NDTV..NLP130201107-201205

sub17135-33012

17136AINSULATOR, INTAKE MANIFOLD, NO.2

main17136-0N010i1NDTV..NLP130201205

(L)

main17136-33010i1NDTV..NLP130201107-201205

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0W010i1NDTV..NLP130201107-201202

(L)

main22100-33050i1NDTV..NLP130201107-201202

(J)

22100VRING, O(FOR INJECTION PUMP)

main96723-35044i1NDTV..NLP130201202

2302

23273HHOSE, FUEL, NO.2

main23273-0N020i1NDTV..NLP130201107

(L)

main23273-33090i1NDTV..NLP130201107

(J)

23282DHOSE, FUEL, NO.4

main23282-0N040i1NDTV..NLP130201107

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-33040i1NDTV..NLP130201107

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-33010×2i1NDTV..NLP130201107

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-33010i1NDTV..NLP130201107

23802FHOSE, FUEL

main23802-0N050i1NDTV..NLP130201107

23804CPIPE SUB-ASSY, FUEL INLET

main23804-33020i1NDTV..NLP130201107

23810ARAIL ASSY, COMMON

main23810-33030i1NDTV..NLP130201107

sub23810-33031

sub17135-33012

23811GPIPE, FUEL, NO.1

main23811-33110i1NDTV..NLP130201107

23812DPIPE, FUEL, NO.2

main23812-33020i1NDTV..NLP130201107

23841HCLAMP, FUEL HOSE

main23841-0N010i1NDTV..NLP130201107

90105W0016

main90105-W0016

90105W0140

main90105-W0140

9025311005

main90253-11005

9046613004

main90466-13004

9052405001

main90524-05001

9155180830

main91551-80830

9155180835

main91551-80835

9167180614

main91671-80614

9415180600

main94151-80600

9613251100

main96132-51100

9613551100

main96135-51100

9613551300

main96135-51300

9613741501

main96137-41501

30 parts on this diagram · 1 diagram in section
