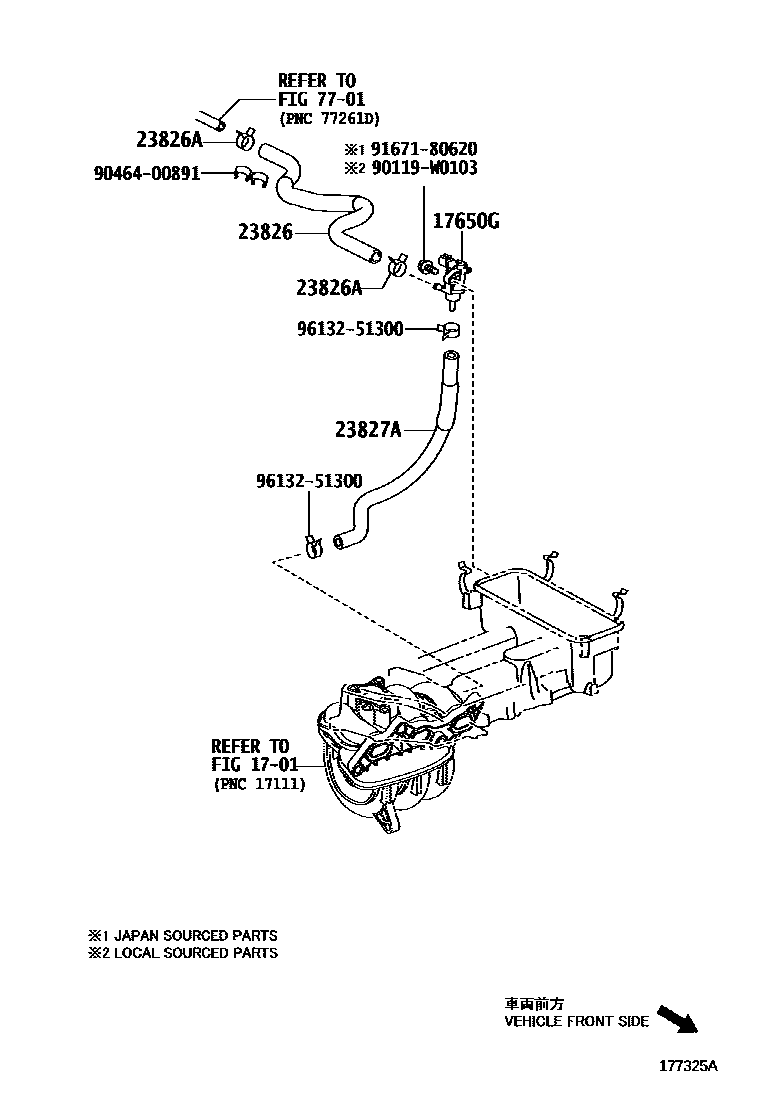

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12280i1KRFE..KSP130201309

(J)

main90910-WC003i1KRFE..KSP130201309

(L)

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0M050i1NZFXE..NHP130201204-201407

main23826-0Q020i1KRFE..KSP130201107-201407

main23826-0Y010i1NRFE..NSP130201107-201407

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1NZFXE,1NRFE..NHP130,NSP130201107-201407

main96132-51100×2i1KRFE..KSP130201107

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0M050i1NZFXE..NHP130201204

main23827-0Y010i1NRFE..NSP130201107

main23827-40011i1KRFE..KSP130201107

7701

90119W0103

main90119-W0103

9046400891

main90464-00891

9167180620

main91671-80620

9613251300

main96132-51300

10 parts on this diagram · 4 diagrams in section
