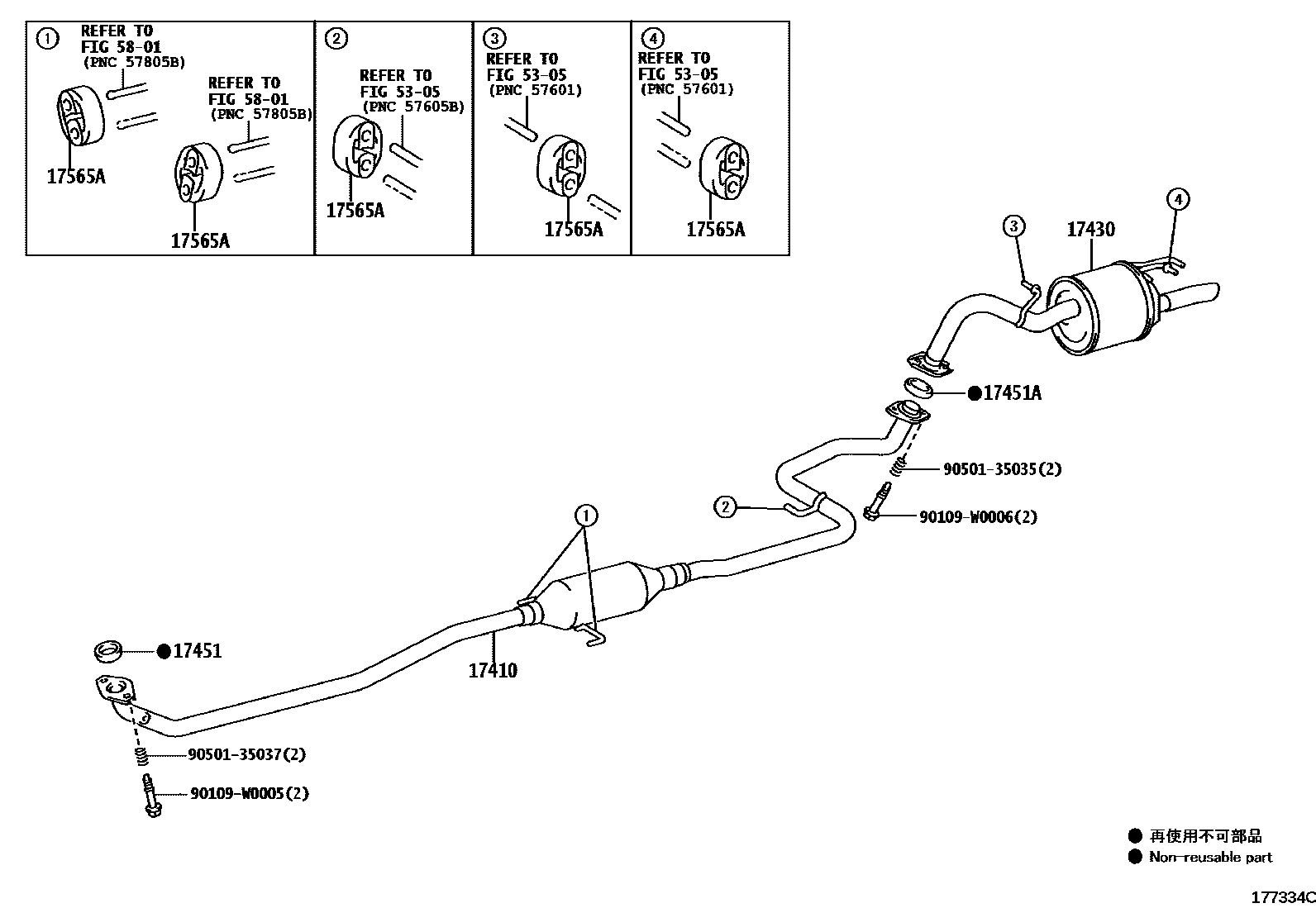

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0M180i1NZFXE..NHP130201204

*114=TOYOTA/FB1/Y

sub17410-0M181

main17410-0N130i1NDTV..NLP130201107

main17410-0Q040i1KRFE..KSP130201107-201203

sub17410-0Q041

main17410-0Q041i1KRFE..KSP130201204

main17410-0Y120i1NRFE..NSP130201107

*114=TOYOTA/CE8/Y

17430PIPE ASSY, EXHAUST, TAIL

main17430-0M120i1NZFXE..NHP130201204

main17430-0N080i1NDTV..NLP130201107

main17430-0Q050i1KRFE..KSP130201107

main17430-0Y020i1NRFE..NSP130201107

17451GASKET, EXHAUST PIPE

main17451-0J030i1NZFXE,1NRFE..NHP130,NSP130201107

main17451-0Q010i1KRFE..KSP130201107

main17451-0R010i1NDTV..NLP130201107

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0Q022i1KRFE,1NZFXE..KSP130,NHP130201107

main90917-06039i1NDTV,1NRFE..NLP130,NSP130201107

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0Q030i1NDTV,1NRFE..NLP130,NSP130201107

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

11 parts on this diagram · 4 diagrams in section
