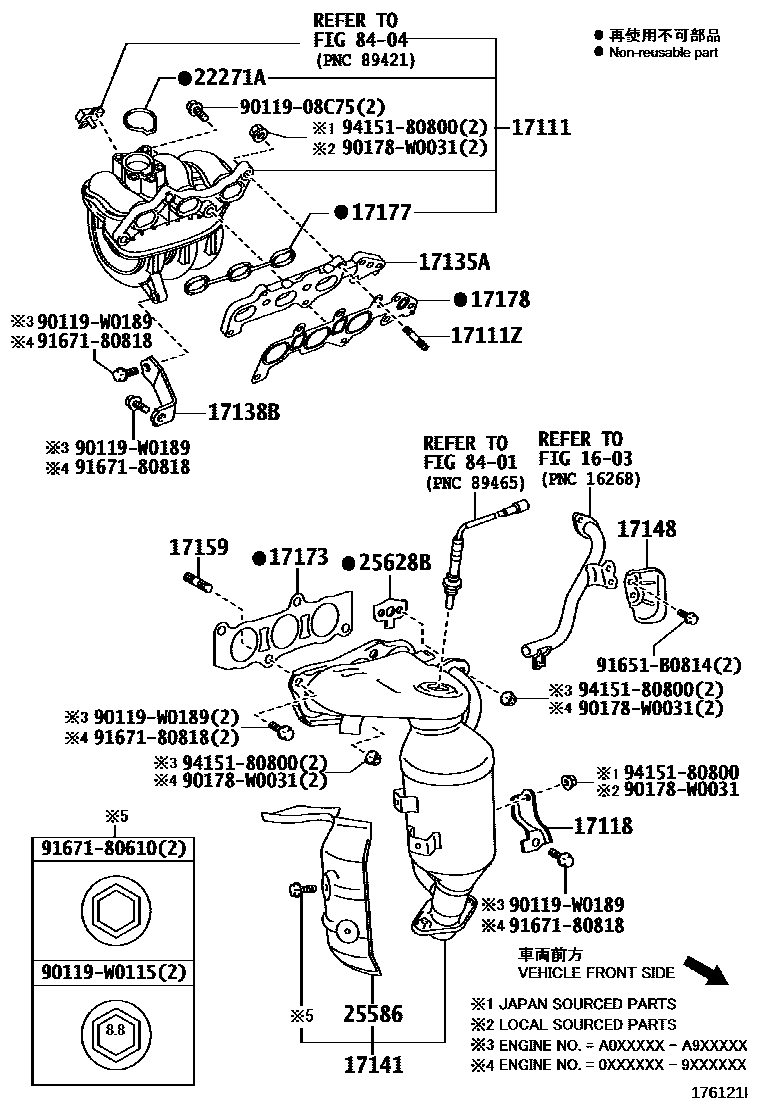

MANIFOLD
1603
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
(L)
(J)
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25628BGASKET, EGR INLET
(L)
(J)
8401
8404
9011908C75
main90119-08C75
90119W0115
main90119-W0115
90119W0189
main90119-W0189
90178W0031
main90178-W0031
91651B0814
main91651-B0814
9167180610
main91671-80610
9167180818
main91671-80818
9415180800
main94151-80800
25 parts on this diagram · 5 diagrams in section
