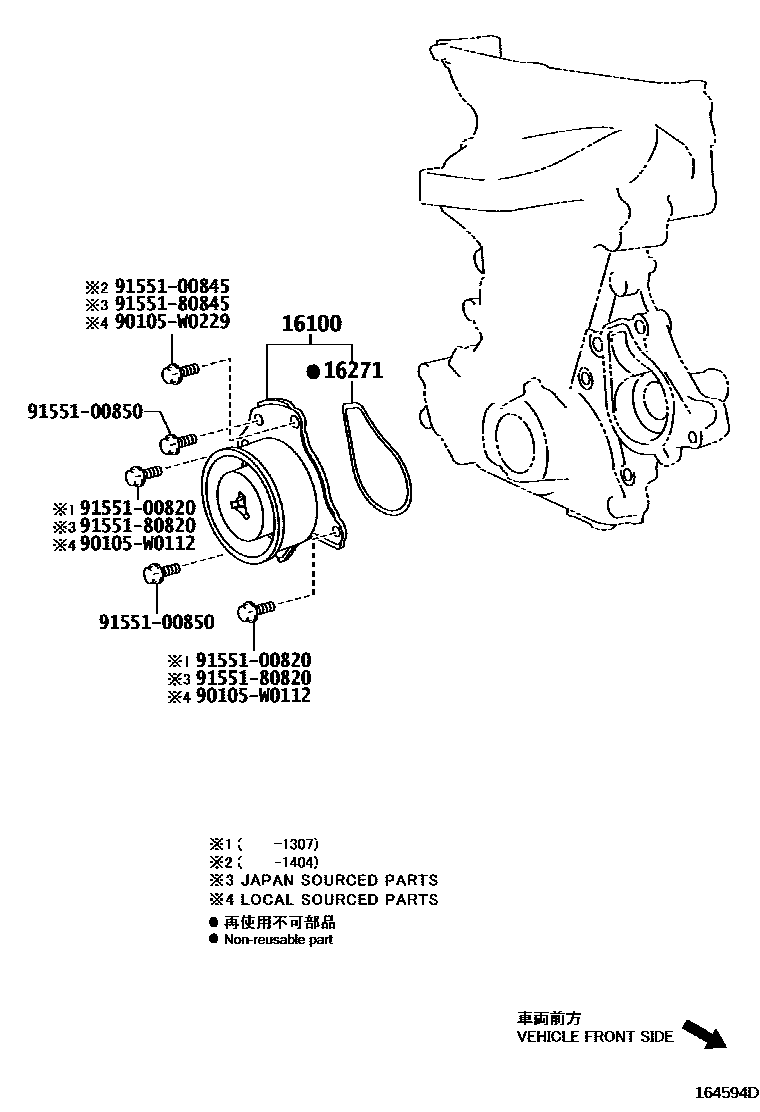

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-09530i1KRFE..KSP130¥8,800201107-201407

*138

sub16100-09531¥8,800

main16100-09610i1NDTV..NLP130201203

main16100-39525i1NDTV..NLP130¥9,000201107-201203

sub16100-39526¥9,000

main16100-80004i1NRFE..NSP130¥8,700201107-201308

sub16100-80010¥7,900

sub91552-81050¥120

main16100-80007i1KRFE..KSP130¥8,700201107-201404

*132

main16100-80010i1NRFE..NSP130¥7,900201308

sub16100-80019¥7,900

main161A0-29015i1NZFXE..NHP130¥15,000201204

16271GASKET, WATER PUMP

main16271-0Q010i1KRFE..KSP130¥610201107-201407

*138

main16271-33030i1NDTV..NLP130¥650201107-201407

main16271-37020i1NZFXE..NHP130¥470201204-201407

main16271-40020i1KRFE..KSP130¥440201107-201404

*132

main16271-47031i1NRFE..NSP130¥490201107-201407

90105W0112

main90105-W0112

90105W0229

main90105-W0229

9155100820

main91551-00820¥80

9155100845

main91551-00845¥100

9155100850

main91551-00850¥110

9155180820

main91551-80820¥80

9155180845

main91551-80845¥110

9 parts on this diagram · 4 diagrams in section
