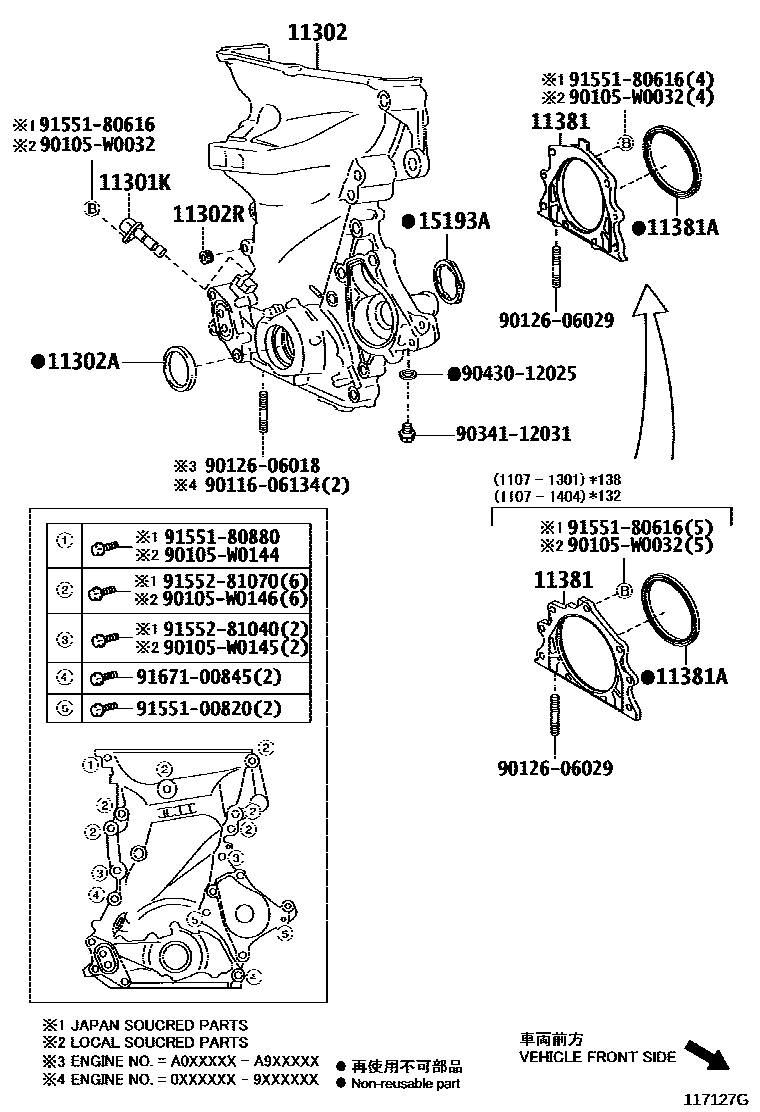

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1W/O(DPF) 0004 1W(DPF)

11301KSENSOR, CRANK POSITION

main90919-05062i1KRFE..KSP130201107-201407

(J)

main90919-05079i1NRFE..NSP130201107

main90919-W5002i1KRFE..KSP130201107-201407

(L)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0N010i1NDTV..NLP130201203-201405

sub11310-0N040

sub13559-33021

main11310-0N011i1NDTV..NLP130201405-201407

sub11310-0N012

sub13559-33021

main11310-0Q021i1KRFE..KSP130201107-201307

*138

sub11310-0Q022

main11310-0Q022i1KRFE..KSP130201307-201407

*138

main11310-33030i1NDTV..NLP130201107-201203

main11310-40041i1KRFE..KSP130201107-201404

*132

main11310-47040i1NRFE..NSP130201107-201308

sub11310-47041

sub91552-81050

sub91671-10825

main11310-47041i1NRFE..NSP130201308-201407

sub11310-47042

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NSP130201107-201303

sub90311-25032

main90311-25032i1NRFE..NSP130201303

main90311-38092i1KRFE..KSP130201107-201404

*132

main90311-38092i1KRFE..KSP130201107-201407

*138,(J)

main90311-40033i1NDTV..NLP130201107-201303

sub90311-40040

main90311-40040i1NDTV..NLP130201303

main90311-W0013i1KRFE..KSP130201107-201407

*138,(L)

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KSP130201107-201407

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0Q010i1KRFE..KSP130201107-201310

*138,(L)

sub11381-0Q020

main11381-0Q020i1KRFE..KSP130201310-201407

*138,(L)

main11381-40010i1KRFE..KSP130201107-201405

*138,(J)

sub11381-40030

main11381-40010i1KRFE..KSP130201107-201402

*132

sub11381-40030

main11381-40030i1KRFE..KSP130201402-201404

*132

11381ASEAL, ENGINE REAR OIL

main90311-73004i1KRFE..KSP130201107-201212

*132

sub90311-73005

main90311-73004i1KRFE..KSP130201107-201404

*138,(J)

sub90311-73005

main90311-73005i1KRFE..KSP130201212-201404

*132

main90311-73005i1KRFE..KSP130201405-201407

*138,(J)

main90311-W0014i1KRFE..KSP130201107-201404

*138,(L)

sub90311-W0018

main90311-W0018i1KRFE..KSP130201405-201407

*138,(L)

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KSP130201107-201407

90105W0032

main90105-W0032

90105W0144

main90105-W0144

90105W0145

main90105-W0145

90105W0146

main90105-W0146

9011606134

main90116-06134

9012606018

main90126-06018

9012606029

main90126-06029

9034112031

main90341-12031

9043012025

main90430-12025

9155100820

main91551-00820

9155180616

main91551-80616

9155180880

main91551-80880

9155281040

main91552-81040

9155281070

main91552-81070

9167100845

main91671-00845

22 parts on this diagram · 4 diagrams in section
