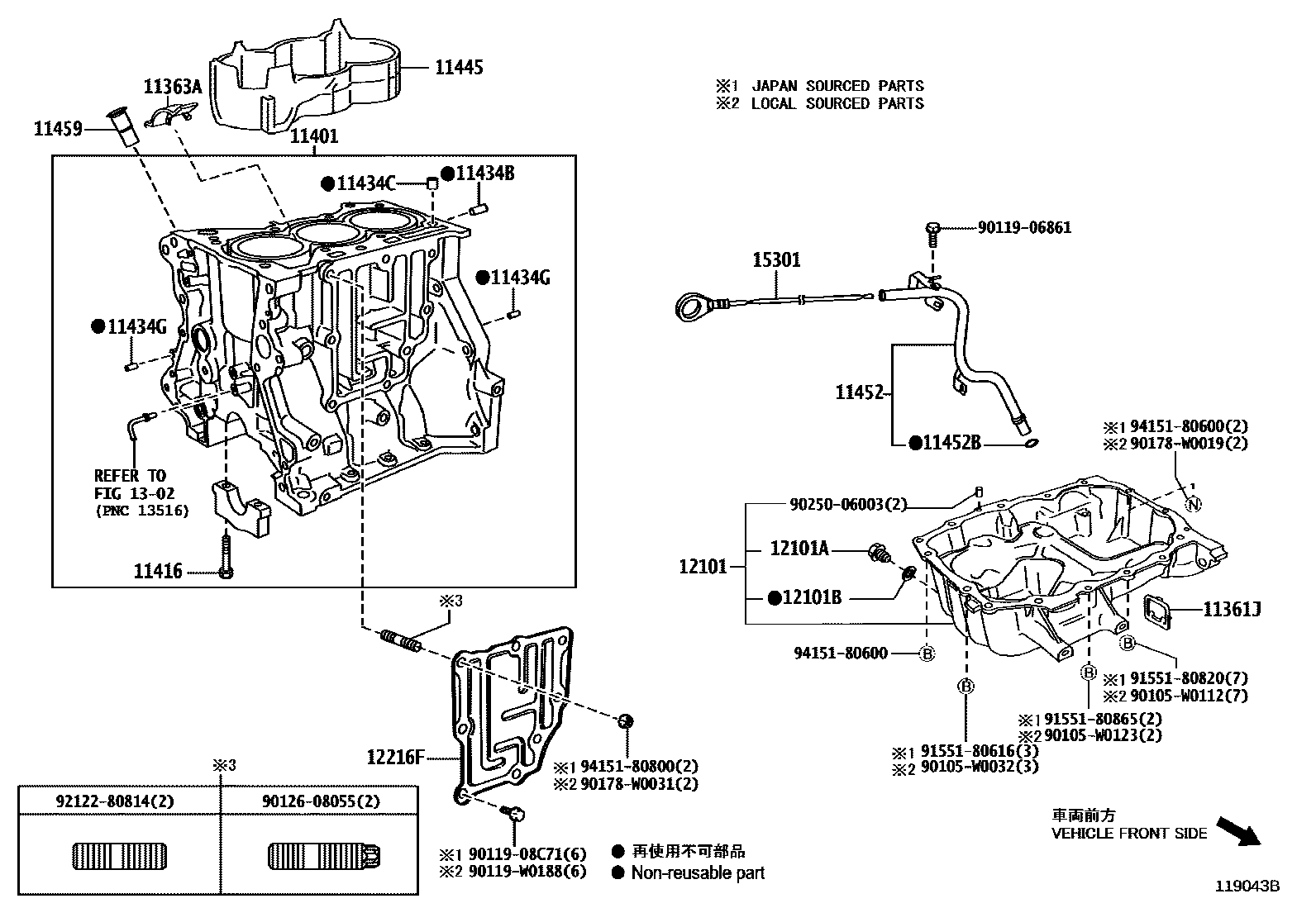

CYLINDER BLOCK

0001 1ENGINE NO. = 0XXXXXX - 9XXXXX0002 1ENGINE NO. = A0XXXXX - A9XXXX0003 1 0004 1 0005 1W(DPF) 0006 1W/O(DPF) 0007 1 0008 1 0009 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFXE..NHP130201204

main11361-23020i1KRFE..KSP130201201

main11361-28010i1KRFE..KSP130201107-201112

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Q010i1KRFE..KSP130201107

(L)

main11363-21020i1NZFXE..NHP130201204

main11363-40010i1KRFE..KSP130201107

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11401-0Q011i1KRFE..KSP130201107-201310

*138,(L)

sub11381-0Q020

main11401-0Q030i1KRFE..KSP130201310-201407

*138,(L)

main11401-40041i1KRFE..KSP130201107-201312

*138,(J)

main11401-40060i1KRFE..KSP130201401-201407

*138,(J)

main11401-80804i1NZFXE..NHP130201204-201407

sub11401-80883

main11410-39085i1NDTV..NLP130201107-201302

main11410-39155i1NDTV..NLP130201302-201407

main11410-49025i1NRFE..NSP130201107-201307

main11410-49026i1NRFE..NSP130201307-201309

sub13011-47033

sub13101-47022

main11410-49028i1NRFE..NSP130201309-201407

sub11410-49045

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531×8i1KRFE..KSP130201107-201407

main90910-02125×10i1NZFXE..NHP130201204-201407

sub90910-02207

main90910-02154×10i1NDTV..NLP130201107-201407

main90910-02175×10i1NRFE..NSP130201107-201407

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1NRFE..NSP130201107

L=22,OD=10

main90250-10232×2i1KRFE..KSP130201107-201407

L=15,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i1NZFXE,1NDTV..NHP130,NLP130201107

L=18,OD=8

main90253-12002×2i1KRFE..KSP130201107-201407

L=12,OD=12

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-06003×4i1KRFE..KSP130201107-201407

main90250-10113×2i1NZFXE,1NDTV..NHP130,NLP130201107

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-33010i1NDTV..NLP130201107

main11445-40010i1KRFE..KSP130201107-201407

main11445-47010i1NRFE..NSP130201107

11452GUIDE, OIL LEVEL GAGE

main11409-40060i1KRFE..KSP130201107-201407

main11409-47011i1NRFE..NSP130201107-201207

main11409-47012i1NRFE..NSP130201207

main11452-21040i1NZFXE..NHP130201204-201306

TYPE A:REFER ILLUST.

main11452-21041i1NZFXE..NHP130201306

TYPE B:REFER ILLUST.

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KSP130201107-201407

main96741-19010i1NRFE..NSP130201107

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-40010×2i1KRFE..KSP130201107

12101PAN SUB-ASSY, OIL

main12101-0N010i1NDTV..NLP130201208-201405

(L)

main12101-0N011i1NDTV..NLP130201405

main12101-0Q020i1KRFE..KSP130201107-201407

(L)

main12101-33060i1NDTV..NLP130201208-201405

(J)

main12101-40100i1KRFE..KSP130201107-201407

(J)

main12101-47100i1NRFE..NSP130..CVFC201107-201207

sub91551-F0855

main12101-47101i1NRFE..NSP130..CVFC201207

main12101-47120i1NRFE..NSP130..6F201107-201203

sub91551-F0855

main12101-47121i1NRFE..NSP130..6F201203

main12111-21070i1NZFXE..NHP130201204

sub12111-21090

main12101-33040i1NDTV..NLP130..LHD..6F201107

EXHAUST EMISSION CONTROL-GENERAL DESTINATION

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFXE,1NDTV..NHP130,NLP130201107

main90341-12032×2i1KRFE..KSP130201107-201407

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43037i1KRFE..KSP130201107-201407

(L)

main90430-12031i1KRFE..KSP130201107-201407

(J)

12216FPLATE, VENTILATION BAFFLE

main12216-40020i1KRFE..KSP130201107-201407

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21050i1NZFXE..NHP130201204

sub15301-21051

main15301-33050i1NDTV..NLP130201107

main15301-40100i1KRFE..KSP130201107-201407

*138

main15301-47050i1NRFE..NSP130201107

90105W0032

main90105-W0032

90105W0112

main90105-W0112

90105W0123

main90105-W0123

9011906861

main90119-06861

9011908C71

main90119-08C71

90119W0188

main90119-W0188

9012608055

main90126-08055

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9025006003

main90250-06003

9155180616

main91551-80616

9155180820

main91551-80820

9155180865

main91551-80865

9212280814

main92122-80814

9415180600

main94151-80600

9415180800

main94151-80800

33 parts on this diagram · 9 diagrams in section
