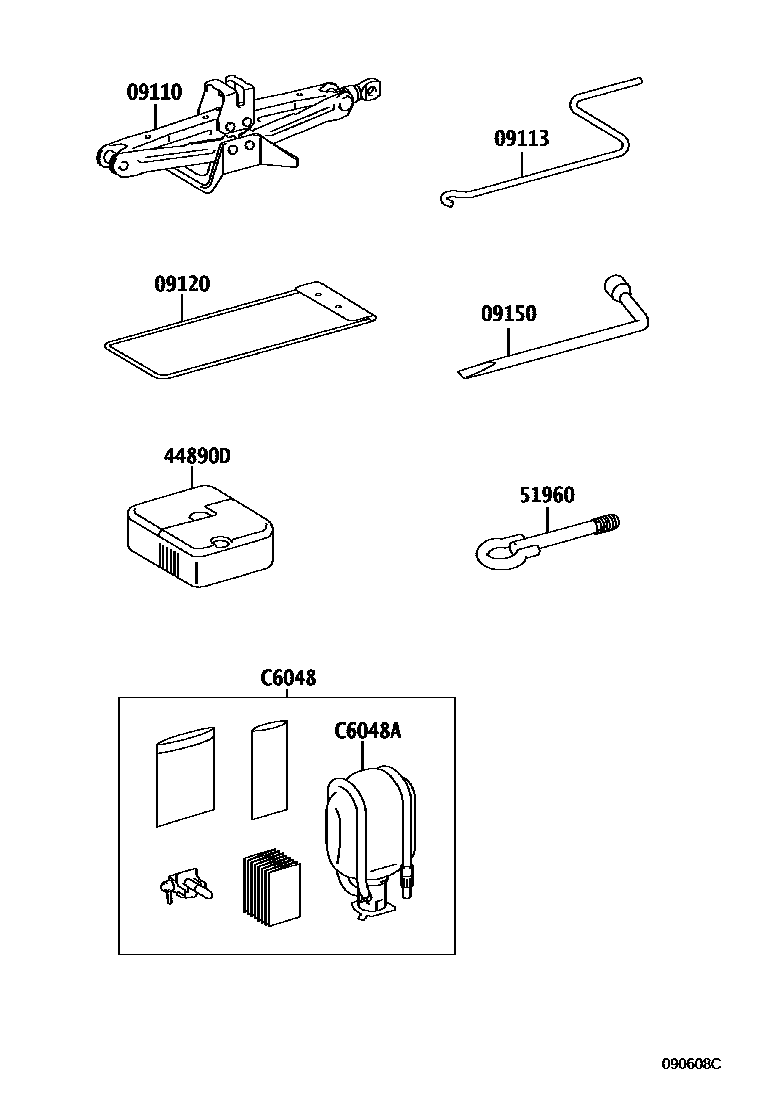

STANDARD TOOL

09110JACK ASSY

09113HANDLE, JACK

09120BAG, TOOL

main09120-37030supersedes 09120-37030i201107-201301

09150WRENCH, HUB NUT BOX

44890DCOMPRESSOR ASSY, AIR

TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK&SPARE TIRE-GROUND TIRE (STEEL)

main44890-52020supersedes 44890-52020i201107-201204

TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK&SPARE TIRE-GROUND TIRE (STEEL)

main44890-52021i201301-201302

TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM

51960HOOK ASSY, FRONT

C6048REPAIR SET, TIRE

main42683-52021supersedes 42683-52021i201301-201302

SPARE TIRE-GROUND TIRE (ALLOY WHEEL)

C6048ASEALANT, REPAIR TIRE

mainC604802010i201302-201407

TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK&SPARE TIRE-GROUND TIRE (STEEL)

mainC604852020supersedes C604852020i201107-201204

TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK&SPARE TIRE-GROUND TIRE (STEEL)

mainC604852021supersedes C604852021i201205-201302

TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK&SPARE TIRE-GROUND TIRE (STEEL)

8 parts on this diagram · 2 diagrams in section
