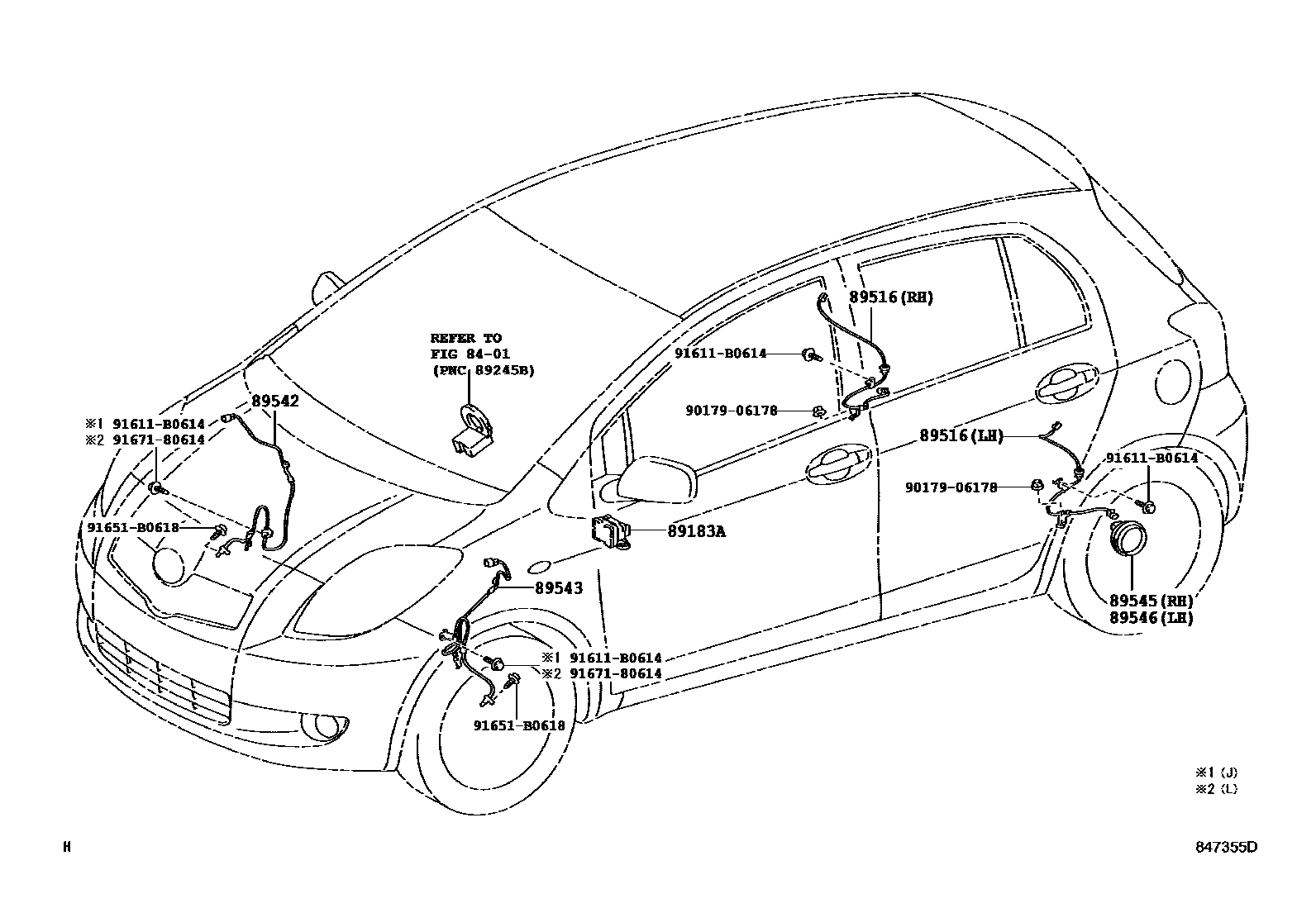

ABS & VSC

8401

89183ASENSOR, YAWRATE

89516WIRE, SKID CONTROL SENSOR

main89516-0D070iKSP90,NLP90,SCP90..FRP200511-200811

RH

main89516-0D080iKSP90,NLP90,SCP90..FRP200511-200811

LH

89542SENSOR, SPEED, FRONT RH

main89542-0D020iKSP90,NLP90,SCP90..FRP200511-200811

89543SENSOR, SPEED, FRONT LH

main89543-0D020iKSP90,NLP90,SCP90..FRP200511-200811

89545SENSOR, SPEED, REAR RH

main89544-0D030iKSP90,NLP90,SCP90..FRP200511-201107

89546SENSOR, SPEED, REAR LH

main89544-0D030iKSP90,NLP90,SCP90..FRP200511-201107

9017906178

main90179-06178¥100

91611B0614

main91611-B0614¥110

91651B0618

main91651-B0618¥100

9167180614

main91671-80614¥60

11 parts on this diagram · 1 diagram in section
