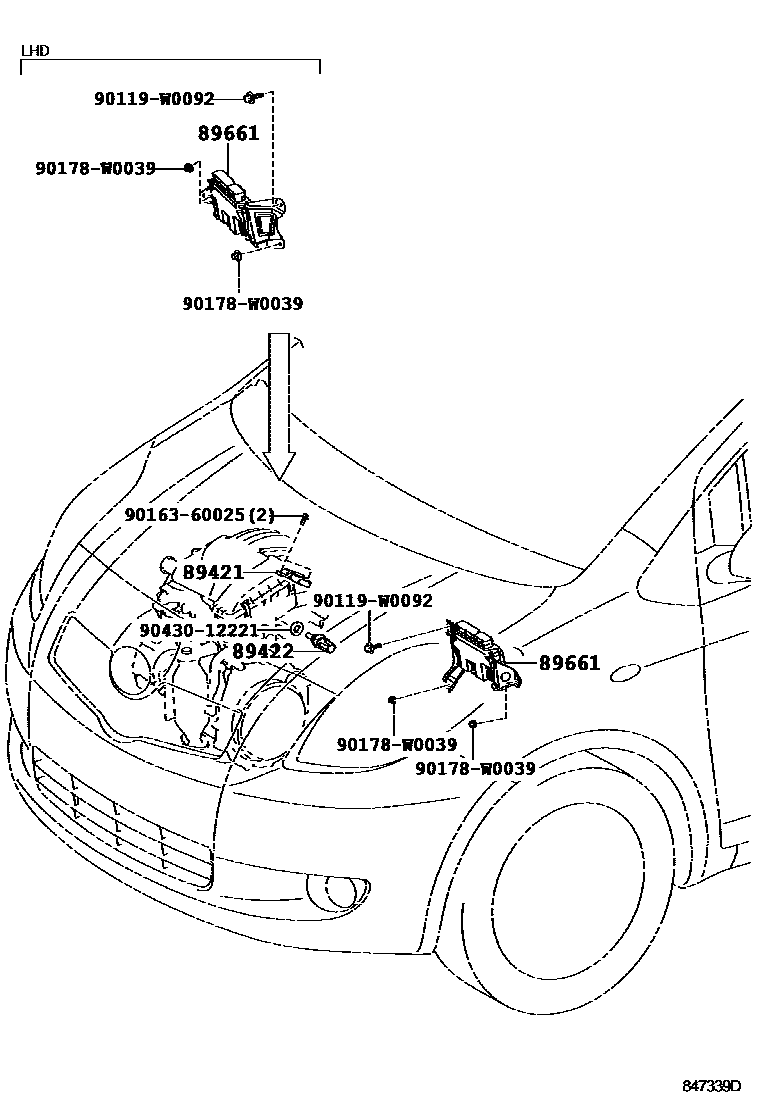

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNSP90..FRP201007-201107

main89421-52010iKSP90..FRP200511-201107

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0H010iKSP90,SCP90..FRP200511-200811

sub89422-33030

main89422-33030iKSP90,NSP90..FRP200811

89661COMPUTER, ENGINE CONTROL

main89660-0D390iKSP90..FRP..LHD..5F200511-200811

main89660-0D400iKSP90..FRP..RHD..5F200511-200811

main89660-0D410iKSP90..FRP..LHD..5FS200511-200811

main89660-0D420iKSP90..FRP..RHD..5FS200511-200811

main89660-0DD80iKSP90..FRP..LHD..5F200811-201007

main89660-0DD90iKSP90..FRP..RHD..5F200811-201007

main89660-0DE00iKSP90..FRP..LHD..5FS200811-201006

main89660-0DE10iKSP90..FRP..RHD..5FS200811-201006

main89660-0DP10iKSP90..FRP..LHD201007

main89660-0DP20iKSP90..FRP..RHD201007

main89661-0D310iSCP90..FRP..5F200511-200802

main89661-0D311iSCP90..FRP..5F200802-200811

main89661-0D400iSCP90..FRP..5FS200511-200802

main89661-0D401iSCP90..FRP..5FS200802-200811

main89661-0DB00iNSP90..FRP..6F200811-200909

sub89661-0DB01

main89661-0DB01iNSP90..FRP..6F200910-201007

main89661-0DB30iNSP90..FRP..6FS200902-200909

sub89661-0DB31

main89661-0DB31iNSP90..FRP..6FS200910-201007

main89661-0DD40iNSP90..FRP..6F201007

main89661-0DD60iNSP90..FRP..6FS201007

90119W0092

main90119-W0092

9016360025

main90163-60025

90178W0039

main90178-W0039

9043012221

main90430-12221

7 parts on this diagram · 3 diagrams in section
