METER

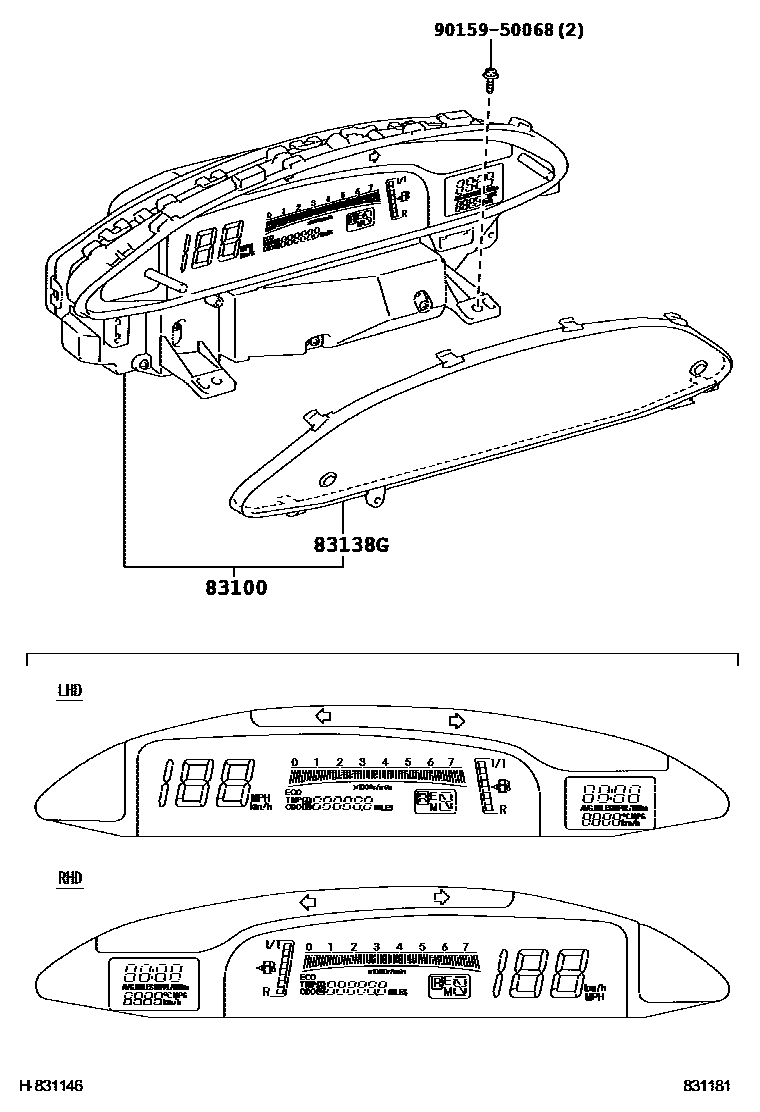

83100METER ASSY, COMBINATION

main83800-0D500i200511-200805

main83800-0D501i200806-200811

main83800-0D630i200511-200805

main83800-0D631i200806-200811

main83800-0D660i200511-200805

main83800-0D661i200806-200811

main83800-0D690i200511-200805

main83800-0D691i200806-200811

main83800-0DJ00supersedes 83800-0DJ60i200811-201107

ENGINE-WITHOUT(STOP & START SYSTEM)

main83800-0DJ90i200811-201107

main83800-0D070i200911-201107

EAST PACKAGE&ENGINE-WITHOUT(STOP & START SYSTEM)

main83800-0D480supersedes 83800-0D491i200511-200805

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D481supersedes 83800-0D491i200806-200811

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D610supersedes 83800-0D621i200511-200805

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D611supersedes 83800-0D621i200806-200811

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D640supersedes 83800-0D651i200511-200805

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D641supersedes 83800-0D651i200806-200811

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D670supersedes 83800-0D681i200511-200805

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0D671supersedes 83800-0D681i200806-200811

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0DF70i201001-201107

WEST PACKAGE&SPEEDOMETER-ANALOG MILE,KM/H W/TACHO

main83800-0DF80supersedes 83800-0DJ30i200902-200911

S PACKAGE

main83800-0DG00supersedes 83800-0DJ50i200911-201107

WEST PACKAGE&SPEEDOMETER-ANALOG MILE,KM/H W/TACHO

main83800-0DG10i200911-201107

EAST PACKAGE

main83800-0DG30i200811-200911

SPEEDOMETER-ANALOG MILE,KM/H W/TACHO

main83800-0DG40i200811-200911

S PACKAGE

main83800-0DG60i200911-201107

WEST PACKAGE&SPEEDOMETER-ANALOG MILE,KM/H W/TACHO

main83800-0DG70supersedes 83800-0DK20i200902-200911

S PACKAGE

main83800-0DG90supersedes 83800-0DK40i200902-200911

SPEEDOMETER-ANALOG MILE,KM/H W/TACHO

main83800-0DJ10supersedes 83800-0DJ20i200811-201107

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0DJ40supersedes 83800-0DJ50i200811-201107

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0DJ70supersedes 83800-0DJ80i200811-201107

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0DK00supersedes 83800-0DK10i200811-201107

SPEEDOMETER-DIGTL KM/H W/TACHO

main83800-0DK30supersedes 83800-0DK40i200902-201107

SPEEDOMETER-DIGTL KM/H W/TACHO

83138GGLASS, COMBINATION METER

main83852-0D480i200811-201107

main83852-0D500i200511-200811

main83852-0D070i201001-201107

WEST PACKAGE&SPEEDOMETER-ANALOG MILE,KM/H W/TACHO

9015950068

main90159-50068

3 parts on this diagram · 2 diagrams in section
