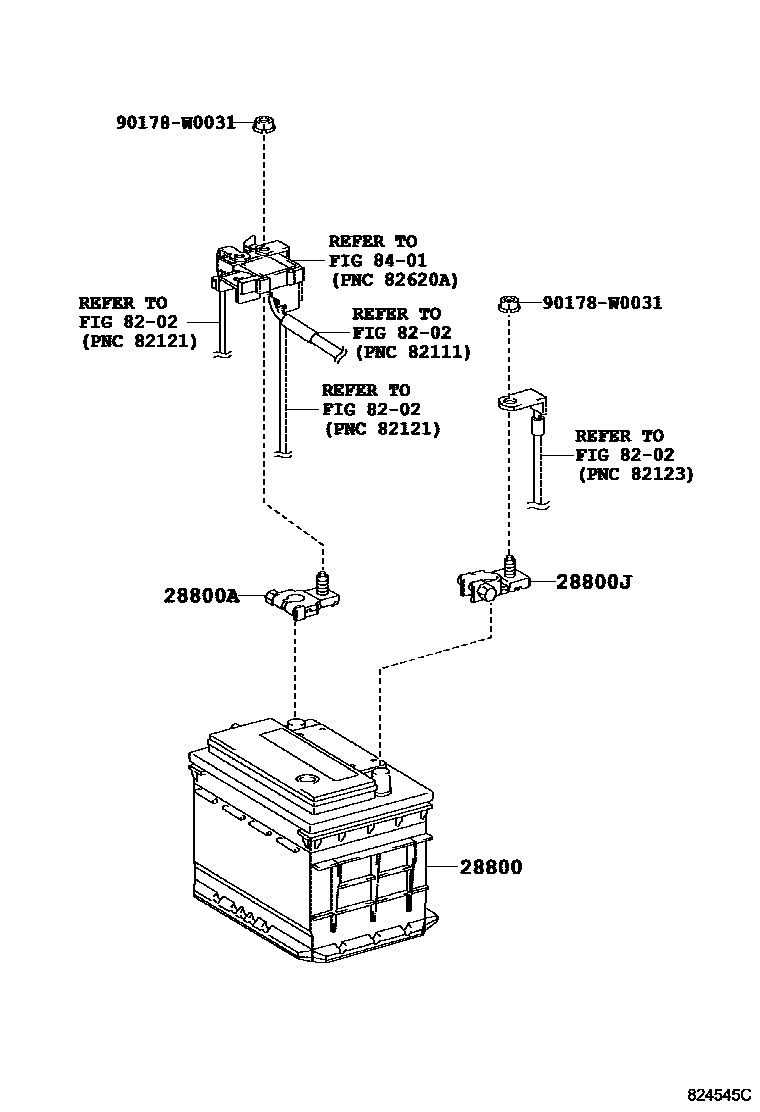

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-0J030i1KRFE,1NRFE..KSP90,NSP90..FRP..(5F,5FS,6FS)200811-201107

LN1,ENGINE-WITHOUT(STOP & START SYSTEM)

main28800-0J030i1NRFE..NSP90..FRP..LHD..6F200511-201107

LN1

main28800-0N030i1NDTV..NLP90..FRP200511-201107

LN2

main28800-0Y010i1NRFE..NSP90..FRP..6F200811-201107

LN2

main28800-0Y010i1NRFE..NSP90..FRP..6F200811-201107

LN2,BATTERY-ECONOMY RUNNING SPEC

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1KRFE,1NDTV,2SZFE..KSP90,NLP90,SCP90..FRP200511-200811

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1KRFE,1NDTV,2SZFE..KSP90,NLP90,SCP90..FRP200511-200811

8202

8401

90178W0031

main90178-W0031

6 parts on this diagram · 2 diagrams in section
