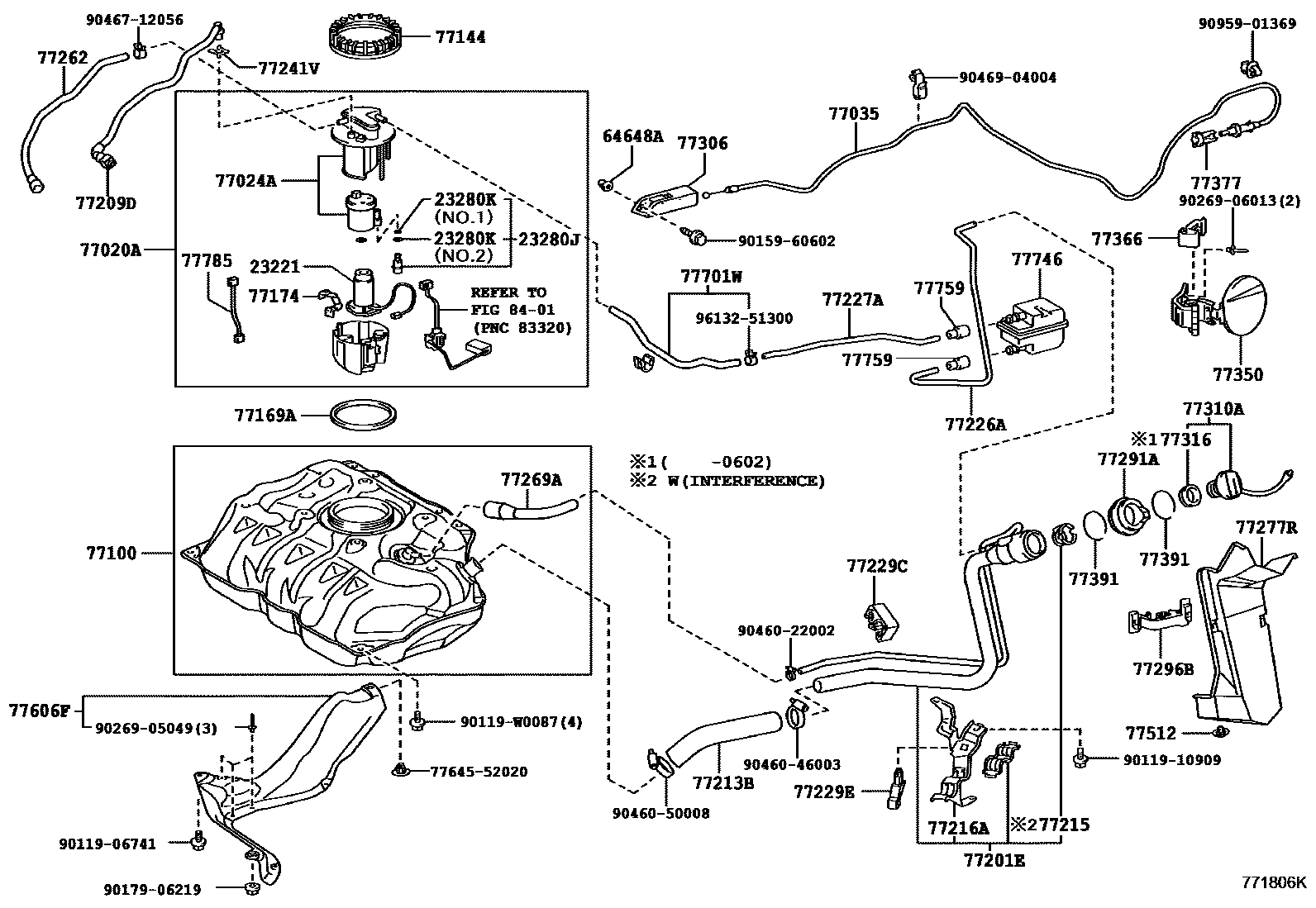

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE

23221PUMP, FUEL

main23220-0Q030i1KRFE,2SZFE..KSP90,SCP90..FRP200511-200608

sub23220-0Q031

main23220-0Q031i1KRFE,2SZFE..KSP90,SCP90..FRP200609-200811

main23220-0Q040i1KRFE,1NRFE..KSP90,NSP90..FRP200811-201107

sub23220-0Q041¥31,700

sub77785-12010¥870

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1KRFE,1NRFE..KSP90,NSP90..FRP¥6,000200511-200707

main23280-21020i1KRFE,2SZFE..KSP90,SCP90..FRP¥9,700200708-200811

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1KRFE,2SZFE..KSP90,SCP90..FRP¥140200511-200811

NO.1

main90301-15024i1KRFE,2SZFE..KSP90,SCP90..FRP¥140200511-200811

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32020iKSP90,NLP90,SCP90..FRP¥100200511-200811

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D080iKSP90,SCP90..FRP200511-200608

sub77020-0D081

main77020-0D081iKSP90,SCP90..FRP200609-200811

main77020-0D130iKSP90,NSP90..FRP200811

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D050iKSP90,SCP90..FRP200511-200703

sub77024-0D051

main77024-0D051iKSP90,SCP90..FRP200704-200811

main77024-0D080iKSP90,NSP90..FRP¥13,300200811

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0D090iKSP90,NLP90,NSP90..FRP..RHD200511-200811

main77035-0D100iKSP90,NLP90,SCP90..FRP..LHD200511-200811

77100TANK ASSY, FUEL

main77001-0D070iKSP90,SCP90..FRP200511-201007

sub77001-0D190

main77001-0D080iNLP90..FRP200511-200811

main77001-0D190iKSP90,NSP90..FRP201007

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iKSP90,SCP90..FRP¥2,490200511-200811

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iKSP90,SCP90..FRP¥260200511-200811

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D020iKSP90,SCP90..FRP200511-200811

main77174-0D050iKSP90,NSP90..FRP¥440200811

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-52210iKSP90,SCP90..FRP¥11,700200511-200801

main77201-52211iKSP90,SCP90..FRP¥10,700200801-200811

main77201-52260iNLP90..FRP200511-200707

main77201-52261iNLP90..FRP200707-200811

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D030iKSP90,SCP90..FRP200511-200811

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52130iNLP90..FRP¥3,370200511-200811

sub77213-52190¥3,380

main77213-52130iKSP90,SCP90..FRP¥3,370200511-200811

FUEL INLET-WITH(W/O INTERFERENCE)

sub77213-52190¥3,380

main77213-52130iKSP90,NLP90,NSP90..FRP¥3,370200811-200908

FUEL INLET-WITH(WITHOUT/INTERFERENCE)

sub77213-52190¥3,380

main77213-52190iKSP90,NSP90..FRP..(5F,6F,6FS)¥3,380200909-201007

FUEL INLET-WITH(WITHOUT/INTERFERENCE)

main77213-52190iKSP90,NLP90..FRP..(5FS,6F,6FS)¥3,380200909

main77213-52200iKSP90,NSP90..FRP201007

FUEL INLET-WITH(WITHOUT/INTERFERENCE)

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77215-51010iKSP90,SCP90..FRP¥360200511-200811

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-52100iKSP90,SCP90..FRP¥1,190200511-200801

main77216-52150iKSP90,SCP90..FRP200801-200811

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-52050iKSP90,SCP90..FRP¥1,970200511-200801

main77226-52051iKSP90,SCP90..FRP¥4,490200801-200811

77227ATUBE, FUEL TANK EVAPORATION VENT

main77227-52020iKSP90,SCP90..FRP¥1,020200511-200801

77229CCLAMP, BREATHER TUBE

main77285-52080iKSP90,SCP90..FRP¥550200511-200811

77229ECLAMP, BREATHER TUBE

main77229-52040iNLP90..FRP¥400200511-200811

77241VCLIP, TUBE JOINT

main77241-32060iNLP90..FRP¥80200511-200811

77262TUBE, FUEL EMISSION, NO.2

main77028-0D040iKSP90,SCP90..FRP200610-200811

main77028-52010iKSP90,SCP90..FRP¥1,170200511-200610

sub77028-52020¥750

77269AHOSE, FUEL TANK BREATHER

main77269-0D040iKSP90,NLP90,SCP90..FRP200610-200811

main77269-52100iKSP90,NLP90,SCP90..FRP200511-200609

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52030iNLP90..FRP¥5,300200511-200801

main77277-52031iKSP90,NLP90,NSP90..FRP¥4,190200707-200811

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D010iKSP90,NLP90,NSP90..FRP200511-200811

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52030iNLP90..FRP¥960200511-200811

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iKSP90,NLP90,SCP90..FRP..RHD¥2,640200511-201011

main77306-52040iKSP90,NLP90,SCP90..FRP..LHD¥2,640200511-201011

main77306-52050iKSP90,NLP90,NSP90..FRP..RHD¥1,850201011

main77306-52060iKSP90,NLP90,NSP90..FRP..LHD¥2,050201011

77310ACAP ASSY, FUEL TANK

main77300-20020iNLP90..FRP¥2,200200811

main77300-52030iKSP90,NLP90,SCP90..FRP¥1,560200511-200811

77316GASKET, FUEL TANK CAP

main77316-52020iKSP90,NLP90,SCP90..FRP¥390200511-200602

sub77316-52040¥230

main77316-52040iKSP90,NLP90,NSP90..FRP¥230200811-201107

77350LID ASSY, FUEL FILLER OPENING

main77350-52130iKSP90,NLP90,SCP90..FRP¥3,080200511-201107

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iKSP90,NLP90,SCP90..FRP¥60200511-200811

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0D010iKSP90,NLP90,SCP90..FRP200511-200811

77391RING, FUEL INLET BOX

main77391-12020iKSP90,NLP90,SCP90..FRP¥180200511-200811

77512BRACKET, FUEL TANK, REAR

main77512-35140iNLP90..FRP¥230200511-200811

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-0D010iKSP90,NLP90,NSP90..FRP200511-201107

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D040iKSP90,SCP90..FRP200608-200811

main77701-52010iKSP90,SCP90..FRP¥1,720200511-200607

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-33010iKSP90,SCP90..FRP¥3,660200511-200801

77759HOSE, CHARCOAL CANISTER

main77759-52010iKSP90,SCP90..FRP¥460200511-200801

FUEL INLET-WITH(W/O INTERFERENCE)

77785HARNESS, FUEL PUMP

main77785-0D030iKSP90,SCP90..FRP200511-201107

8401

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020¥100

9011906741

main90119-06741¥80

9011910909

main90119-10909¥100

90119W0087

main90119-W0087

9015960602

main90159-60602¥60

9017906219

main90179-06219¥70

9026905049

main90269-05049¥40

9026906013

main90269-06013¥60

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9046050008

main90460-50008¥240

9046712056

main90467-12056¥70

9046904004

main90469-04004¥70

9095901369

main90959-01369¥100

9613251300

main96132-51300¥120

55 parts on this diagram · 7 diagrams in section
