MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
AIR SPATS-W/FRONT & CENTER & REAR
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
AIR SPATS-W/FRONT & CENTER & REAR
75865EPROTECTOR, ROCKER PANEL MOULDING, RH
AIR SPATS-W/FRONT & CENTER & REAR
AIR SPATS-W/ FRONT, W/O CENTER & REAR
AIR SPATS-WITH(FRONT), WITHOUT(CENTER & REAR)
75866EPROTECTOR, ROCKER PANEL MOULDING, LH
AIR SPATS-W/FRONT & CENTER & REAR
AIR SPATS-W/ FRONT, W/O CENTER & REAR
AIR SPATS-WITH(FRONT), WITHOUT(CENTER & REAR)
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-52060
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-52060
76851COVER, FRONT SPOILER
76851ACOVER, FRONT SPOILER, RH
AIR SPATS-W/FRONT & CENTER & REAR
76852ACOVER, FRONT SPOILER, LH
AIR SPATS-W/FRONT & CENTER & REAR
76869CGROMMET, SCREW, NO.1
AIR SPATS-W/FRONT & CENTER & REAR
76869DSCREW, NO.2
AIR SPATS-W/FRONT & CENTER & REAR
9015960498
main90159-60498
9017606050
main90176-06050
9018305050
main90183-05050
9018306029
main90183-06029
9018306065
main90183-06065
9018906013
main90189-06013
9018906226
main90189-06226
9046710206
main90467-10206
9356056016
main93560-56016
93590A5016
main93590-A5016

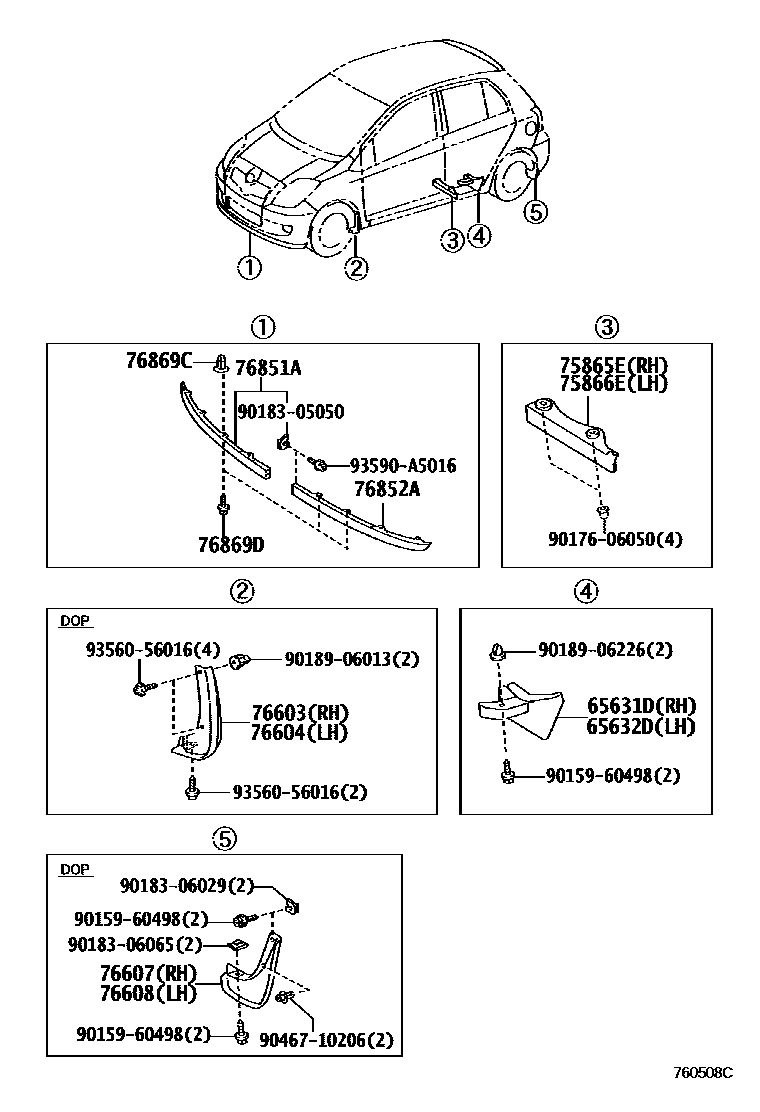

23 parts on this diagram · 2 diagrams in section
