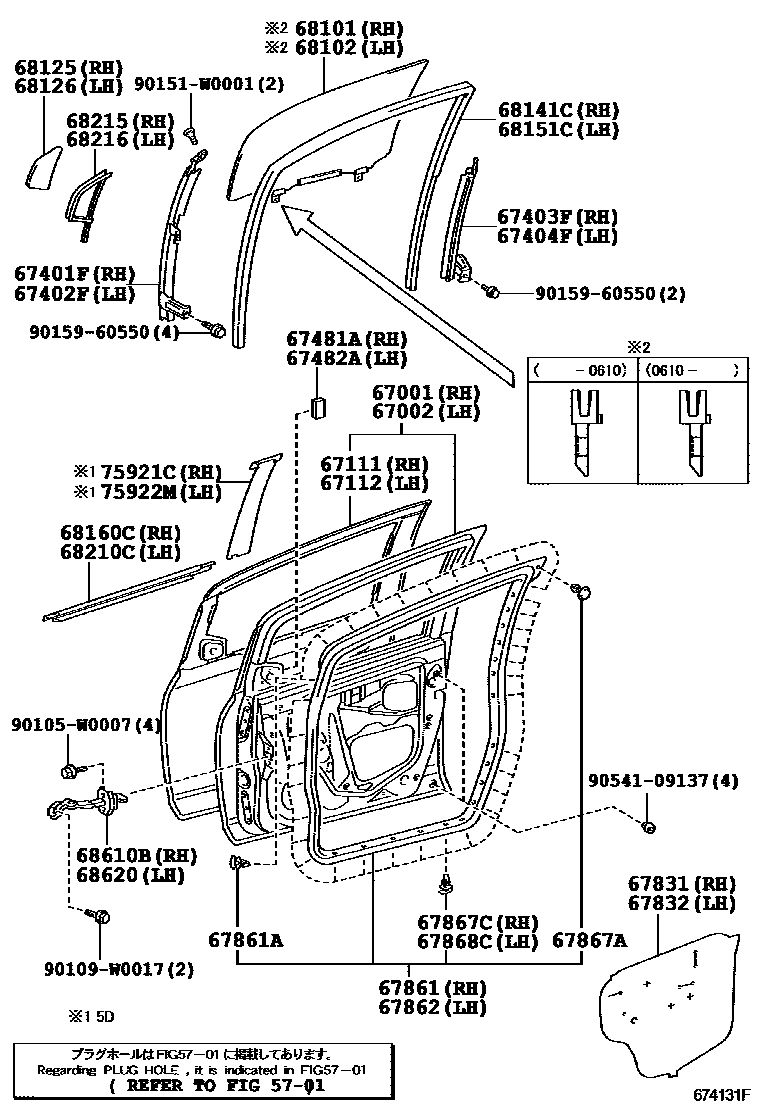

FRONT DOOR PANEL & GLASS
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
67832COVER, FRONT DOOR SERVICE HOLE, LH
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
RH
LH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
BLACK
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
T=3.5,GREEN
68125GLASS, FRONT DOOR FIX WINDOW, RH
T=3.5,GREEN
68126GLASS, FRONT DOOR FIX WINDOW, LH
T=3.5,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
sub68215-52011
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
sub68216-52011
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
90105W0007
main90105-W0007
90109W0017
main90109-W0017
90151W0001
main90151-W0001
9015960550
main90159-60550
9054109137
main90541-09137
38 parts on this diagram · 2 diagrams in section
