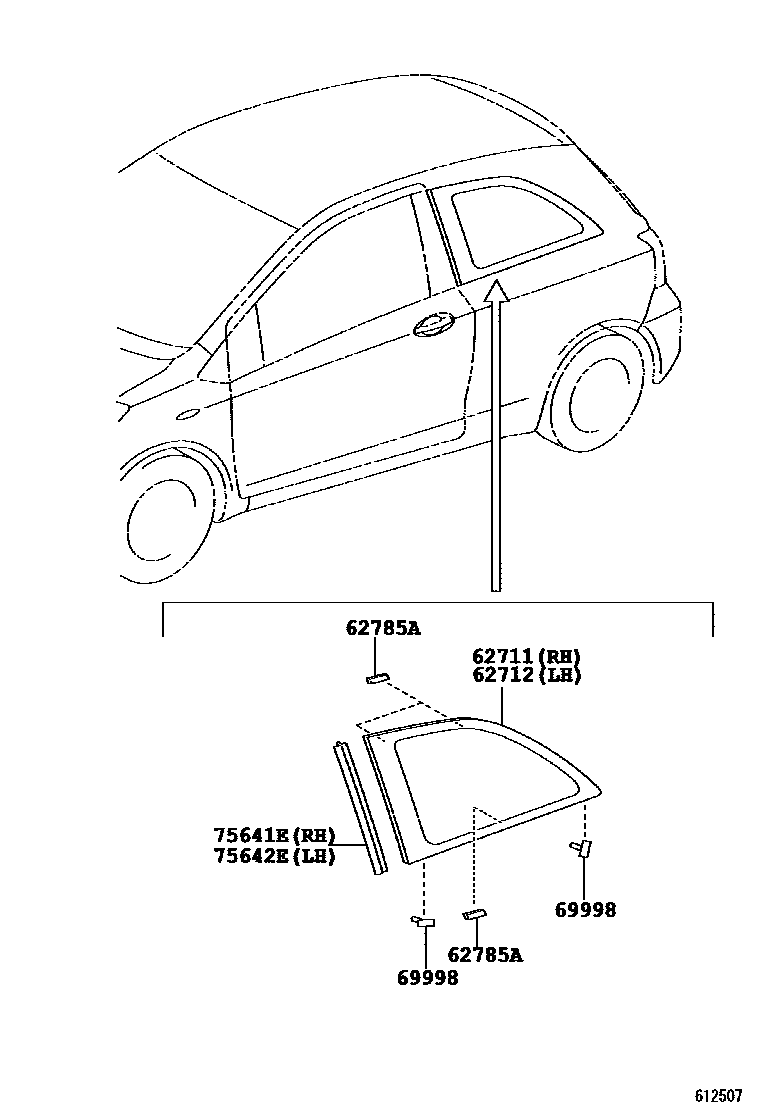

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-0D020iKSP90,NLP90,SCP90..FRP..3D200601-200806

*UVCT,T=3.1,GREEN

sub62711-0D021

main62711-0D021iKSP90,NLP90,SCP90..FRP..3D200806-200811

*UVCT,T=3.1,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-0D020iKSP90,NLP90,SCP90..FRP..3D200601-200806

*UVCT,T=3.1,GREEN

sub62712-0D021

main62712-0D021iKSP90,NLP90,SCP90..FRP..3D200806-200811

*UVCT,T=3.1,GREEN

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iKSP90,NLP90,SCP90..FRP..3D200601-200811

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52030iKSP90,NLP90,SCP90..FRP..3D200601-200811

75641EMOULDING, QUARTER WINDOW, RH

main75641-0D010iKSP90,NLP90,SCP90..FRP..3D200601-200811

sub75641-52040

75642EMOULDING, QUARTER WINDOW, LH

main75641-0D010iKSP90,NLP90,SCP90..FRP..3D200601-200811

sub75641-52040

6 parts on this diagram · 1 diagram in section
