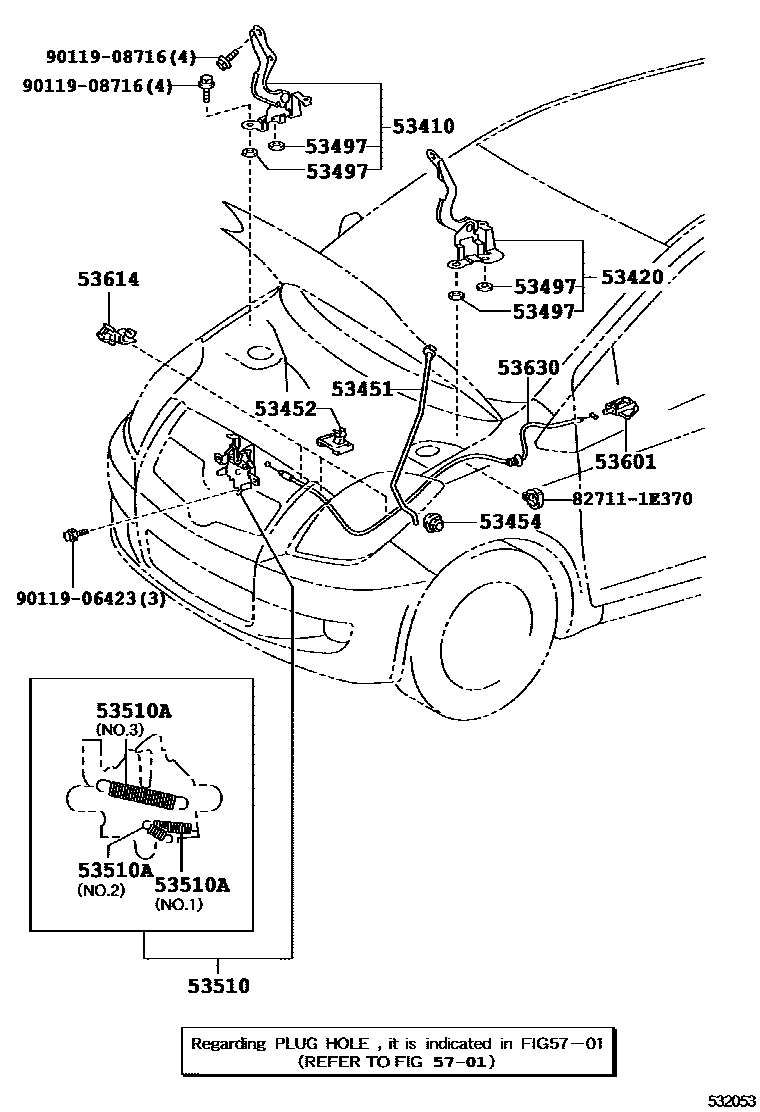

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D120iKSP90,NLP90,NSP90..FRP200511-201107

(L)

main53410-52180iKSP90,NLP90,SCP90..FRP200802-201107

(J)

53420HINGE ASSY, HOOD, LH

main53420-0D120iKSP90,NLP90,SCP90..FRP200511-201107

(L)

main53420-52180iKSP90,NLP90,NSP90..FRP200802-201107

(J)

53451ROD, HOOD SUPPORT

main53440-0D030iKSP90,NLP90,NSP90..FRP200511-200811

53452HOLDER, HOOD STAY

main53452-0D010iKSP90,NLP90,SCP90..FRP200511-200811

53454CLIP, HOOD SUPPORT ROD

main53454-52020iKSP90,NLP90,SCP90..FRP200511-200811

53497PAD, HOOD HINGE, NO.1

main53497-05010iKSP90,NLP90,SCP90..FRP200511-200811

T=1.0

main53497-42010iKSP90,NLP90,NSP90..FRP200811

T=0.5

53510LOCK ASSY, HOOD

main53510-0D110iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main53510-0D120iNSP90..FRP..LHD..6F200811

ENGINE-WITHOUT(STOP & START SYSTEM)

main53510-0D120iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main53510-0D251iNSP90..FRP..RHD..6F200811

main53510-0D261iNSP90..FRP..LHD..6F200811

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50398iKSP90,NLP90,SCP90..FRP200511-200811

WD=0.9,CW=20.75,NO.1

main90080-50399iKSP90,NLP90,NSP90..FRP200511-200811

WD=1.2,CW=8.5,NO.2

main90506-W0002iKSP90,NLP90,NSP90..FRP200511-200811

WD=1.4,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-B0iKSP90,NLP90,NSP90..FRP200511-201107

DK.GRAY,TRIM1#

sub53601-05030

main53601-05030-E1iKSP90,NLP90,NSP90..FRP..SOL200811-201001

ASH BROWN,TRIM4#

sub53601-05030

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010iNLP90..FRP..RHD200511-200811

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D070iKSP90,NLP90,SCP90..FRP200511-200811

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906423

main90119-06423

9011908716

main90119-08716
