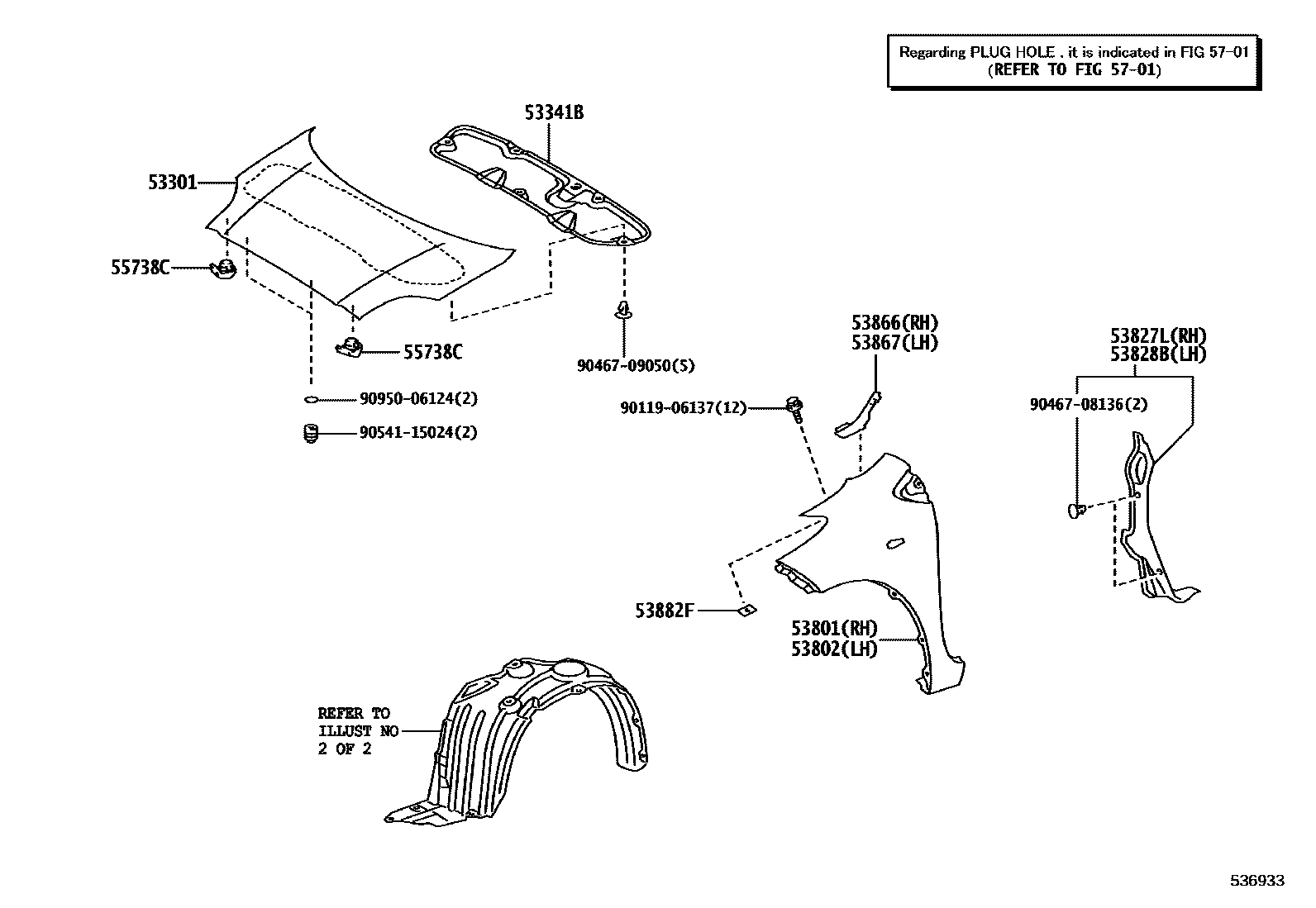

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
INSTRUMENT PANEL UNDER COVER=D & P SEAT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
INSTRUMENT PANEL UNDER COVER=D & P SEAT
INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH OUT(REAR HEATER DUCT)
INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH(REAR HEATER DUCT)
COLD SPEC, WITH OUT(REAR HEATER DUCT)
COLD SPEC, WITH(REAR HEATER DUCT)
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
INSTRUMENT PANEL UNDER COVER=D & P SEAT
INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH OUT(REAR HEATER DUCT)
INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH(REAR HEATER DUCT)
COLD SPEC, WITH OUT(REAR HEATER DUCT)
COLD SPEC, WITH(REAR HEATER DUCT)
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882FSEAL, FRONT FENDER
55738CSTOPPER, HOOD, RH
5701
9011906137
9046708136
9046709050
9054115024
9095006124
16 parts on this diagram · 4 diagrams in section
