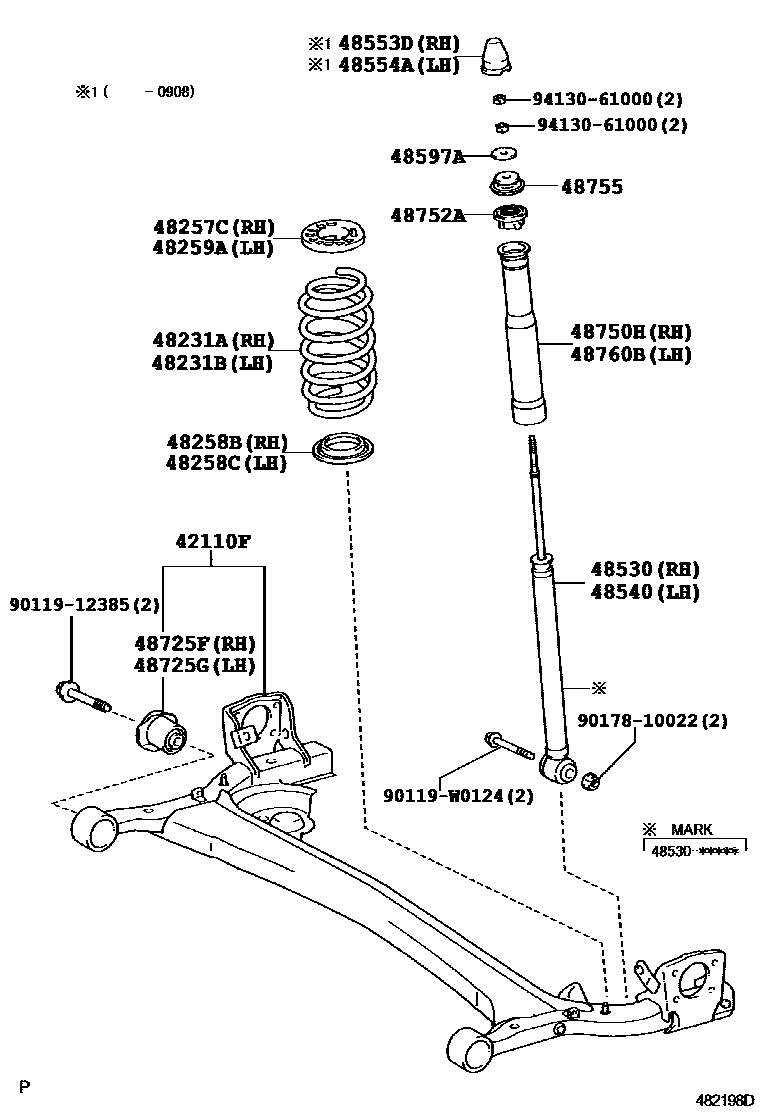

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
REAR WHEEL BRAKE-DISK(BUILT-IN)
REAR WHEEL BRAKE-DISK(BUILT-IN)
REAR WHEEL BRAKE-DISK(BUILT-IN)
48231ASPRING, COIL, REAR RH
ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE&TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK W/N
48231BSPRING, COIL, REAR LH
ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE&TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK W/N
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0D180
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0D180
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912385
main90119-12385
90119W0124
main90119-W0124
9017810022
main90178-10022
9413061000
main94130-61000
22 parts on this diagram · 1 diagram in section
