43211KNUCKLE, STEERING, RH

main43211-0D130i200511-200811

sub43211-0D230

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-W0118i201004

OD=15,TYPE A:REFER ILLUST.

main90109-15001i200811-201004

OD=15,TYPE A:REFER ILLUST.

main90109-15002i200511-200811

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003i200511-200811

OD=13.3,TYPE B:REFER ILLUST.

main90109-15004i200511-200811

OD=12.4,TYPE B:REFER ILLUST.

main90901-05001i200511-200811

OD=15.0,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004i200511-200811

43212KNUCKLE, STEERING, LH

main43212-0D130i200511-200811

sub43212-0D230

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-W0118i201004

OD=15,TYPE A:REFER ILLUST.

main90109-15001i200811-201004

OD=15,TYPE A:REFER ILLUST.

main90109-15002i200511-200811

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003i200511-200811

OD=13.3,TYPE B:REFER ILLUST.

main90109-15004i200511-200811

OD=12.4,TYPE B:REFER ILLUST.

main90901-05001i200511-200811

OD=15.0,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004i200511-200811

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i200511-200811

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i200511-200811

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09040i200511-200905

sub48068-09041

main48068-09041i200905

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-W0086i200511-200811

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126i200511-201011

main90119-14144i201011

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09040i200511-200905

sub48069-09041

main48069-09041i200905

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-W0086i200511-200811

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126i200511-201011

main90119-14144i201011

9046816022

main90468-16022

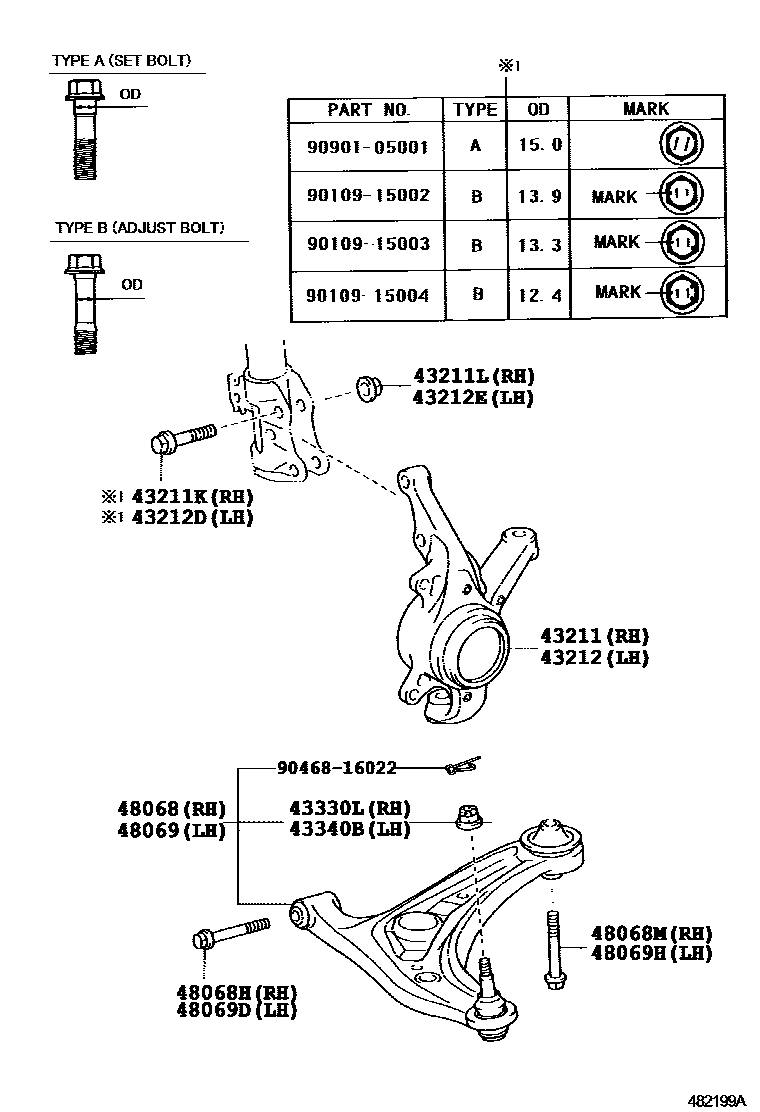

FRONT AXLE ARM & STEERING KNUCKLE
