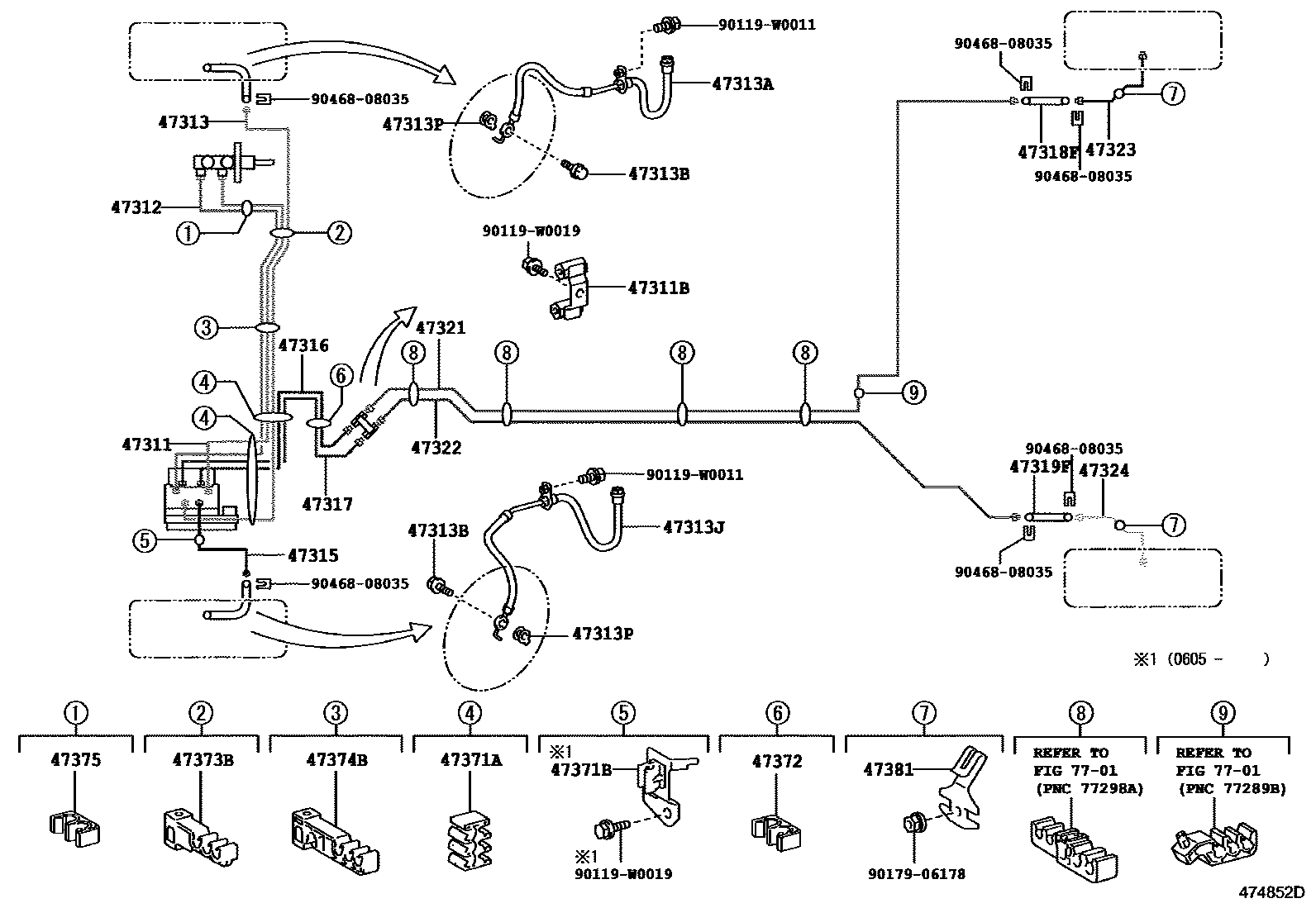

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1W(ABS & REAR DISC BRAKE) 0003 1W(VSC) 0004 1W(VSC & REAR DISC BRAKE) 0005 1W(ABS) 0006 1W(ABS & REAR DISC BRAKE) 0007 1W(VSC) 0008 1W(VSC & REAR DISC BRAKE) 0009 1W(ABS) 0010 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-0D170iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main47311-0D190iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main47311-0D320iNLP90..FRP..RHD200811

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10255iKSP90,NLP90,SCP90..FRP¥1,010200511-200811

47312TUBE, FRONT BRAKE, NO.2

main47312-0D140iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main47312-0D160iKSP90,NLP90,NSP90..FRP..LHD200511-200811

main47312-0D280iNLP90..FRP..RHD200811

47313TUBE, FRONT BRAKE, NO.3

main47313-0D060iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main47313-0D080iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main47313-0D190iKSP90,NSP90..FRP..LHD200811

main47313-0D220iNLP90..FRP..LHD200811

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2007iKSP90,NLP90,SCP90..FRP200511-200811

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKSP90,NLP90,NSP90..FRP¥220200511-200811

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2008iKSP90,NLP90,SCP90..FRP200511-200811

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKSP90,NLP90,SCP90..FRP¥280200511-200811

47315TUBE, FRONT BRAKE, NO.5

main47315-0D120iKSP90,NLP90,SCP90..FRP..RHD200511-200605

sub47315-0D250

main47315-0D121iKSP90,NLP90,SCP90..FRP..RHD200605-200811

main47315-0D140iKSP90,NLP90,SCP90..FRP..LHD200511-200811

47316TUBE, FRONT BRAKE, NO.6

main47316-0D070iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main47316-0D090iKSP90,NLP90,SCP90..FRP..LHD200511-200811

47317TUBE, FRONT BRAKE, NO.7

main47317-0D070iKSP90,NLP90,NSP90..FRP..RHD200511-200811

main47317-0D090iKSP90,NLP90,SCP90..FRP..LHD200511-200811

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2009iKSP90,NLP90,SCP90..FRP200511-200811

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2010iKSP90,NLP90,NSP90..FRP200511-200811

47321TUBE, REAR BRAKE, NO.1

main47321-0D130iKSP90,NLP90,SCP90..FRP200511-201107

47322TUBE, REAR BRAKE, NO.2

main47322-0D130iKSP90,NLP90,SCP90..FRP200511-201107

47323TUBE, REAR BRAKE, NO.3

main47323-0D010iKSP90,NLP90,SCP90..FRP200511-200811

47324TUBE, REAR BRAKE, NO.4

main47324-0D010iKSP90,NLP90,SCP90..FRP200511-200811

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00883iKSP90,NLP90,SCP90..FRP..LHD¥160200511-200811

VEHICLE STABILITY CONT-WITH

main90464-00883iKSP90,NLP90,NSP90..FRP..LHD¥160200811

VSC-WITH

main90949-01969iKSP90,NLP90,SCP90..FRP..RHD¥440200511-200811

47371BCLAMP, BRAKE TUBE, NO.6

main47371-0D010iKSP90,NLP90,SCP90..FRP..RHD200605-200811

47372CLAMP, BRAKE TUBE, NO.2

main90949-01972iKSP90,NLP90,SCP90..FRP¥110200511-200811

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D02iKSP90,NLP90,SCP90..FRP..RHD¥280200511-200811

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D27iKSP90,NLP90,SCP90..FRP..RHD¥170200511-200811

47375CLAMP, BRAKE TUBE, NO.5

main90464-00904iNLP90..FRP..RHD¥170200811

main90949-01972iKSP90,NLP90,SCP90..FRP..RHD¥110200511-200811

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020iKSP90,NLP90,SCP90..FRP¥200200511-200811

7701

90119W0011

main90119-W0011

90119W0019

main90119-W0019¥100

9017906178

main90179-06178¥100

9046808035

main90468-08035¥110

29 parts on this diagram · 10 diagrams in section
