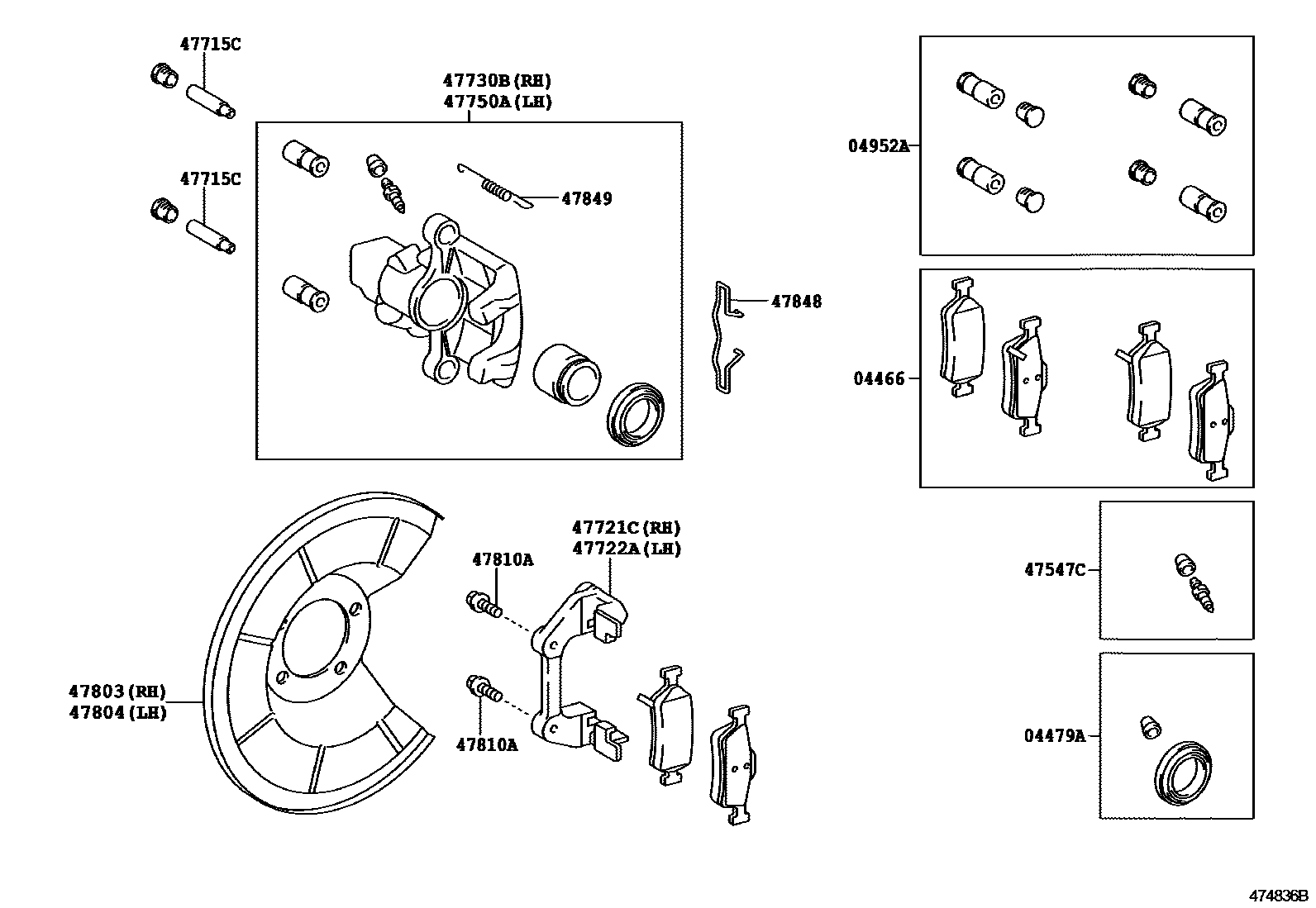

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0D010

04479ACYLINDER KIT, DISC BRAKE, REAR

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-0D020

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-0D020

47810ABOLT, HEXAGON(FOR REAR CALIPER)

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-0D020

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47843-0D020

14 parts on this diagram · 1 diagram in section
