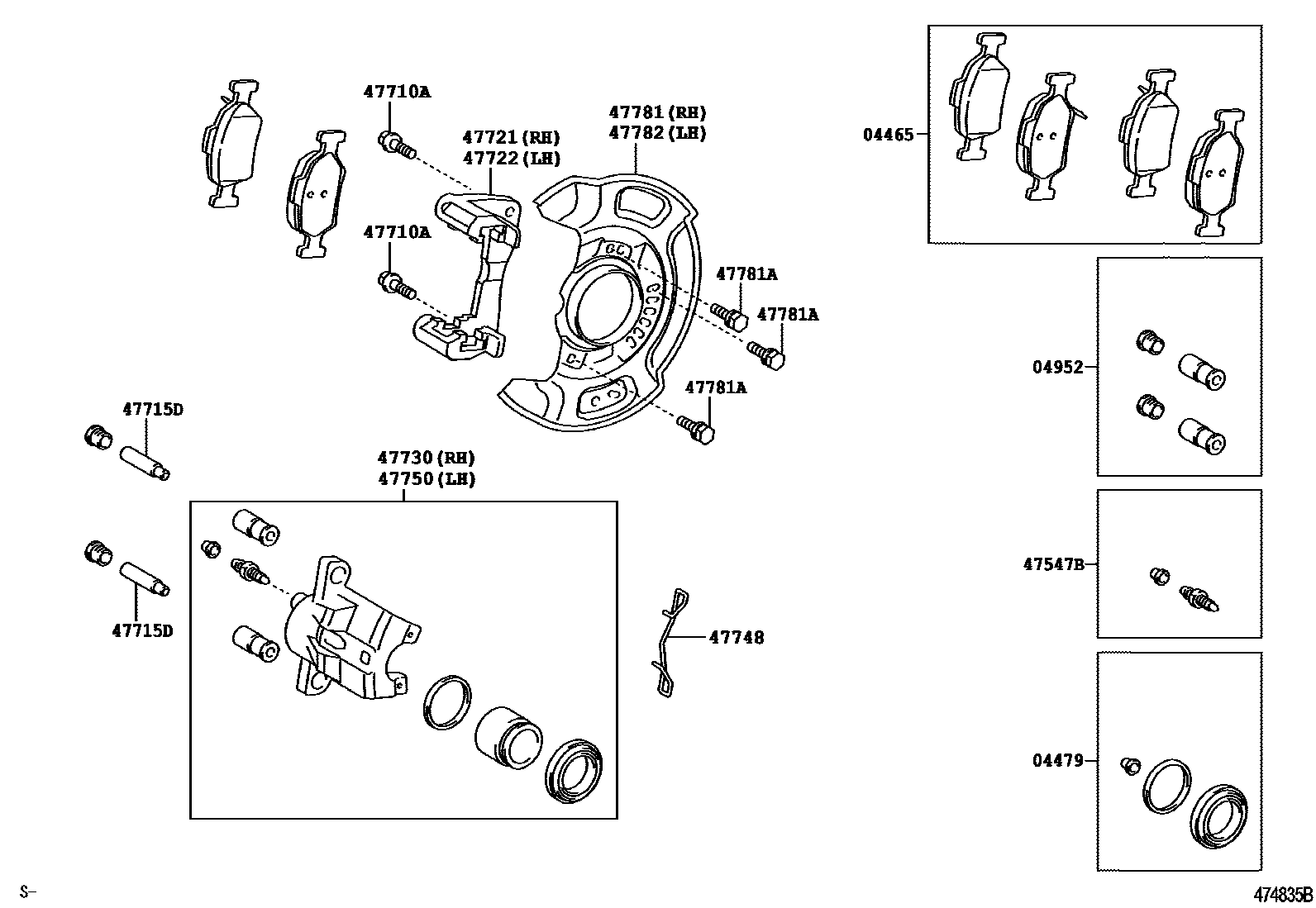

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D050iKSP90,NLP90,SCP90..FRP200511-200811

MARK PAGID 766

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D050iKSP90,NLP90,SCP90..FRP200511-200811

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04951-05010iKSP90,NLP90,SCP90..FRP200511-200811

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09050iKSP90,NLP90,SCP90..FRP200511-200811

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iKSP90,NLP90,SCP90..FRP200511-200811

*12-1.25PX29.5-23

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-05010iKSP90,NLP90,SCP90..FRP200511-200811

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D070iKSP90,NLP90,SCP90..FRP200511-200811

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-0D070iKSP90,NLP90,SCP90..FRP200511-200811

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D070iKSP90,NLP90,SCP90..FRP200511-200811

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0D070iKSP90,NLP90,SCP90..FRP200511-200811

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D070iKSP90,NLP90,SCP90..FRP200511-200811

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D050iKSP90,NLP90,SCP90..FRP200511-201107

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iKSP90,NLP90,SCP90..FRP200511-201107

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D050iKSP90,NLP90,SCP90..FRP200511-201107

14 parts on this diagram · 1 diagram in section
