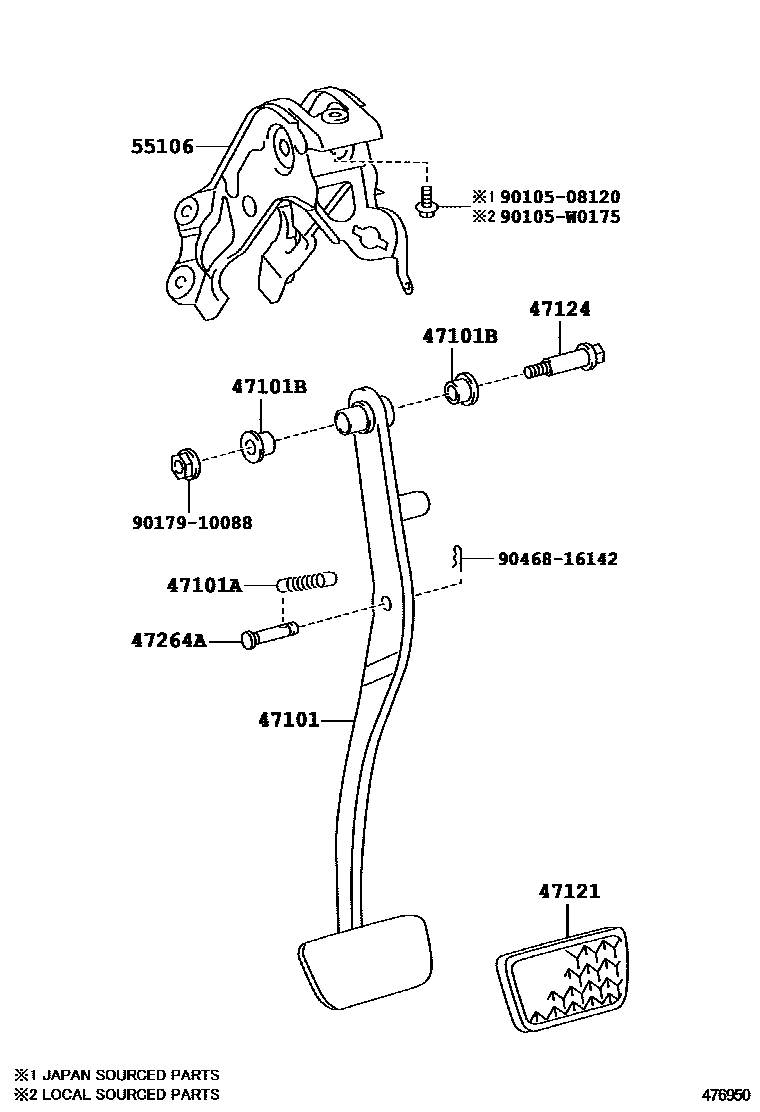

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D080iKSP90,NLP90,NSP90..FRP..LHD..(5F,6F)200511-201107

main47101-0D090iKSP90,NLP90,NSP90..FRP..LHD..(5FS,6FS)200511-201107

main47101-0D100iKSP90,NLP90,NSP90..FRP..RHD..(5F,6F)200511-201107

main47101-0D110iKSP90,NLP90,SCP90..FRP..RHD..5FS200511-201107

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iKSP90,NLP90,SCP90..FRP200511-200811

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKSP90,NLP90,SCP90..FRP200511-201107

47121PAD, BRAKE PEDAL

main31321-52010iKSP90,NLP90,SCP90..FRP..5F200511-201107

main47121-52010iKSP90,NLP90,NSP90..FRP..(5FS,6FS)200511-201107

47124SHAFT, BRAKE PEDAL

main90109-10167iKSP90,NLP90,SCP90..FRP200511-201107

47264APIN(FOR PUSH ROD)

main90249-08051iKSP90,NLP90,NSP90..FRP200511-200811

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D050iKSP90,NLP90,SCP90..FRP..RHD200511-201107

sub55106-0D110

sub90105-10444

sub90387-10003

sub94151-21001

main55106-0D060iKSP90,NLP90,SCP90..FRP..LHD200511-201107

sub55106-0D061

sub90105-10444

sub90387-10003

sub94151-21001

9010508120

main90105-08120

90105W0175

main90105-W0175

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
