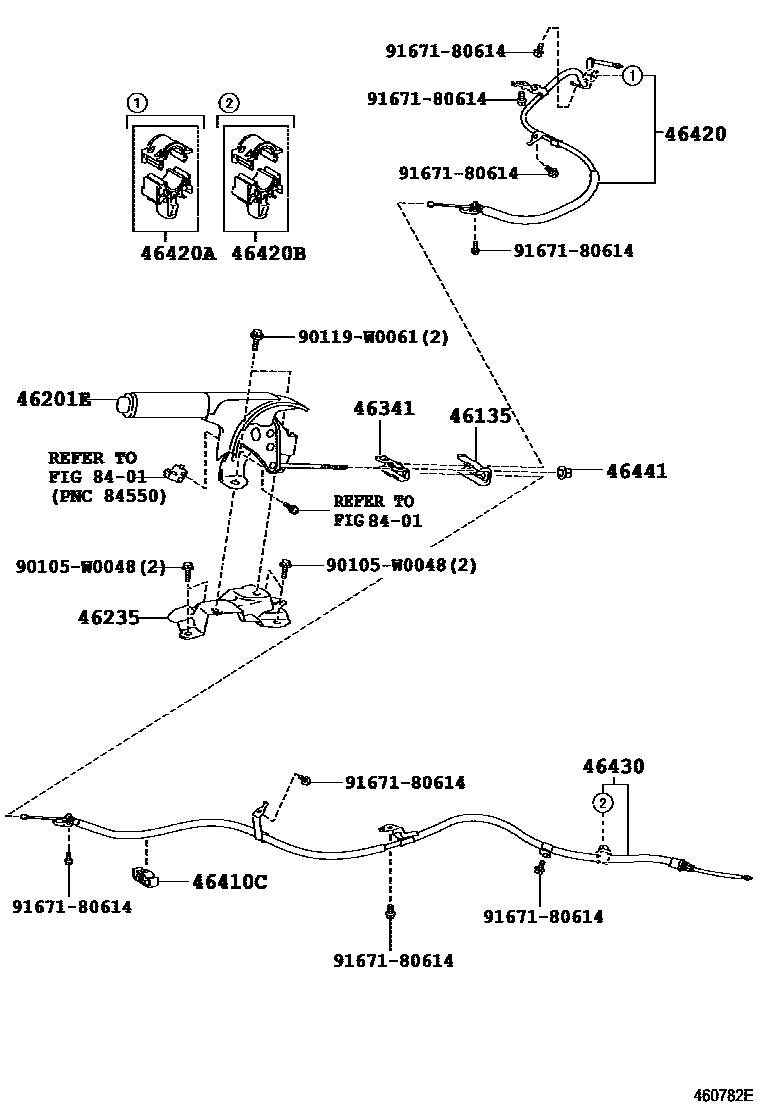

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D010iKSP90,NLP90,NSP90..FRP200511-200811

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D090-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

PARKING BRAKE-W/O(PLATING KNOB),DK.GRAY,TRIM1#

main46201-0D090-B0iKSP90,NLP90,SCP90..FRP..SOL200511-201107

DK.GRAY,TRIM1#

main46201-0D100-B0iKSP90,NLP90,SCP90..FRP..SOL200511-201107

DK.GRAY,TRIM1#

main46201-0D100-E0iKSP90,NLP90,NSP90..FRP..SOL200811-201001

ASH BROWN,TRIM4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D010iKSP90,NLP90,SCP90..FRP200511-201107

46341EQUALIZER, PARKING BRAKE

main46341-0D040iKSP90,NLP90,SCP90..FRP200511-200811

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D010iKSP90,NLP90,SCP90..FRP200511-200811

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D050iKSP90,NLP90,SCP90..FRP200511-200811

main46420-0D060iKSP90,NLP90,SCP90..FRP200511-200811

REAR WHEEL BRAKE-DISK(BUILT-IN)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-52010iKSP90,NLP90,SCP90..FRP200511-201107

main46402-52030iKSP90,NLP90,NSP90..FRP200511-201107

REAR WHEEL BRAKE-DISK(BUILT-IN)

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46402-52010iKSP90,NLP90,SCP90..FRP200511-201107

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D050iKSP90,NLP90,SCP90..FRP200511-200811

main46430-0D060iKSP90,NLP90,SCP90..FRP200511-200811

REAR WHEEL BRAKE-DISK(BUILT-IN)

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D040iKSP90,NLP90,SCP90..FRP200511-200811

8401

90105W0048

main90105-W0048

90119W0061

main90119-W0061

9167180614

main91671-80614

14 parts on this diagram · 1 diagram in section
