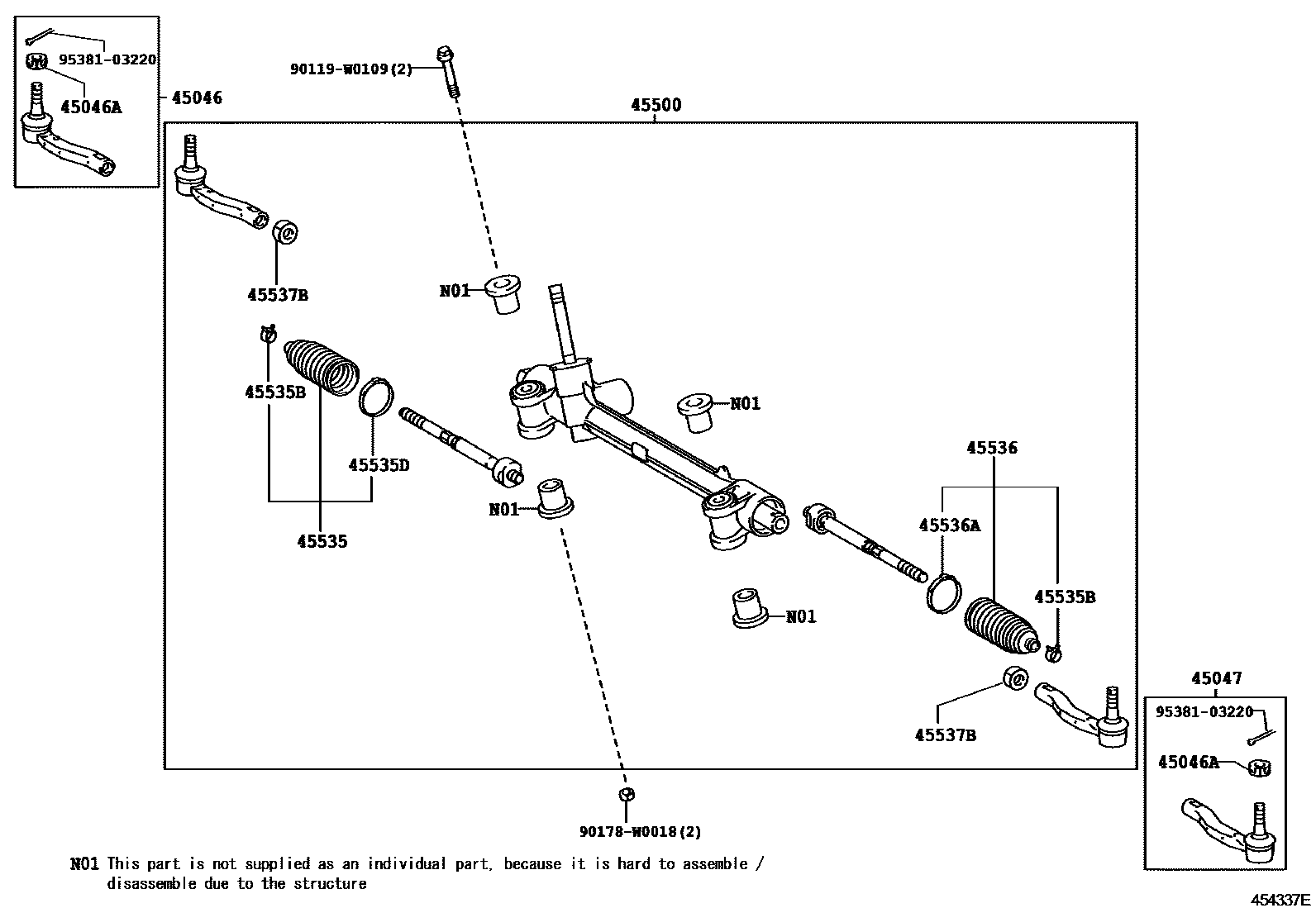

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09480iKSP90,NLP90,NSP90..FRP200511-200811

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKSP90,NLP90,SCP90..FRP200511-200811

45047END SUB-ASSY, TIE ROD, LH

main45047-09220iKSP90,NLP90,NSP90..FRP200511-200811

45500LINK ASSY, STEERING

main45500-0D080iKSP90,NLP90,SCP90..FRP..RHD200511-200811

sub45500-0D081

main45500-0D110iKSP90,NLP90,SCP90..FRP..LHD200511-200811

sub45500-0D111

45535BOOT, STEERING RACK, NO.1

main45535-09130iKSP90,NLP90,SCP90..FRP200511-201106

sub45535-09240

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D050iKSP90,NLP90,SCP90..FRP200511-200811

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iKSP90,NLP90,SCP90..FRP200511-201107

45536BOOT, STEERING RACK, NO.2

main45535-09130iKSP90,NLP90,SCP90..FRP200511-201106

sub45535-09240

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iKSP90,NLP90,NSP90..FRP200811-201107

45537BNUT, RACK END LOCK

main90179-14019iKSP90,NLP90,SCP90..FRP200511-200811

90119W0109

main90119-W0109

90178W0018

main90178-W0018

9538103220

main95381-03220

13 parts on this diagram · 2 diagrams in section
