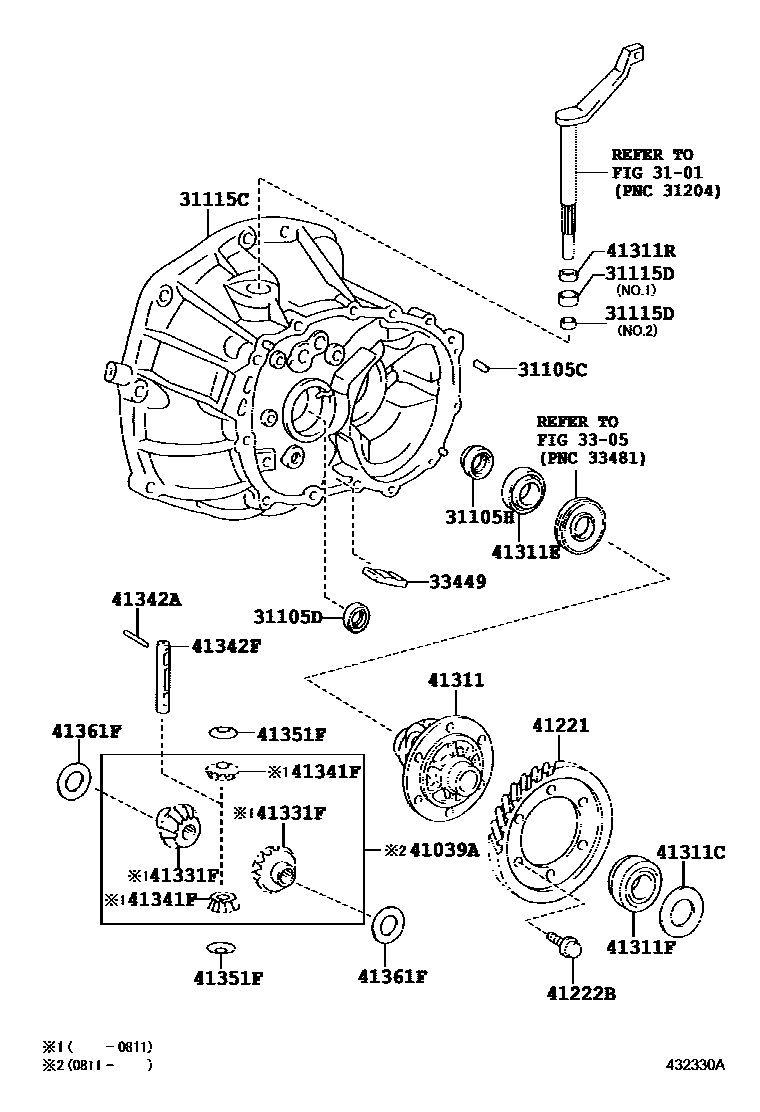

FRONT AXLE HOUSING & DIFFERENTIAL
3101
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
(J)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
sub90311-34041
AI-A:REFER FIG.33-01
sub90311-34054
sub90311-35065
sub90311-35065
31115CCASE, FRONT TRANSAXLE(MTM)
sub31105-52060
AI-A:REFER FIG.33-01
sub31105-52060
sub31115-52091
sub31115-52140
31115DBUSH, BIMETAL FORMED(FOR FRONT TRANSAXLE CASE)
NO.2
(J),NO.2
NO.1
(J),NO.1
(L),NO.2
(L),NO.1
3305
33449MAGNET, TRANSMISSION
41039AGEAR KIT, DIFFERENTIAL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
AI-A:REFER FIG.33-01
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10,MARK AA
T=2.15,MARK BB
T=2.20,MARK CC
T=2.25,MARK DD
T=2.30,MARK EE
T=2.35,MARK FF
T=2.40,MARK GG
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.55,MARK KK
T=2.60,MARK LL
T=2.65,MARK MM
T=2.70,MARK NN
T=2.75,MARK PP
T=2.80,MARK QQ
T=2.85,MARK RR
T=2.90,MARK SS
T=2.95,MARK TT
T=3.00,MARK UU
T=1.10,MARK 01
T=1.15,MARK 02
T=1.20,MARK 03
T=1.25,MARK 04
T=1.30,MARK 05
T=1.35,MARK 06
T=1.40,MARK 07
T=1.45,MARK 08
T=1.50,MARK 09
T=1.55,MARK 10
T=1.60,MARK 11
T=1.65,MARK 12
T=1.70,MARK 13
T=1.75,MARK 14
T=1.80,MARK 15
T=1.85,MARK 16
T=1.90,MARK 17
T=1.95,MARK 18
T=2.00,MARK 19
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
(L)
AI-A:REFER FIG.33-01
sub90366-40129
(J)
TMMP:REFER FIG.33-01
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
TMMP:REFER FIG.33-01
(J)
(L)
AI-A:REFER FIG.33-01
41311RSEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
(L)
(J)
41331FGEAR, FRONT DIFFERENTIAL SIDE
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
TOYOTA:REFER 33-01
AI-A:REFER FIG.33-01
41341FPINION, FRONT DIFFERENTIAL
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
TOYOTA:REFER 33-01
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
(J)
(L)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
T=0.50,ECO MODEL PACKAGE
T=0.50
T=0.55
T=0.55,ECO MODEL PACKAGE
T=0.60,ECO MODEL PACKAGE
T=0.60
T=0.65
T=0.65,ECO MODEL PACKAGE
T=0.70,ECO MODEL PACKAGE
T=0.70
T=0.75,ECO MODEL PACKAGE
T=0.75
T=0.80
T=0.80,ECO MODEL PACKAGE
T=0.85
T=0.85,ECO MODEL PACKAGE
T=0.90,ECO MODEL PACKAGE
T=0.90
T=0.95,ECO MODEL PACKAGE
T=0.95
23 parts on this diagram · 4 diagrams in section
