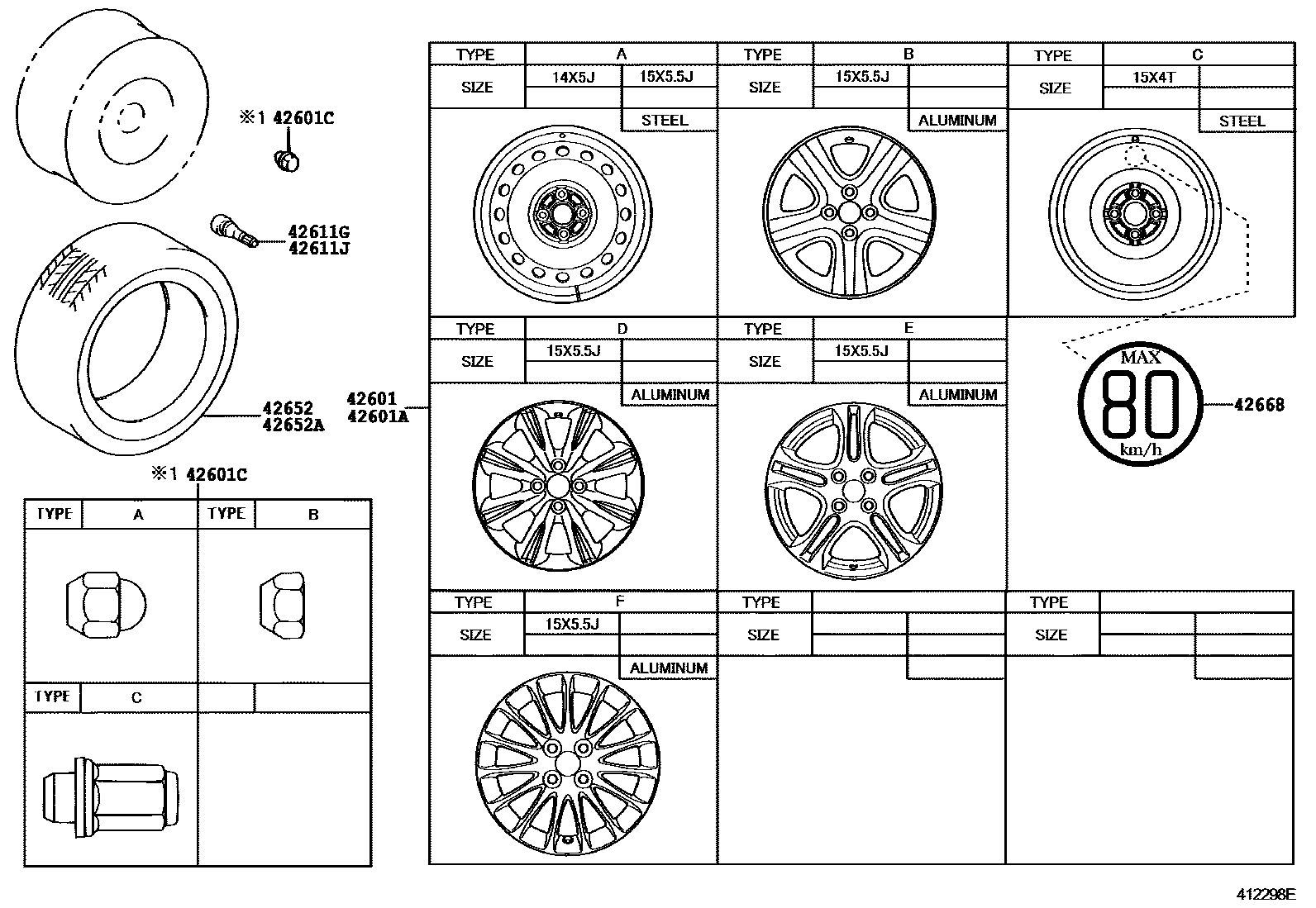

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X5.5J, #,TYPE A:REFER ILLUST.
14X5J, #,TIRE & DISK WHEEL-175/65R14 RR 5J BLACK,TYPE A:REFER ILLUST.
15X5.5J, #,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALLOY
15X5.5J, #,ECO MODEL PACKAGE&TIRE & DISK WHEEL-185/60R15 5.5J ALLOY MICHELIN TIRE,TYPE D:REFER ILLUST.
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 RR ALLOY C&A,TYPE E:REFER ILLUST.
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 ALLOY C&A,TYPE F:REFER ILLUST.
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 ALUMINUM C&A ORANA M/L TIRE,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
14X5J, #,TIRE & DISK WHEEL-175/65R14 RR 5J BLACK&SPARE TIRE-GROUND TIRE (STEEL),TYPE A:REFER ILLUST.
15X5.5J, #,ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK,TYPE A:REFER ILLUST.
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 RR 5.5J ALLOY,TYPE B:REFER ILLUST.
15X5.5J, #,TIRE & DISK WHEEL-185/60R15 RR 5.5J ALLOY&SPARE TIRE-GROUND TIRE (ALLOYWHEEL),TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
WHEEL CAP-W/O,TYPE A:REFER ILLUST.
main90942-01033×16supersedes 90942-01021iKSP90..FRP..5F..SOL;KSP90,NLP90,NSP90..FRP..LHD..TRSTD201001-201107
RUSSIA SPEC&WHEEL CAP-ACCESSORY PARTS,TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK
42652TIRE
main42652-0D400
main42652-0D430
main42652-32520
main42652-0D610
main42652-0D780
main42652-0D790
main42652-0D810
main42652-0D820
42652ATIRE (FOR SPARE)
T125/70D15,MICHELIN,ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE&TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK
T125/70D15,*B/S,ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE&TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK W/N
42668LABEL, COMPACT SPARE TIRE CAUTION
ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE&TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK W/N
sub42668-0F030
8 parts on this diagram · 3 diagrams in section
