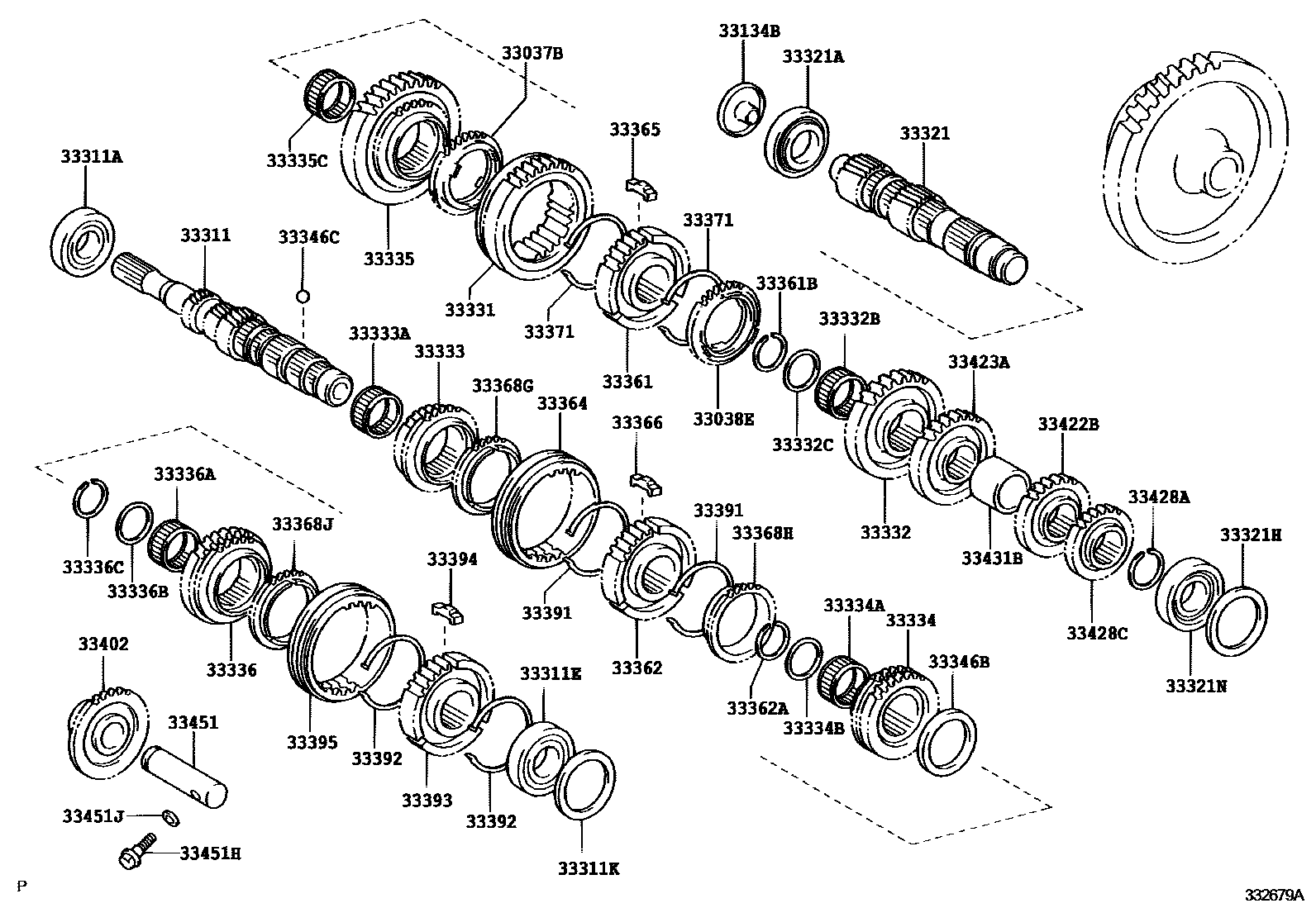

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
(J)
33038ERING SET, SYNCHRONIZER, NO.2
ECO MODEL PACKAGE
33134BCOVER, OUTPUT SHAFT(MTM)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
TOYOTA:REFER 33-01
TMMP:REFER FIG.33-01
33311ABEARING (FOR INPUT SHAFT FRONT)
AI-A:REFER FIG.33-01
(J)
TMMP:REFER FIG.33-01
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-25091
AI-A:REFER FIG.33-01
sub90363-28016
TMMP:REFER FIG.33-01
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.80,MARK F,ECO MODEL PACKAGE
T=1.80,MARK F
T=1.85,MARK G,ECO MODEL PACKAGE
T=1.85,MARK G
T=1.90,MARK H,ECO MODEL PACKAGE
T=1.90,MARK H
T=1.95,MARK J
T=1.95,MARK J,ECO MODEL PACKAGE
T=2.00,MARK K
T=2.00,MARK K,ECO MODEL PACKAGE
T=2.05,MARK L,ECO MODEL PACKAGE
T=2.05,MARK L
T=2.10,MARK M,ECO MODEL PACKAGE
T=2.10,MARK M
T=2.15,MARK N
T=2.15,MARK N,ECO MODEL PACKAGE
T=2.20,MARK A,ECO MODEL PACKAGE
T=2.20,MARK A
T=2.25,MARK Q,ECO MODEL PACKAGE
T=2.25,MARK Q
T=2.30,MARK R
T=2.30,MARK R,ECO MODEL PACKAGE
T=2.35,MARK S
T=2.35,MARK S,ECO MODEL PACKAGE
T=2.40,MARK T
T=2.40,MARK T,ECO MODEL PACKAGE
T=1.40,MARK 10,AI-A:REFER FIG.33-01
T=1.40,MARK 10,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.40,MARK 10
T=1.45,MARK 11
T=1.45,MARK 11,AI-A:REFER FIG.33-01
T=1.45,MARK 11,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.50,MARK 12,AI-A:REFER FIG.33-01
T=1.50,MARK 12
T=1.50,MARK 12,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.55,MARK 13,AI-A:REFER FIG.33-01
T=1.55,MARK 13
T=1.55,MARK 13,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.60,MARK 14,AI-A:REFER FIG.33-01
T=1.60,MARK 14
T=1.60,MARK 14,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.65,MARK 15,AI-A:REFER FIG.33-01
T=1.65,MARK 15,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.65,MARK 15
T=1.70,MARK 16,AI-A:REFER FIG.33-01
T=1.70,MARK 16
T=1.70,MARK 16,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.75,MARK 17,AI-A:REFER FIG.33-01
T=1.75,MARK 17
T=1.75,MARK 17,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.80,MARK 18,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.80,MARK 18
T=1.80,MARK 18,AI-A:REFER FIG.33-01
T=1.85,MARK 19,AI-A:REFER FIG.33-01
T=1.85,MARK 19
T=1.85,MARK 19,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.90,MARK S,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.95,MARK T,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=2.00,MARK U,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=2.05,MARK V,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.30,MARK 08,AI-A:REFER FIG.33-01
T=1.30,MARK 08,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.30,MARK 08
T=1.35,MARK 09
T=1.35,MARK 09,AI-A:REFER FIG.33-01
T=1.35,MARK 09,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
T=1.40,MARK 10,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54105
T=1.45,MARK 11,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54106
T=1.50,MARK 12,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54107
T=1.55,MARK 13,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54108
T=1.60,MARK 14,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54109
T=1.65,MARK 15,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54110
T=1.70,MARK 16,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54111
T=1.75,MARK 17,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54112
T=1.80,MARK 18,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54113
T=1.85,MARK 19,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54114
T=1.30,MARK 08,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54103
T=1.35,MARK 09,TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
sub90564-54104
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.55,MARK A
T=1.55,MARK A,ECO MODEL PACKAGE
T=1.60,MARK B
T=1.60,MARK B,ECO MODEL PACKAGE
T=1.65,MARK C,ECO MODEL PACKAGE
T=1.65,MARK C
T=1.70,MARK D
T=1.70,MARK D,ECO MODEL PACKAGE
T=1.75,MARK E
T=1.75,MARK E,ECO MODEL PACKAGE
T=1.80,MARK F
T=1.80,MARK F,ECO MODEL PACKAGE
T=1.85,MARK G
T=1.85,MARK G,ECO MODEL PACKAGE
T=1.90,MARK H
T=1.90,MARK H,ECO MODEL PACKAGE
T=1.95,MARK J,ECO MODEL PACKAGE
T=1.95,MARK J
T=2.00,MARK K
T=2.00,MARK K,ECO MODEL PACKAGE
T=2.05,MARK L
T=2.05,MARK L,ECO MODEL PACKAGE
T=2.10,MARK M
T=2.10,MARK M,ECO MODEL PACKAGE
T=2.15,MARK N,ECO MODEL PACKAGE
T=2.15,MARK N
T=2.20,MARK A
T=2.20,MARK A,ECO MODEL PACKAGE
T=2.25,MARK Q,ECO MODEL PACKAGE
T=2.25,MARK Q
T=1.750,MARK 33
T=1.755,MARK 22
T=1.800,MARK 11
T=1.825,MARK 00
T=1.850,MARK 0
T=1.875,MARK 1
T=1.900,MARK 2
T=1.925,MARK 3
T=1.950,MARK 4
T=1.975,MARK 5
T=2.000,MARK 6
T=2.025,MARK 7
T=2.050,MARK 8
T=2.075,MARK 9
T=2.100,MARK A
T=2.125,MARK B
T=2.150,MARK C
T=2.175,MARK D
T=2.200,MARK E
T=2.225,MARK F
T=2.250,MARK G
T=2.275,MARK H
T=2.300,MARK J
T=2.325,MARK K
T=2.350,MARK L
T=2.375,MARK M
T=2.400,MARK N
T=2.425,MARK P
T=2.450,MARK Q
T=2.475,MARK R
T=2.500,MARK S
T=2.525,MARK T
T=2.550,MARK U
T=2.575,MARK V
T=2.600,MARK W
T=2.625,MARK X
T=2.650,MARK Y
T=2.675,MARK Z
T=2.700,MARK ZZ
T=2.725,MARK YY
T=2.750,MARK XX
T=2.775,MARK WW
T=2.800,MARK VV
T=1.750,MARK 50
T=1.755,MARK 51
T=1.800,MARK 52
T=1.825,MARK 53
T=1.850,MARK 54
T=1.875,MARK 55
T=1.900,MARK 56
T=1.925,MARK 57
T=1.950,MARK 58
T=1.975,MARK 59
T=2.000,MARK 60
T=2.025,MARK 61
T=2.050,MARK 62
T=2.075,MARK 63
T=2.100,MARK 64
T=2.125,MARK 65
T=2.150,MARK 66
T=2.175,MARK 67
T=2.200,MARK 68
T=2.225,MARK 69
T=2.250,MARK 70
T=2.275,MARK 71
T=2.300,MARK 72
T=2.325,MARK 73
T=2.350,MARK 74
T=2.375,MARK 75
T=2.400,MARK 76
T=2.425,MARK 77
T=2.450,MARK 78
T=2.475,MARK 79
T=2.500,MARK 80
T=2.525,MARK 81
T=2.550,MARK 82
T=2.575,MARK 83
T=2.600,MARK 84
T=2.625,MARK 85
T=2.650,MARK 86
T=2.675,MARK 87
T=2.700,MARK 88
T=2.725,MARK 89
T=2.750,MARK 90
T=2.775,MARK 91
T=2.800,MARK 92
33321NBEARING (FOR OUTPUT SHAFT FRONT)
(J)
AI-A:REFER FIG.33-01
(L)
33331GEAR, REVERSE
(L)
(J)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
AI-A:REFER FIG.33-01
(J)
TMMP:REFER FIG.33-01
33332CSPACER (FOR 2ND GEAR BEARING)
ECO MODEL PACKAGE
33333GEAR, 3RD
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
sub33034-12150
AI-A:REFER FIG.33-01
sub33034-12220
AI-A:REFER FIG.33-01
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
AI-A:REFER FIG.33-01
(J)
TMMP:REFER FIG.33-01
(L)
33334GEAR, 4TH
TMMP:REFER FIG.33-01
sub33035-12180
AI-A:REFER FIG.33-01
sub33035-12140
sub33035-12160
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33035-52070
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
AI-A:REFER FIG.33-01
(J)
TMMP:REFER FIG.33-01
(L)
33334BSPACER (FOR 4TH GEAR BEARING)
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
(J)
(L)
33336GEAR, 5TH
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33036-12120
AI-A:REFER FIG.33-01
sub33036-12220
AI-A:REFER FIG.33-01
sub33036-52070
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
sub90364-24005
(J)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
(L)
33336BSPACER (FOR 5TH GEAR BEARING)
ECO MODEL PACKAGE
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.28,MARK 1
T=2.34,MARK 2
T=2.40,MARK 3
T=2.46,MARK 4
T=2.52,MARK 5
T=2.58,MARK 6
33346BWASHER, 5TH GEAR THRUST
ECO MODEL PACKAGE
33346CBALL (FOR 5TH GEAR THRUST WASHER)
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
(L)
(J)
AI-A:REFER FIG.33-01,TMMP:REFER FIG.33-01
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
TMMP:REFER FIG.33-01
sub33362-12050
sub33362-12051
sub33362-20041
AI-A:REFER FIG.33-01
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=1.85-1.89,MARK 7
T=1.90-1.94,MARK 8
T=2.28,MARK A,ECO MODEL PACKAGE
T=2.28,MARK A
T=2.34,MARK B
T=2.34,MARK B,ECO MODEL PACKAGE
T=2.40,MARK C
T=2.40,MARK C,ECO MODEL PACKAGE
T=2.46,MARK D
T=2.46,MARK D,ECO MODEL PACKAGE
T=2.52,MARK E,ECO MODEL PACKAGE
T=2.52,MARK E
T=2.58,MARK F
T=2.58,MARK F,ECO MODEL PACKAGE
T=2.27,MARK 0
T=2.32,MARK 1
T=2.37,MARK 2
T=2.42,MARK 3
T=2.47,MARK 4
T=2.52,MARK 5
T=2.57,MARK 6
T=2.62,MARK 7
33364SLEEVE, TRANSMISSION HUB, NO.2
TMMP:REFER FIG.33-01
sub33364-12051
AI-A:REFER FIG.33-01
sub33364-12060
AI-A:REFER FIG.33-01
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33393HUB, TRANSMISSION CLUTCH, NO.3
TMMP:REFER FIG.33-01
sub33393-12060
sub33393-20041
AI-A:REFER FIG.33-01
33395SLEEVE, TRANSMISSION HUB, NO.3
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33395-12040
AI-A:REFER FIG.33-01
33402GEAR SUB-ASSY, REVERSE IDLER
(L)
(J)
33422BGEAR, 4TH DRIVEN
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
sub33422-12090
AI-A:REFER FIG.33-01
sub33422-12110
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33422-52050
33423AGEAR, 3RD DRIVEN
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33423-12070
AI-A:REFER FIG.33-01
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.22,MARK A
T=2.28,MARK B
T=2.34,MARK C
T=2.40,MARK D
T=2.46,MARK E
T=2.52,MARK F
T=2.58,MARK G
T=2.64,MARK H
T=2.70,MARK J
33428CGEAR, 5TH DRIVEN
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
sub33428-12100
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33428-12160
AI-A:REFER FIG.33-01
sub33428-52040
33431BSPACER, OUTPUT SHAFT
sub33431-52020
33451SHAFT, REVERSE IDLER GEAR
(L)
TMMP:REFER FIG.33-01
(J)
AI-A:REFER FIG.33-01
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
AI-A:REFER FIG.33-01
(J)
TMMP:REFER FIG.33-01
(L)
53 parts on this diagram · 3 diagrams in section
