TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

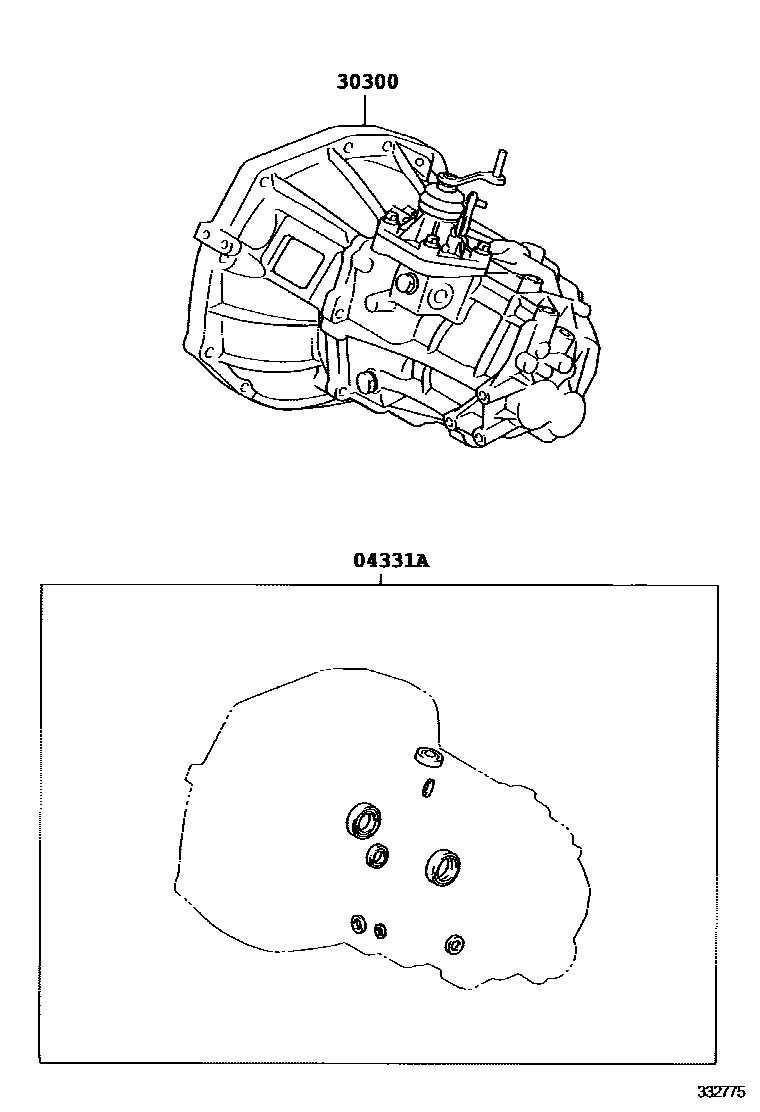

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-05210i200811
(L)
sub04331-05211
main04331-0D170i200811
(L)
sub04331-0D190
main04331-0D180i200811
TMMP:REFER TO ILL.
sub04331-0D181
main04331-12650i200603-200811
sub04331-12800
main04331-20250i200811
(J)
sub04331-20280
main04331-52330i200511-201006
main04331-52340i200811
AI-A:REFER TO ILL.
main04331-52340i200511-200811
main04331-52350i200511-200603
sub04331-12650
main04331-52590i200811
(J)
sub04331-52592
main04331-52610i200902
sub04331-52680
main04331-52620i200902
sub04331-52621
main04331-64030i200511-200811
sub04331-64031
30300TRANSAXLE ASSY, MANUAL
main30300-0D070i200511-200910
C551,TMMP:REFER TO ILL.
sub30300-0D071
main30300-0D071i200910-201008
C551,TMMP:REFER TO ILL.
sub30300-0D073
main30300-0D073i201008-201107
C551,TMMP:REFER TO ILL.
main30300-0D120i200811-201107
EC66,TMMP:REFER TO ILL.
sub30300-0D121
sub35150-44010
main30300-0D140i200811-201107
EC65,TMMP:REFER TO ILL.
sub30300-0D330
main30300-52410i200511-200811
C551,AI-A:REFER TO ILL.
sub30300-52411
main30300-52411i200811-200909
C551,AI-A:REFER TO ILL.
sub30300-52412
main30300-52412i200909-201008
C551,AI-A:REFER TO ILL.
sub30300-52413
main30300-52413i201008-201107
C551,AI-A:REFER TO ILL.
main30300-52420i200511-200811
C551
sub30300-52860
main30300-52441i200511-200512
C53
sub30300-52442
sub31490-52033
sub90179-06219
main30300-52442i200512-200811
C53
sub30300-52550
main30300-52640i200812-201004
EC66,AI-A:REFER TO ILL.
sub30300-52641
main30300-52641i201004-201107
EC66,AI-A:REFER TO ILL.
main30300-52660i200901-201004
EC65,AI-A:REFER TO ILL.
sub30300-52661
main30300-52661i201004-201107
EC65,AI-A:REFER TO ILL.
main30330-52050i200902-201004
EC66A
sub30330-52051
main30330-52051i201004-201107
EC66A
sub30330-52052
main30330-52060i200902-201004
EC65A
sub30330-52061
main30330-52061i201004-201107
EC65A
sub30330-52062
main30340-52020i200511-200811
C53A
main30340-52030i200511-200811
C551A
sub30340-52031
main30340-52031i200811-201006
C551A
main30340-52040i200511-200811
C551A

2 parts on this diagram · 6 diagrams in section
