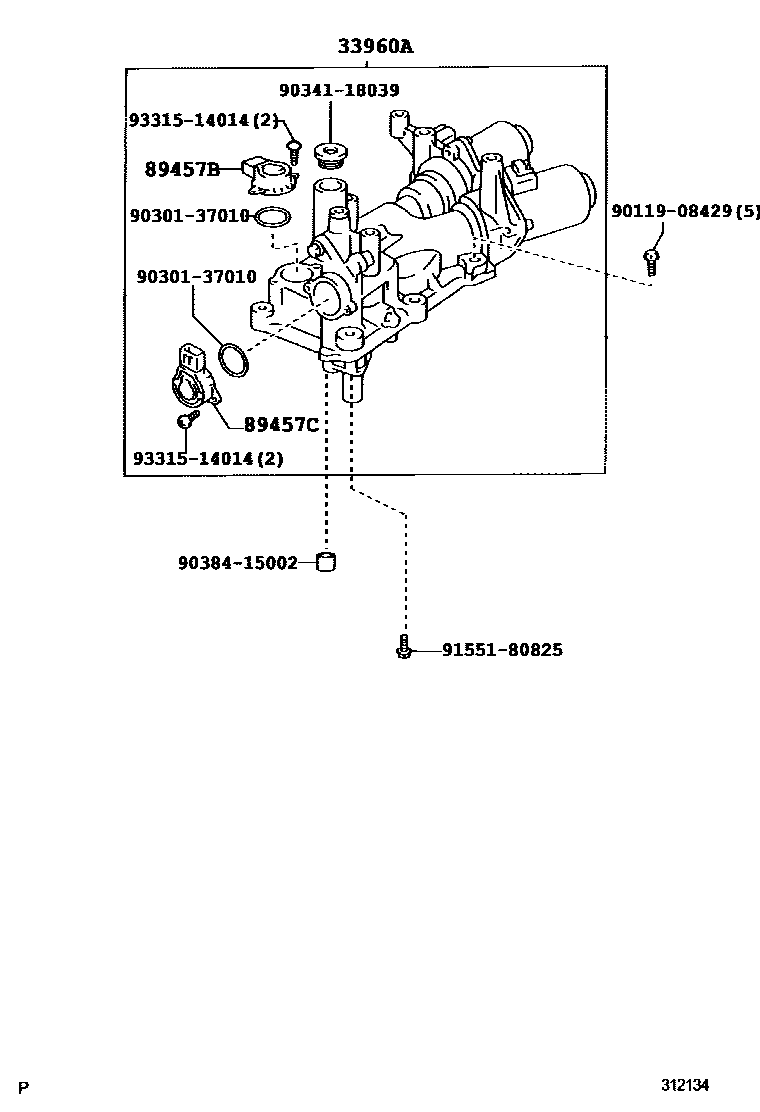

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

0001 1C551A 0002 1C53A 0003 1

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-52020iNLP90..FRP..5FS200511-200602

sub33960-52021

main33960-52021iNLP90..FRP..5FS200602-200811

sub33960-52050

main33960-52032iNLP90,NSP90..FRP..6FS200902-201107

sub33960-52034

main33960-70011iKSP90,SCP90..FRP..5FS200511-201006

sub33960-70012

89457BSTROKE SENSOR, SHIFT

main89457-52010iKSP90,NLP90,SCP90..FRP..5FS200511-201007

main89457-52020iNLP90,NSP90..FRP..6FS201008-201107

89457CSTROKE SENSOR, SELECT

main89457-52010iKSP90,NLP90,SCP90..FRP..5FS200511-201007

main89457-52020iNLP90,NSP90..FRP..6FS201008-201107

9011908429

main90119-08429

9030137010

main90301-37010

9034118039

main90341-18039

9038415002

main90384-15002

9155180825

main91551-80825

9331514014

main93315-14014

9 parts on this diagram · 3 diagrams in section
