CLUTCH & RELEASE FORK

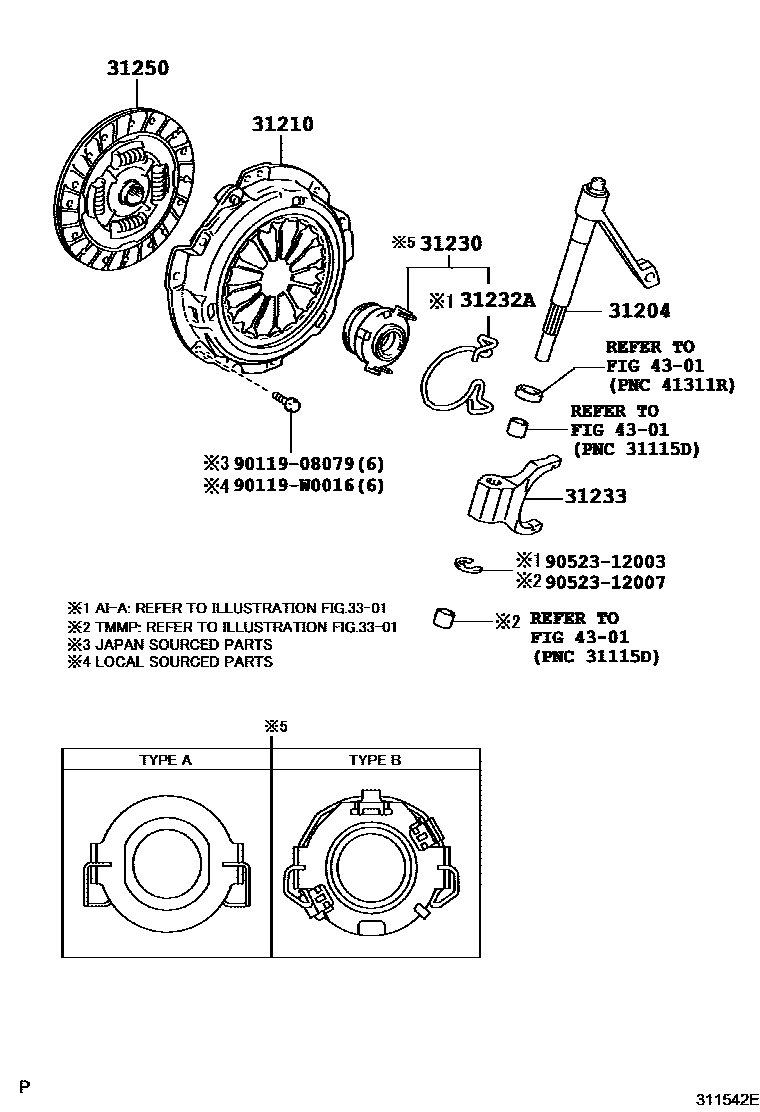

Parts diagram

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010i200511-200811

main31204-52031i200511-201107

main31204-64010i200511-200811

31210COVER ASSY, CLUTCH

main31210-0D060i200511-201107

main31210-0D070i200511-200811

main31210-0D080i200511-200811

main31210-52090i200902-201107

main31210-52100i200811-201107

main31210-52110i200902-201107

main31210-52130i200811-201107

31230BEARING ASSY, CLUTCH RELEASE

main31230-0H010i200811

TMMP, TYPE A

main31230-0H010i200511-200811

TMMP:REFER FIG.33-01

main31230-12180i200511-200811

main31230-17011i200511-200811

main31230-52040i200511-200811

AI-A:REFER FIG.33-01

main31230-52040i200908

TMMP, TYPE B

31232ACLIP, RELEASE BEARING HUB

main31232-12080i200511-200811

main31232-17010i200511-200811

main31232-52040i200511-200811

31233FORK, CLUTCH RELEASE

main31233-0H010i200511-200811

TMMP:REFER FIG.33-01

main31233-52040i200511-200811

AI-A:REFER FIG.33-01

31250DISC ASSY, CLUTCH

main31250-0D040i200511-200801

main31250-0D041i200802-200811

main31250-0D080i200511-200512

main31250-0D081i200512-200806

main31250-0D082i200807-201002

main31250-0D083i201003-201107

main31250-0D090i200511-200512

main31250-0D091i200512-200811

main31250-52120i200811-201009

main31250-52130i200811-201107

main31250-52140i200902-201004

main31250-52141i201005-201107

main31250-52150i200902-201107

main31250-52210i201010-201107

4301

9011908079

main90119-08079

90119W0016

main90119-W0016

9052312003

main90523-12003

9052312007

main90523-12007

11 parts on this diagram · 5 diagrams in section
