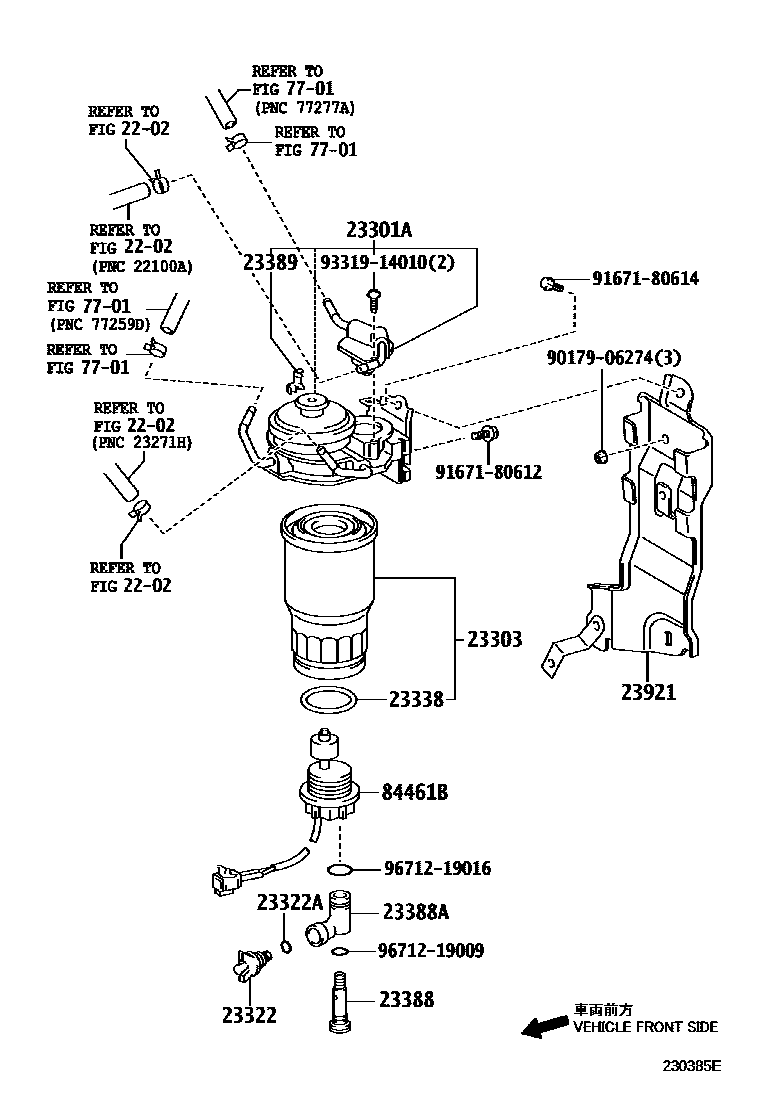

FUEL FILTER

0001 1 0002 1

2202

23301ACAP ASSY, FUEL FILTER

main23380-0N050i1NDTV..NLP90..FRP200511-200808

sub23380-0N051

main23380-0N051i1NDTV..NLP90..FRP200808-200811

sub23380-0N052

main23380-0N060i1NDTV..NLP90..FRP200811-200903

sub23380-0N062

main23380-0N062i1NDTV..NLP90..FRP200903

sub23380-33062

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-33020i1NDTV..NLP90..FRP200511-200810

sub23390-33060

main23390-33060i1NDTV..NLP90..FRP200810-200811

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NLP90..FRP200511-200811

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NLP90..FRP200511-200811

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NLP90..FRP200511-200811

23388PLUG, FUEL FILTER DRAIN

main23388-30160i1NDTV..NLP90..FRP200511-200811

23388APLUG, FUEL FILTER DRAIN

main23388-30170i1NDTV..NLP90..FRP200511-200811

23389CLAMP, FUEL FILTER

main23389-0N010i1NDTV..NLP90..FRP200511-200811

sub23389-33040

23921SUPPORT, FUEL FILTER

main23921-0N010i1NDTV..NLP90..FRP200511-200811

main23921-0N020i1NDTV..NLP90..FRP200811-201107

7701

84461BSWITCH, LEVEL WARNING

main84461-52010iNLP90..FRP200511-200811

main84461-60080iNLP90..FRP200811-201107

sub84461-60081

9017906274

main90179-06274

9167180612

main91671-80612

9167180614

main91671-80614

9331914010

main93319-14010

9671219009

main96712-19009

9671219016

main96712-19016

18 parts on this diagram · 2 diagrams in section
