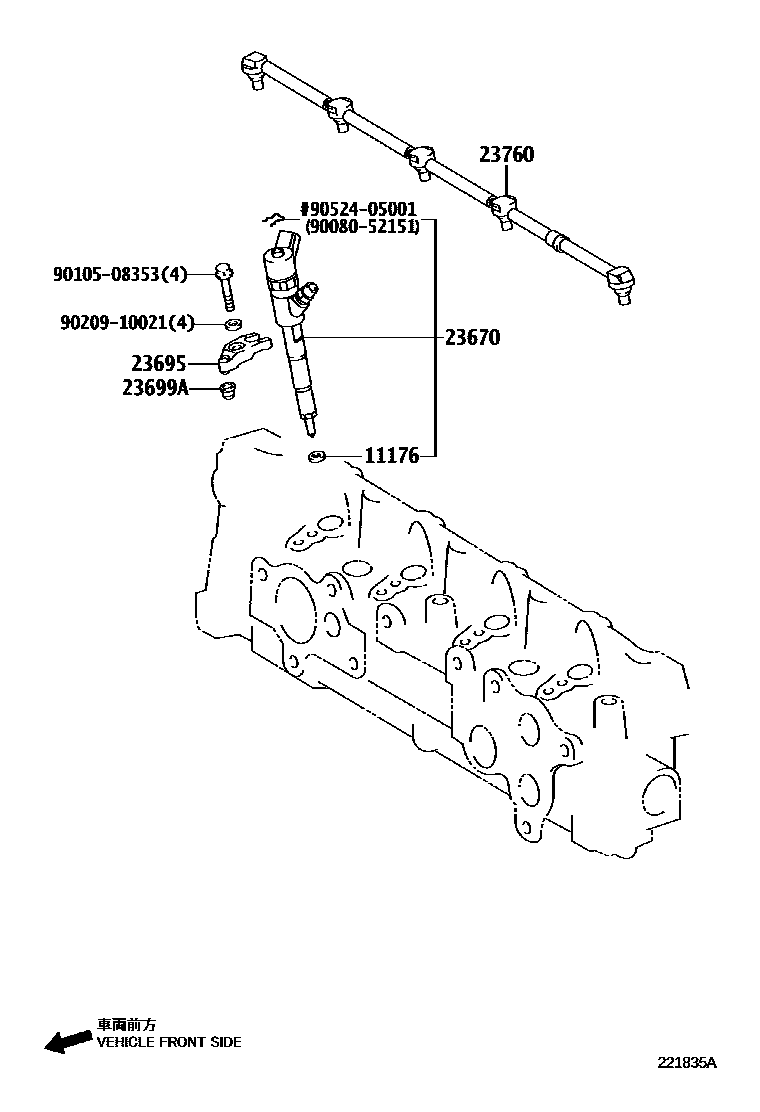

INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
*132
*251
23670INJECTOR ASSY
(L),*132
(L),*251
(J),*251
*132
(J),*132
*132
23695CLAMP, NOZZLE HOLDER, NO.1
(L)
(J)
*251
*132
23699ASEAT, NOZZLE HOLDER CLAMP
*132
*251
23760PIPE ASSY, NOZZLE LEAKAGE
(L),*132
(L),*251
(J)
(J),*251
(J),*132
*132
9008052151
main90080-52151
9010508353
main90105-08353
9020910021
main90209-10021
9052405001
main90524-05001
9 parts on this diagram · 2 diagrams in section
