STARTER

0001 112V 0.9KW 0002 112V 1.3KW 0003 112V 1.1KW 0004 112V 2.0KW 0005 112V 1.3KW 0006 112V 1.3KW 0007 112V 1.3KW 0008 112V 1.6KW 0009 112V 2.0KW 0010 112V 1.3KW 0011 112V 1.6KW 0012 112V 0.8KW

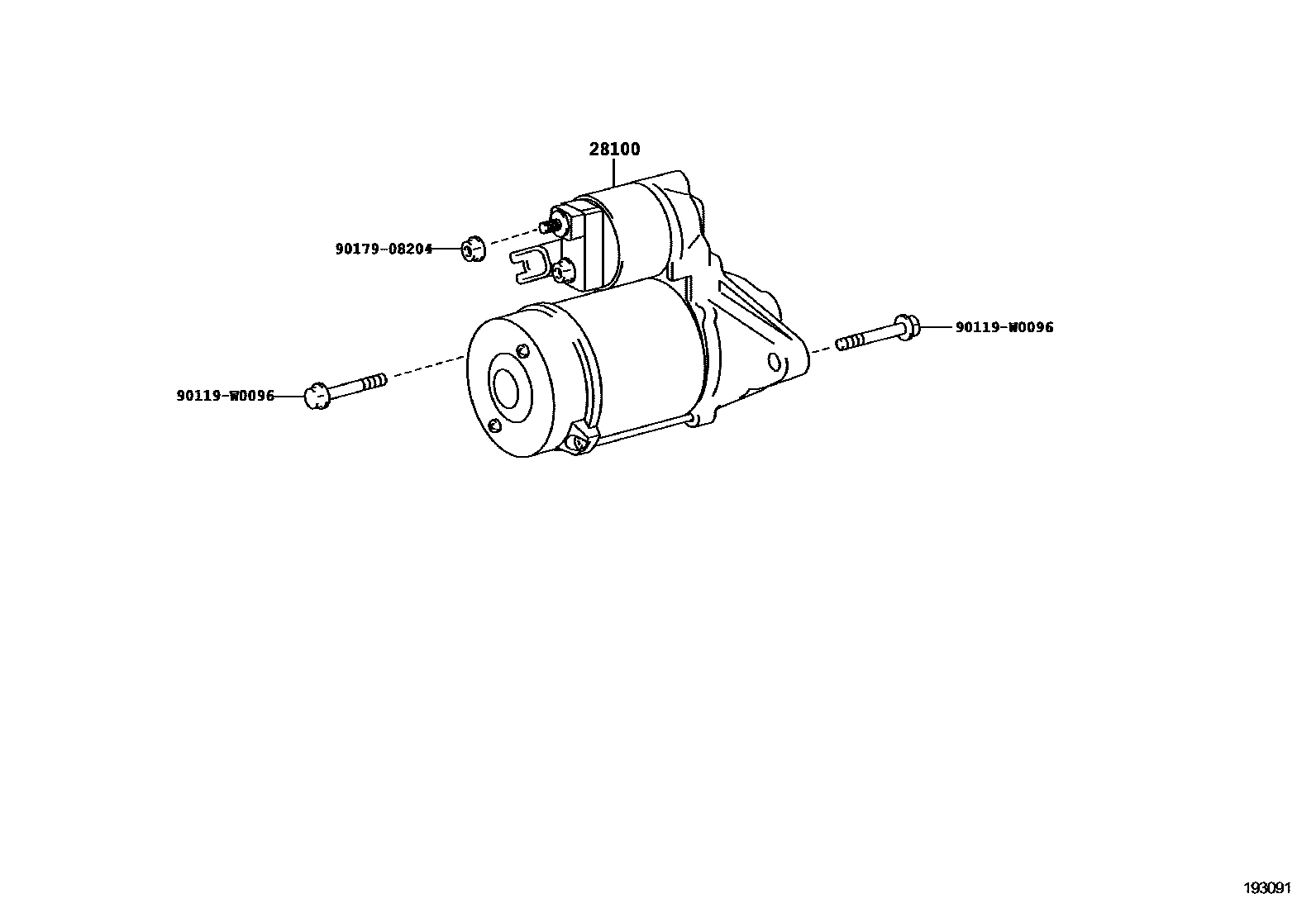

28100STARTER ASSY

main28100-0J030i2SZFE..SCP90..FRP200511-200609

12V 1.3KW

sub28100-0J031

main28100-0J031i2SZFE..SCP90..FRP200610-200701

12V 1.3KW

sub28100-0J050

main28100-0J050i2SZFE..SCP90..FRP200701-200811

12V 1.3KW

main28100-0N010i1NDTV..NLP90..FRP200511-200811

12V 1.1KW

main28100-0N040i1NDTV..NLP90..FRP200811

12V 1.6KW

main28100-0Q031i1KRFE..KSP90..FRP200511-200904

12V 0.9KW

sub28100-0Q050

main28100-0Q050i1KRFE..KSP90..FRP200904-201008

12V 1.3KW

main28100-0Q080i1KRFE..KSP90..FRP201008

12V 0.8KW

sub28100-0Q081

main28100-0Y010i1NRFE..NSP90..FRP..6FS200902

12V 1.3KW

main28100-0Y020i1NRFE..NSP90..FRP..6F200811-201006

12V 1.6KW

sub28100-0Y021

main28100-0Y021i1NRFE..NSP90..FRP..6F201007-201012

12V 1.6KW

sub28100-0Y022

main28100-0Y022i1NRFE..NSP90..FRP..6F201101

12V 1.6KW

90119W0096

main90119-W0096

9017908204

main90179-08204

3 parts on this diagram · 12 diagrams in section
