EXHAUST PIPE

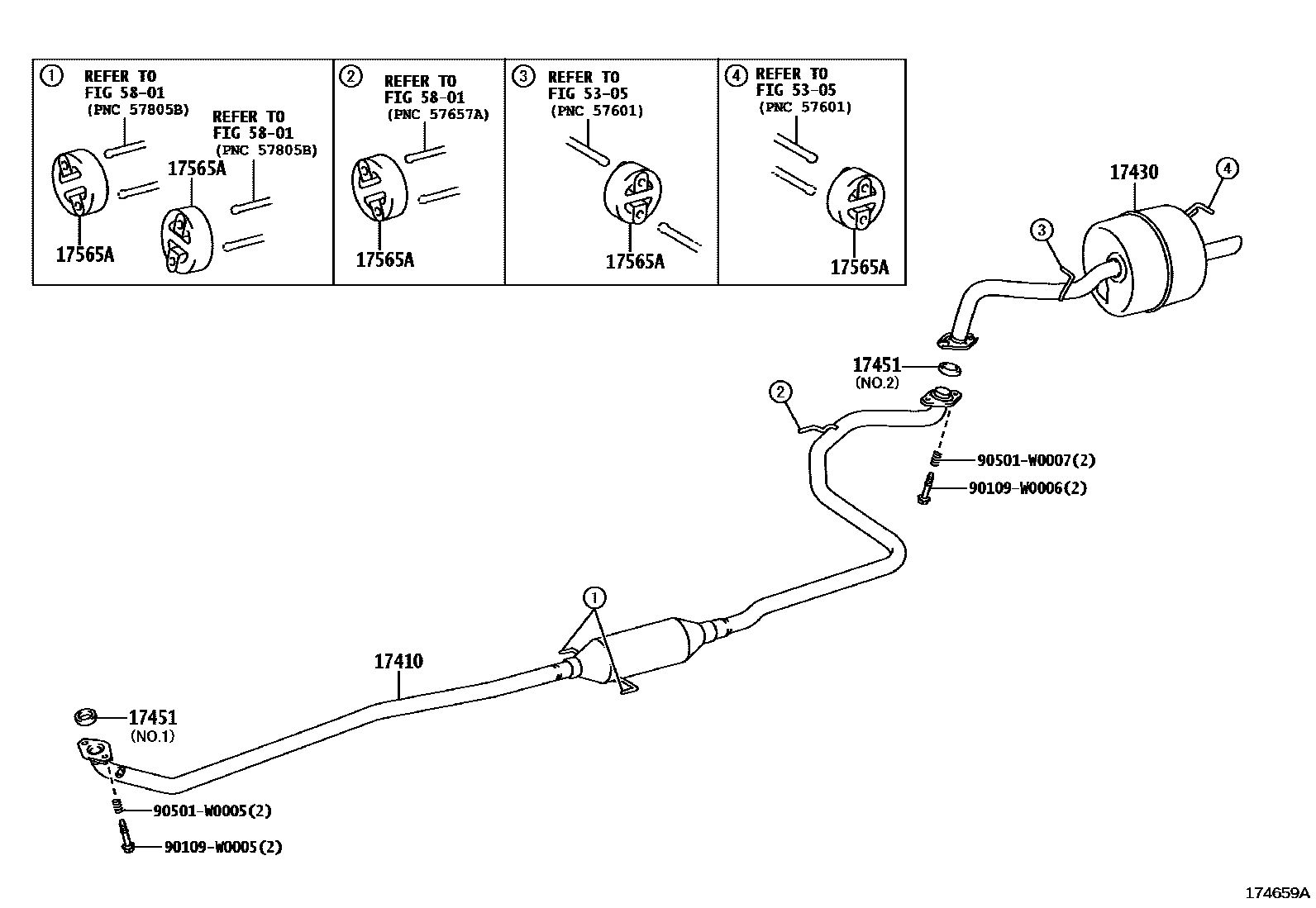

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-0J050i200511-200811
*114=TOYOTA/CA9CB1/Y
main17410-0N040i200511-200706
*114=TOYOTA/GF2GF3/Y
sub17410-0N041
main17410-0N041i200707-200811
*114=TOYOTA/GF2/Y
main17410-0N070i200811-201107
main17410-0Q020i200511-200706
sub17410-0Q021
main17410-0Q021i200707-200804
sub17410-0Q022
main17410-0Q022i200805-200811
sub17410-0Q030
main17410-0Q030i200811-201107
sub17410-0Q031
main17410-0Y010i200811-201007
*114=TOYOTA/CC6/Y,TYPE A:REFER ILLUST.
main17410-0Y130i201007-201107
*114=TOYOTA/CE8/Y,RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT),TYPE A:REFER ILLUST.
main17410-0Y130i201007-201107
*114=TOYOTA/CE8/Y,TYPE A:REFER ILLUST.
17430PIPE ASSY, EXHAUST, TAIL
main17430-0J030i200511-200811
main17430-0N031i200511-200703
sub17430-0N032
main17430-0N032i200704-200811
main17430-0N060i200811
main17430-0Q020i200511-200811
main17430-0Y010i200811
17451GASKET, EXHAUST PIPE
main17451-0J020i200511-200806
NO.2
sub17451-0J021
main17451-0J021i200807-201102
NO.2
sub17451-0J022
main17451-0J022i201103
NO.2
main17451-0J030i200511-200811
NO.1
main17451-0Q010i200511-200811
NO.1
main17451-0Q020i200511-200706
NO.2
sub17451-40031
main17451-0Q021i200806-201102
NO.2
sub17451-0Q022
main17451-0Q022i201103
NO.2
main17451-0R010i200511-200811
NO.1
main17451-40031i200707-200805
NO.2
sub17451-40032
main90917-06082i200511-200811
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0Q010i200511-200811
5305
5801
90109W0005
main90109-W0005
90109W0006
main90109-W0006
90501W0005
main90501-W0005
90501W0007
main90501-W0007

10 parts on this diagram · 4 diagrams in section
